Tekin RS Gen3 Sensored Brushless ESC TT1156

Tekin RS Gen3 Sensored Brushless ESC TT1156

part#

TEKTT1156

Regular price$179.99
/

Free Shipping on orders of $150 or more!


  • In stock, ready to ship
  • Inventory on the way
Only 0 items in stock!

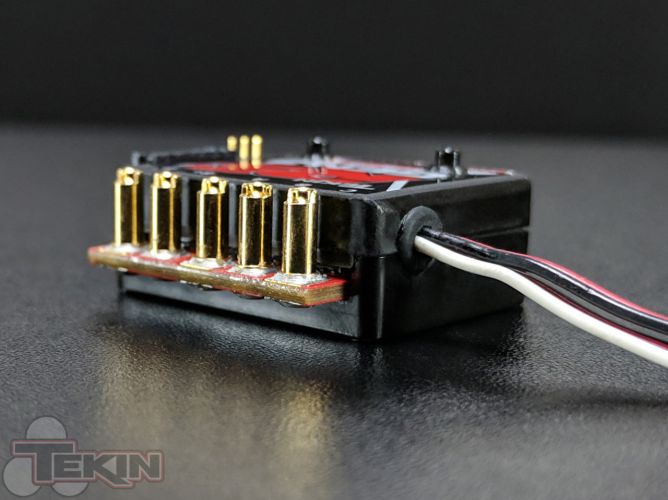

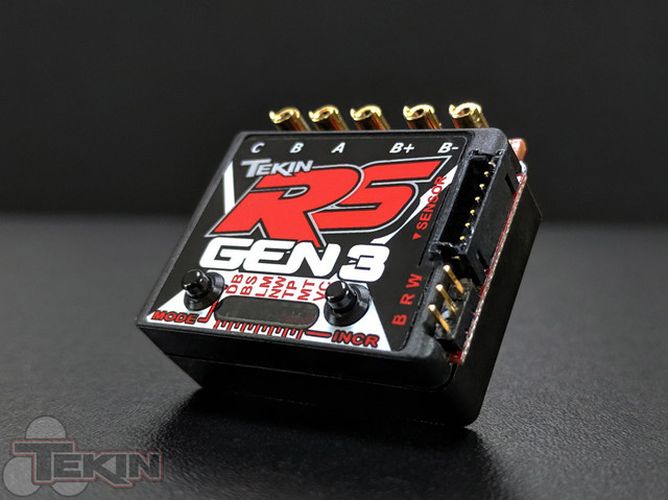

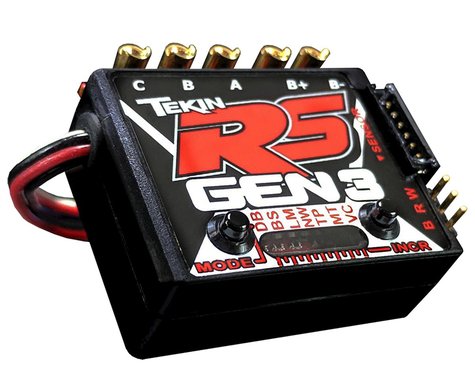

Tekin RS Gen3 Sensored Brushless ESC TEKTT1156

The Tekin RS Gen3 Sensored Brushless ESC brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!

Features:
  • QuickTune™ One Touch Programming
  • New HD Solder Post Design
  • 3rd Channel Input for On-The-Fly Drag Brake Adjustments
  • Adjustable Torque Control *
  • Adjustable Throttle and Brake Frequencies *
  • High Voltage Programmable BEC *
  • HotWire™ Programming Port *
  • Data Logging Capability *
  • Sensor Checker
  • On-Board Temperature Indicator
  • ESC Self Diagnostics with Error Codes
  • Fully Proportional Forward/Brake/Reverse
  • Brushless and Brushed Motor Drive
  • Sensored or Sensorless Operation
  • LiPo Safe with Custom Voltage Cutoffs
  • Sensor Plug for Precise Commutation
  • Lightweight Chassis Design
  • HDAC: High Density Copper PCB's
  • Ultra-smooth and Precise Throttle and Braking Control

*NOTE: Requires HotWire™ sold separately.

Specifications:

Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode: 2S - 8.5T 2-pole 36mm Can, 3S - 10.5T 2-pole 36mm Can
Motor Limit Brushed Mode: 2S - 10T 36mm Can, 3S - 20T 36mm Can
Max Current: 140amps per phase*
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .51" / 24.5 x 34 x 12.9mm
Weight: .83oz / 23.5g
