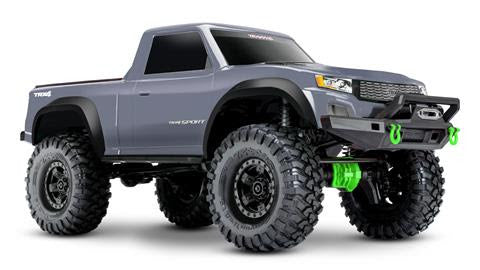

Name: TRX-4 Sport with Clipless Body Traxxas #82224-4
Brand: TRAXXAS
SKU: TRA82224-4-BLUE
Price: 359.95 USD
Availability: OutOfStock
Rating: 4.5 (2 reviews)

TRX-4 Sport with Clipless Body Traxxas #82224-4

$359.95

Free standard shipping on all orders over $25!

Color

Blue

Red

Tan

Gray

Quantity

In stock, ready to ship
Inventory on the way

TRX-4 Sport Clipless Traxxas #82224-4

The Traxxas TRX-4^® Sport now features clipless body mounting for total convenience

Tough, Clipless Pickup Truck Body
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Low profile bumpers for increased clearance
- Red differential covers and D-rings
Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set^® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
Titan^® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case

Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
Wheels and Tires
- Rugged black 5-spoke wheels
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

Model Specs

Model Name:	TRX-4 Sport Clipless
Model Type:	Trail / Crawler
Model Skill Level:	1
Scale:	1/10
Weight:	5.79 pounds (2.63 kg)
Length:	21.93 inches (557 mm)
Width:	9.78 inches (249 mm)
Front Track:	9.78 inches (249 mm)
Rear Track:	9.78 inches (249 mm)
Height:	9.47 inches (241 mm)

Wheelbase:	12.28 inches (312 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Spool (no differential)
Gear Pitch:	32 pitch
Servo(s):	2075X metal gear, digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

Motor Specs

Motor Name:	Titan® 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC Specs

ESC Name:	XL-5™ HV
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.60 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge
