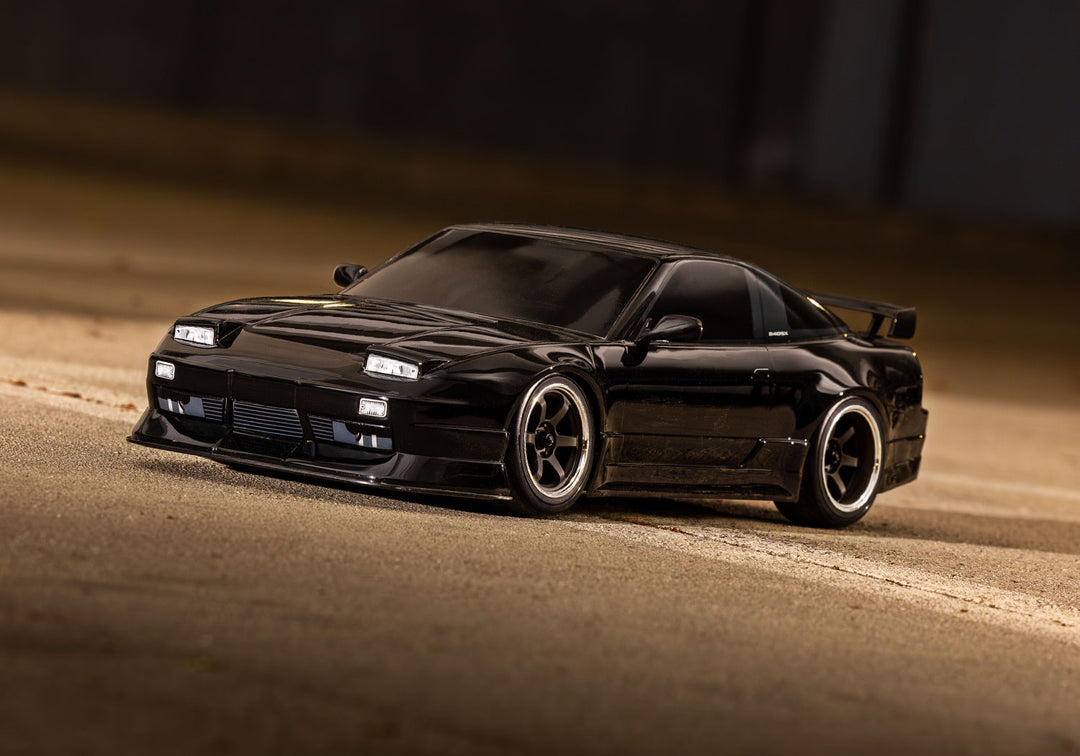

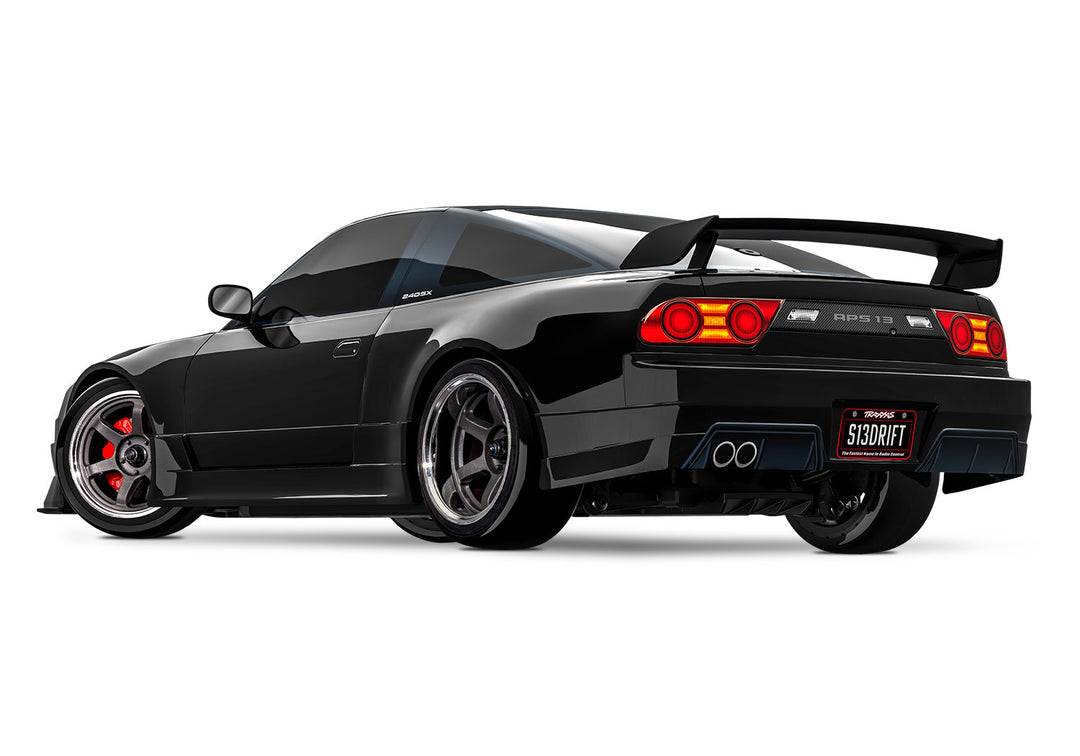

4-Tec Drift Nissan 240SX Traxxas 105247-4 in-store pickup only, December 19 - In-Store Official On-Sale Date

What’s In The Box:

• 4-Tec Drift with XL-5 ESC and Titan Drift motor
• TQi™ 2.4 GHz radio with Wireless Module
• Front and rear soft-compound tires
• Optional High-Angle Steering Kit
• High quality maintenance tools

What You’ll Need:

• Batteries

  4-Tec Drift requires a single NiMH or 2-cell LiPo battery.

• Charger

  Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.

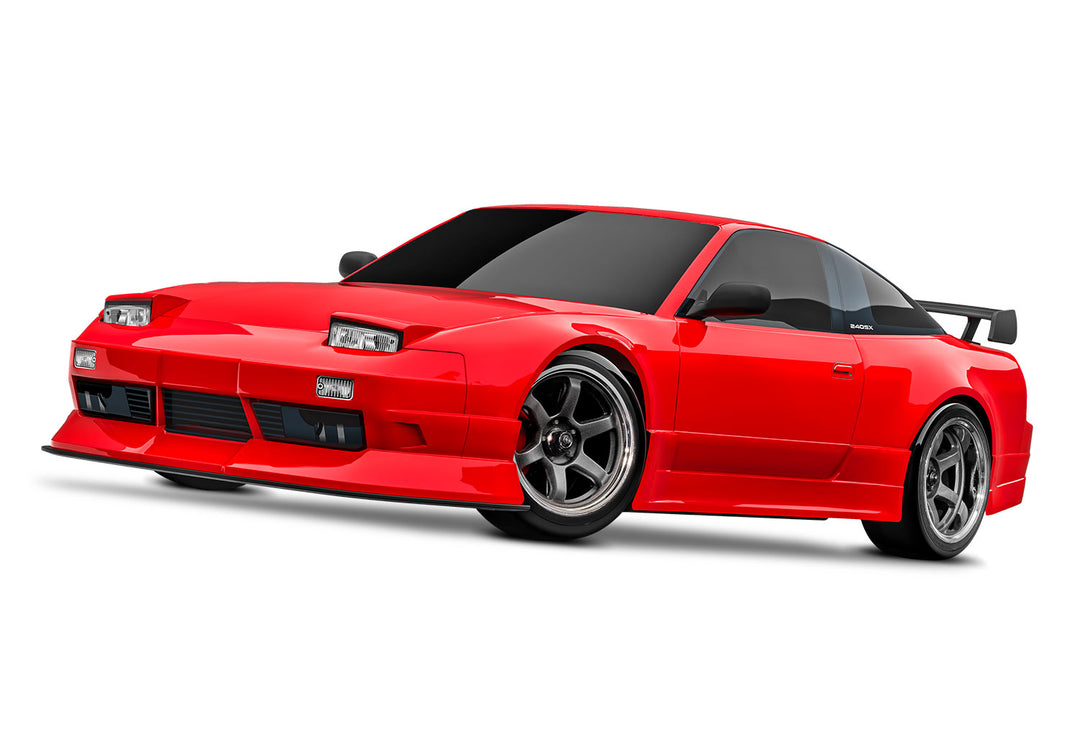

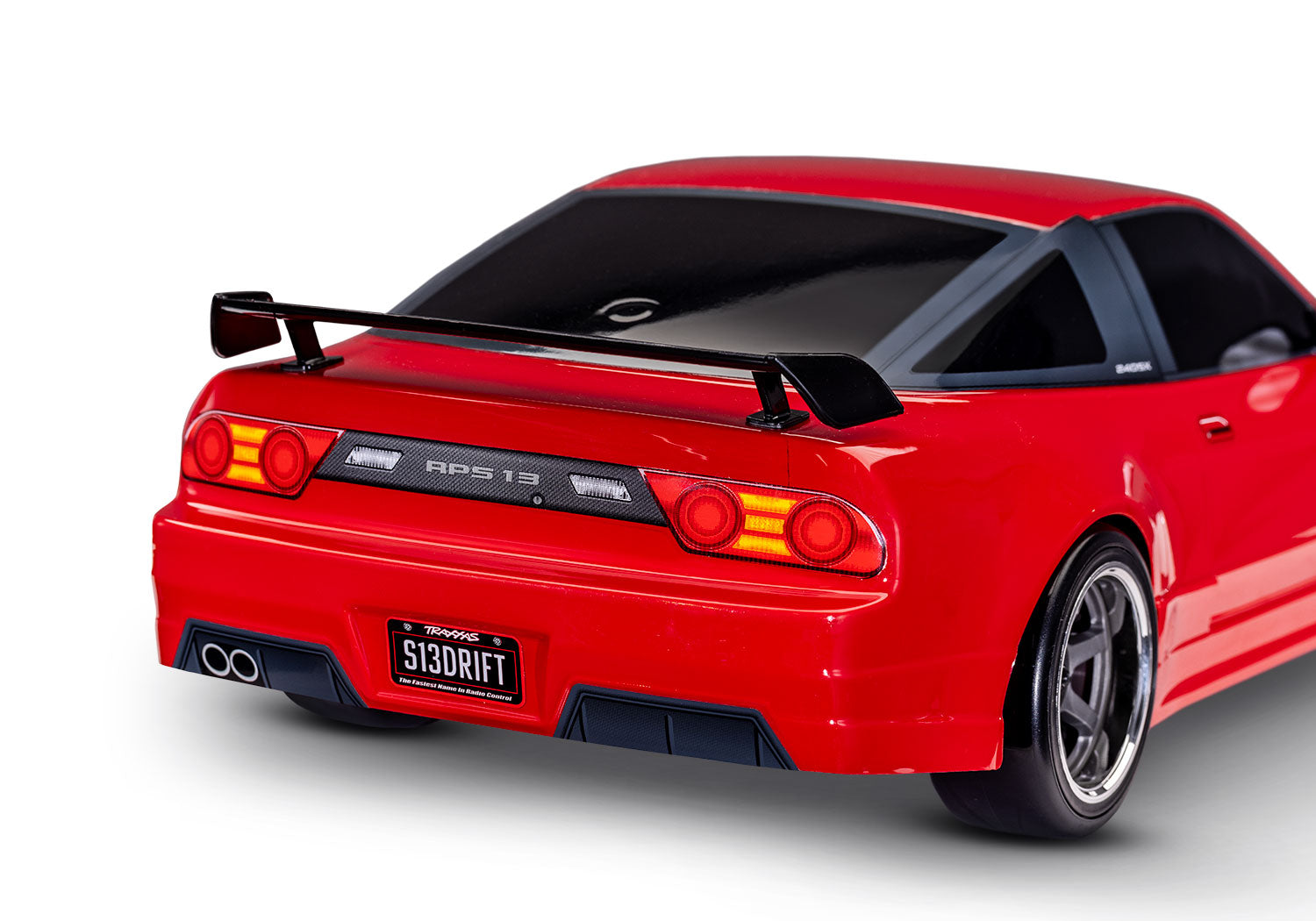

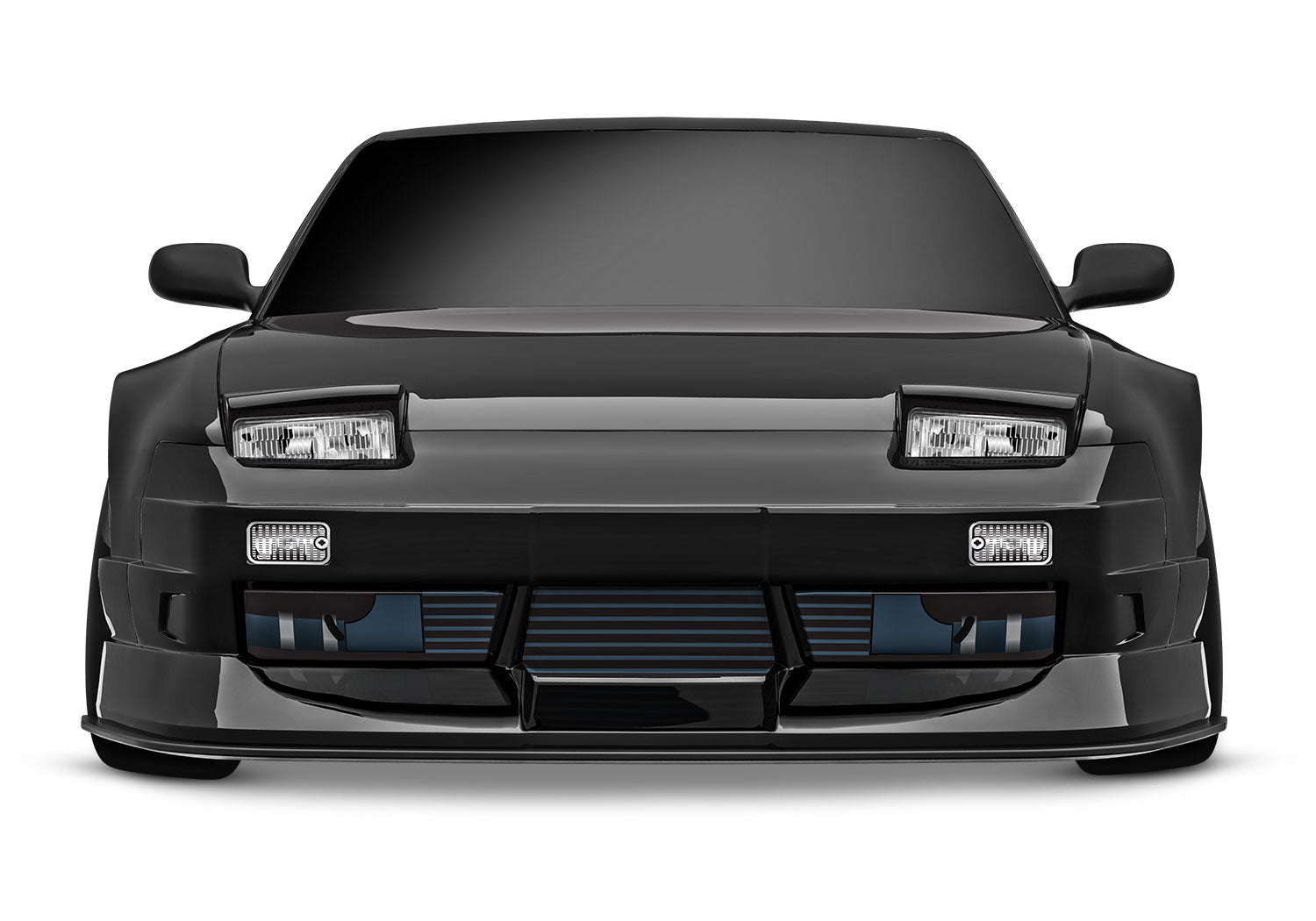

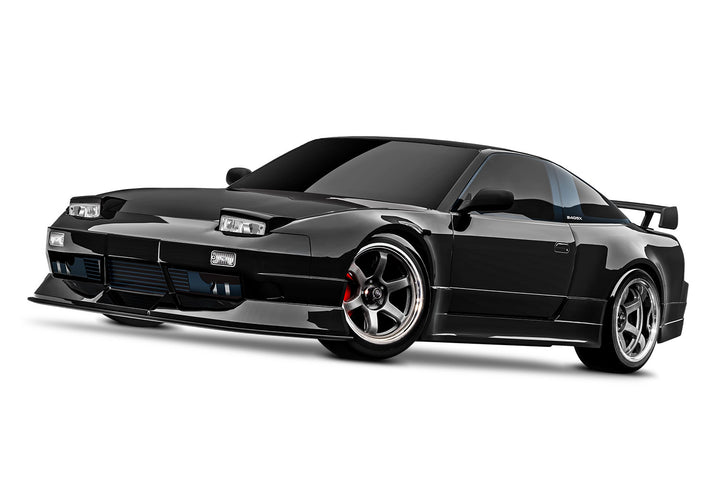

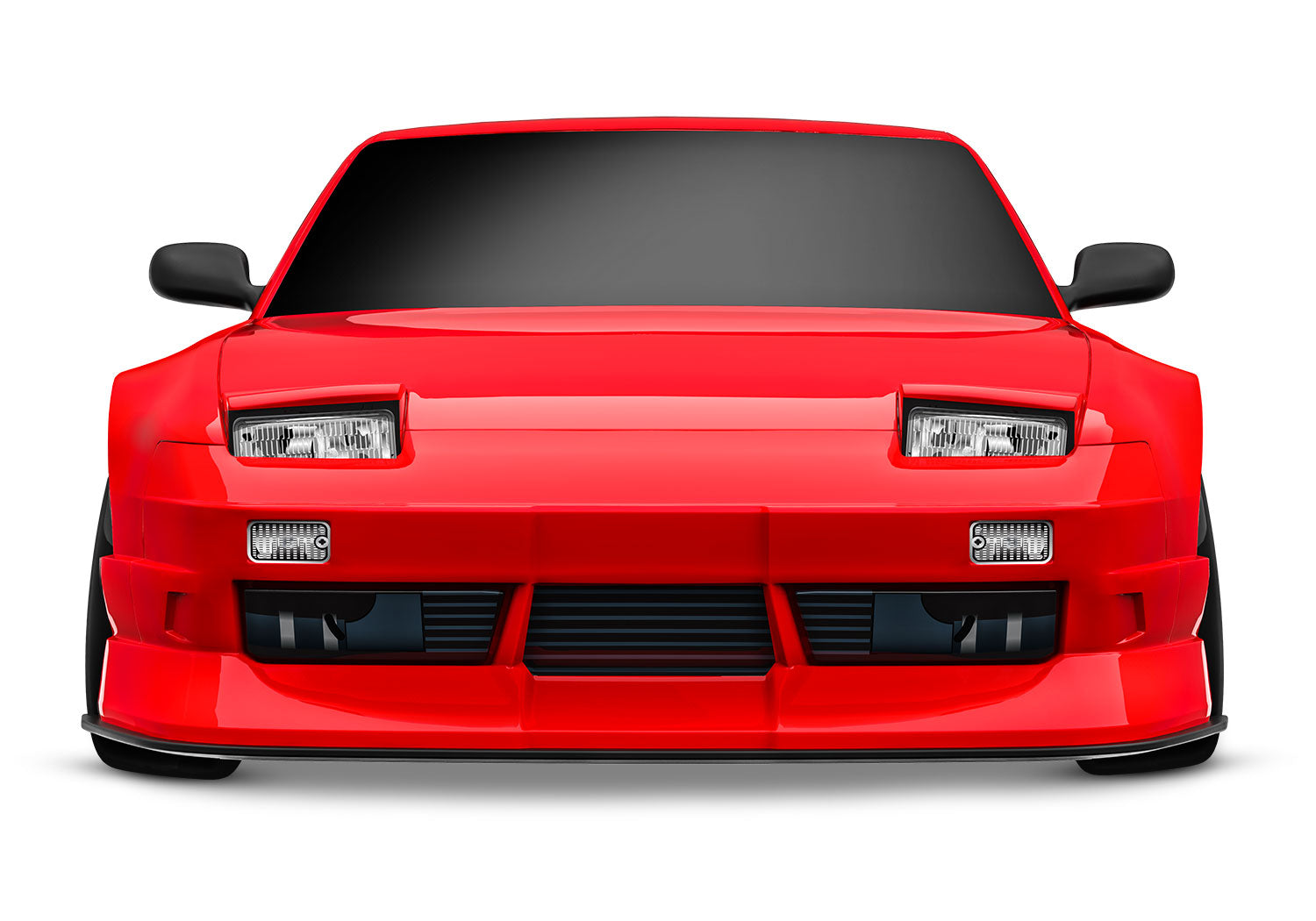

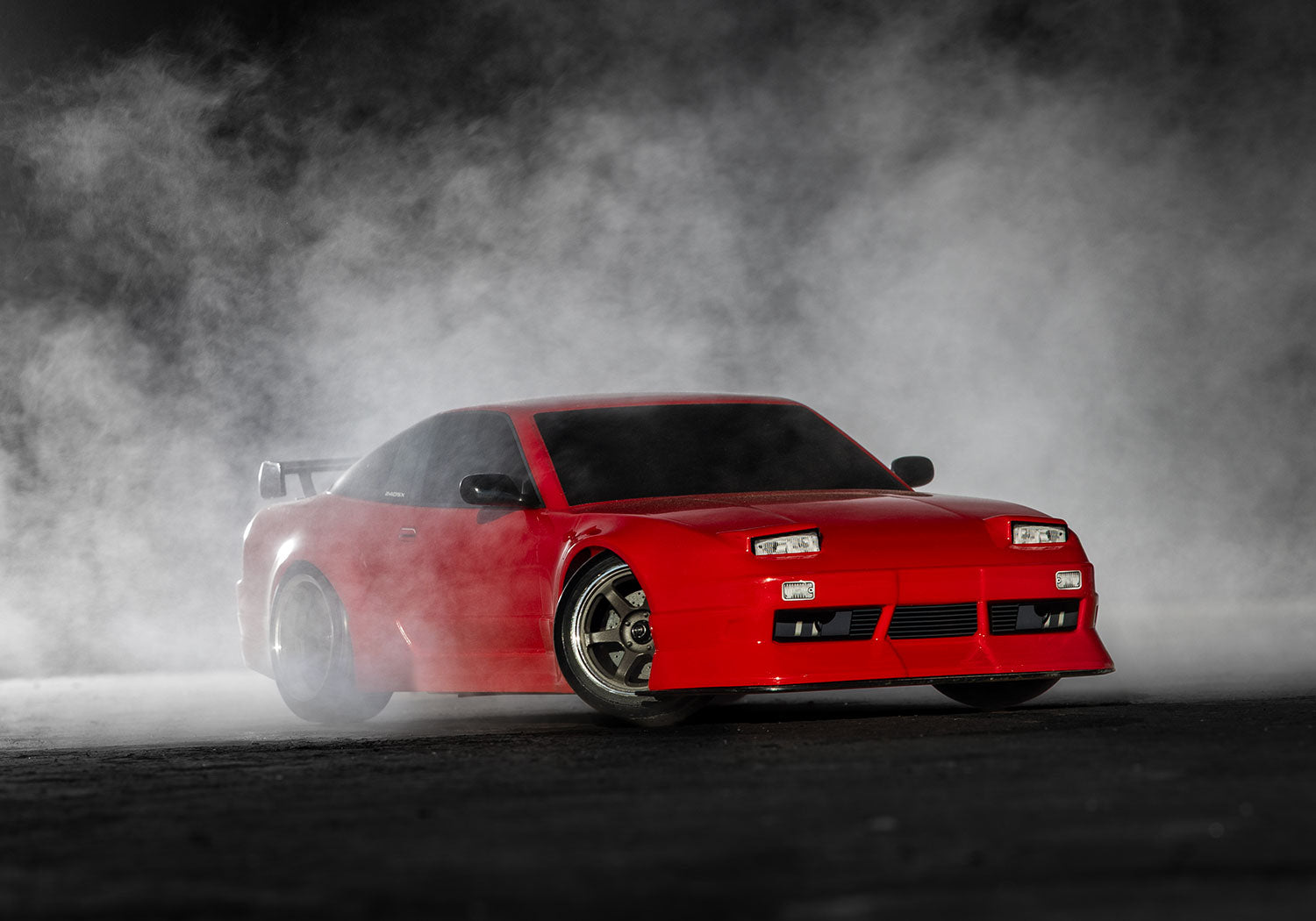

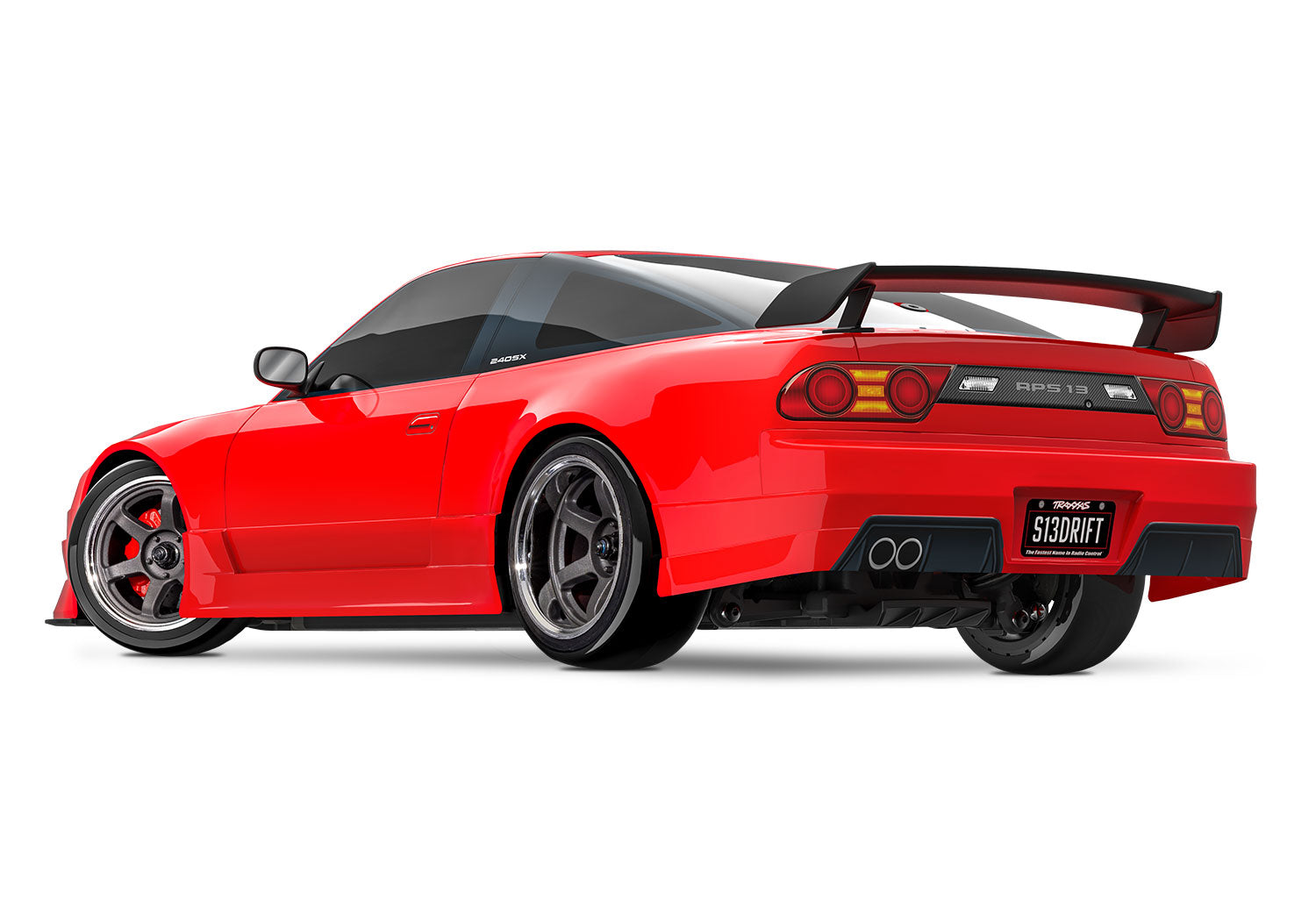

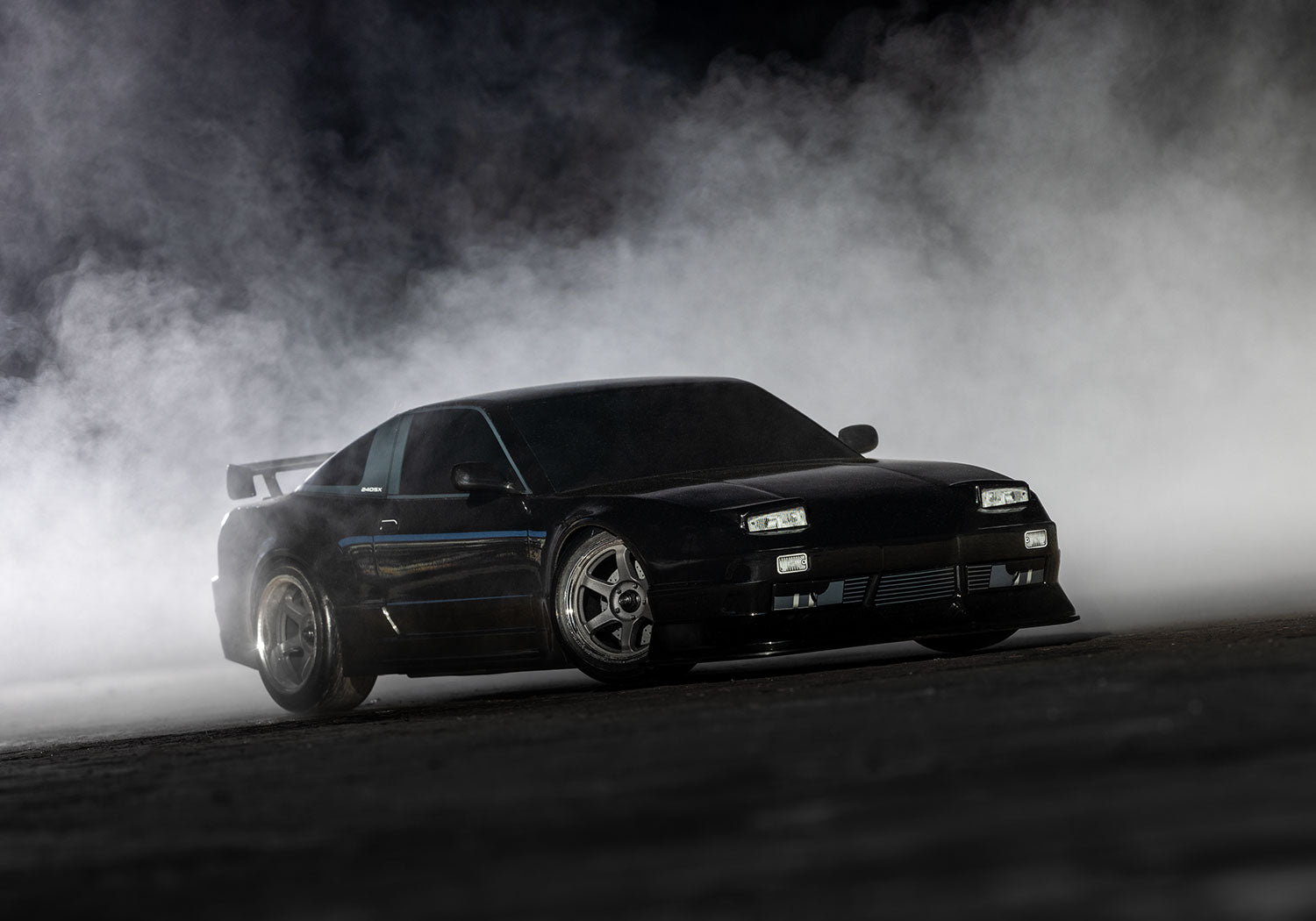

• Officially Licensed Nissan^® 240SX Body
• Clipless body eliminates body post holes
• Injection molded details

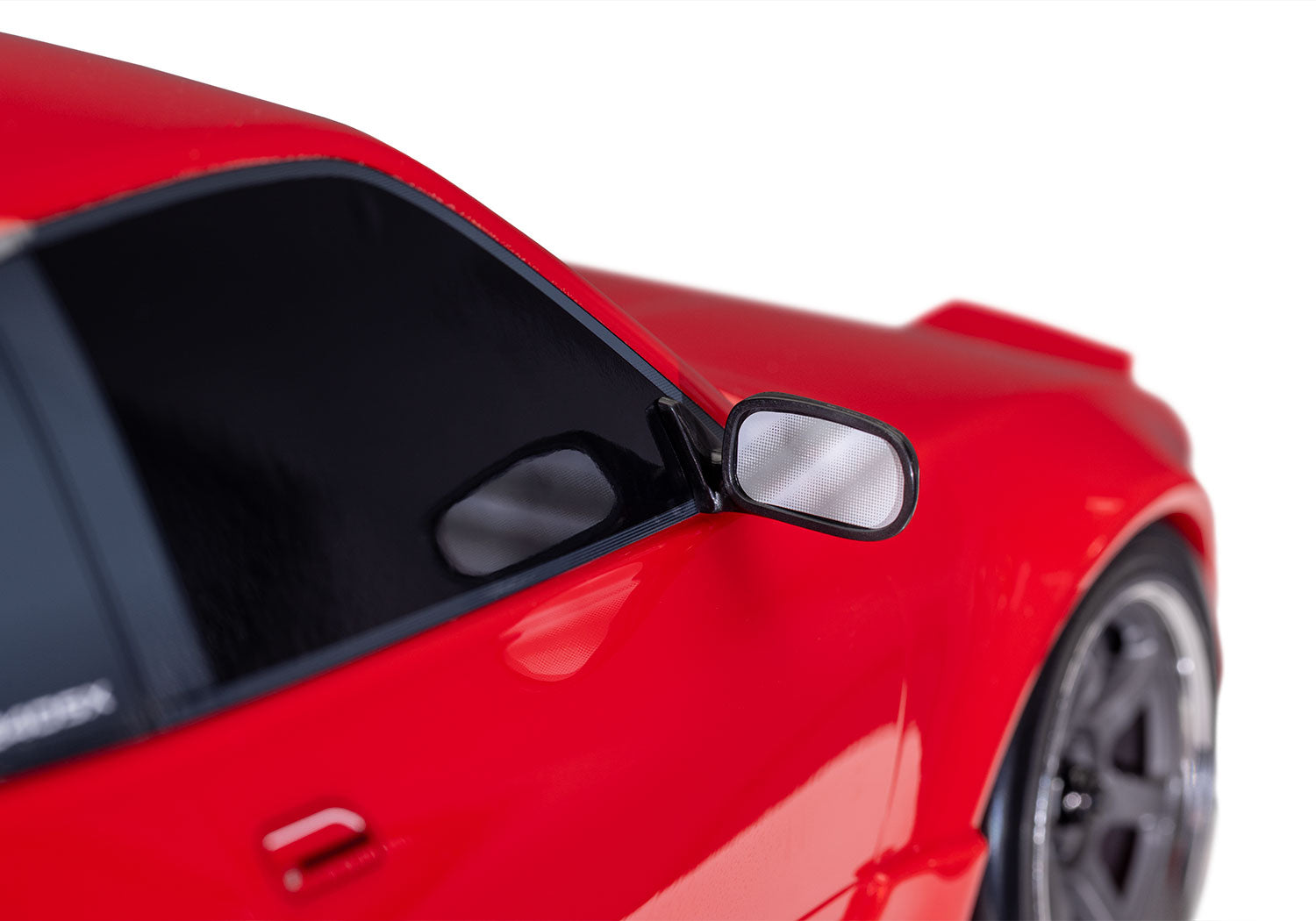

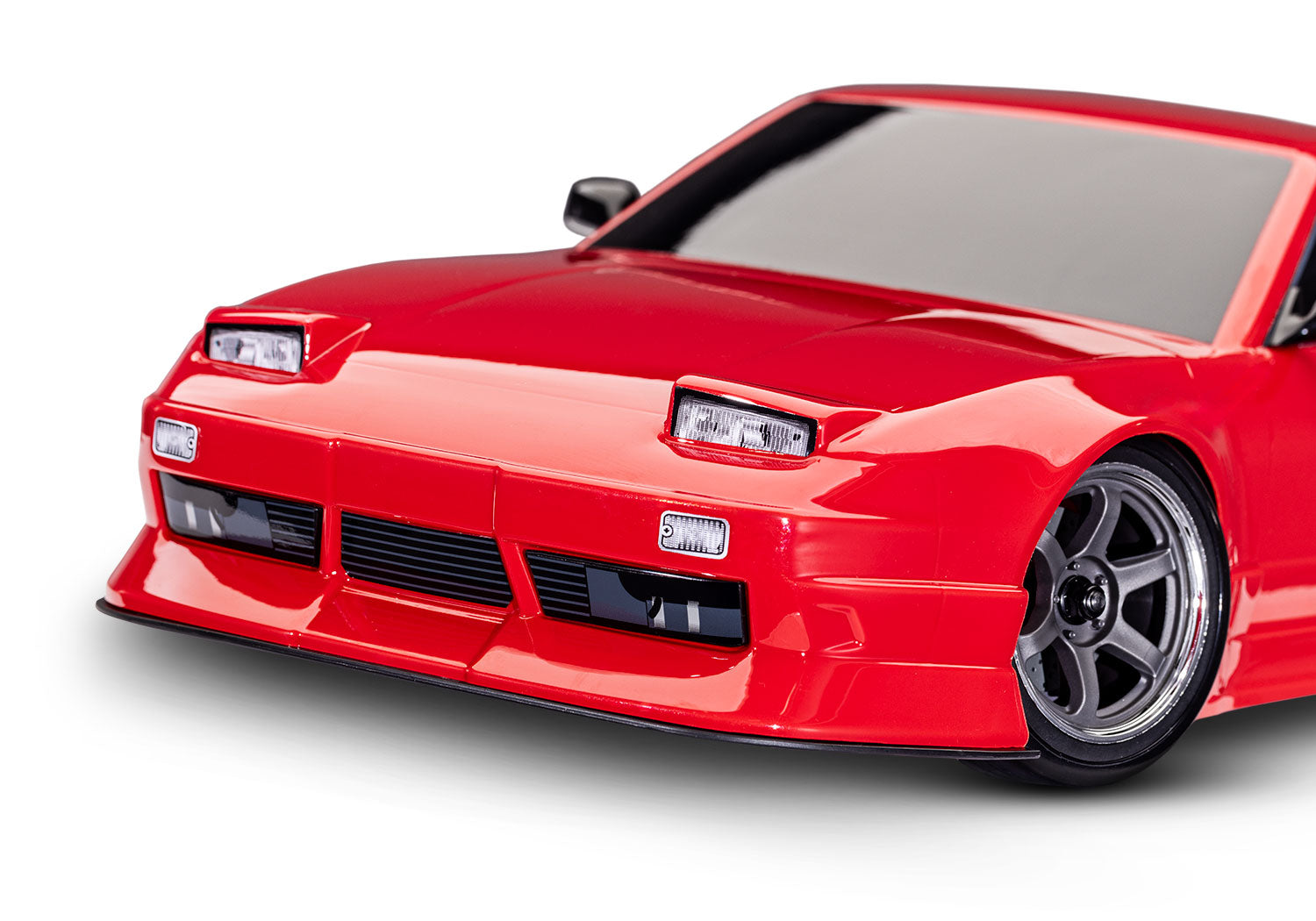

• Grille, splitter, side mirrors, and spoiler
• Replica brake discs with red calipers
• Clipless Body Mounts
• Quick and easy removal of the body
• Reinforced body mounts integrated into molded details

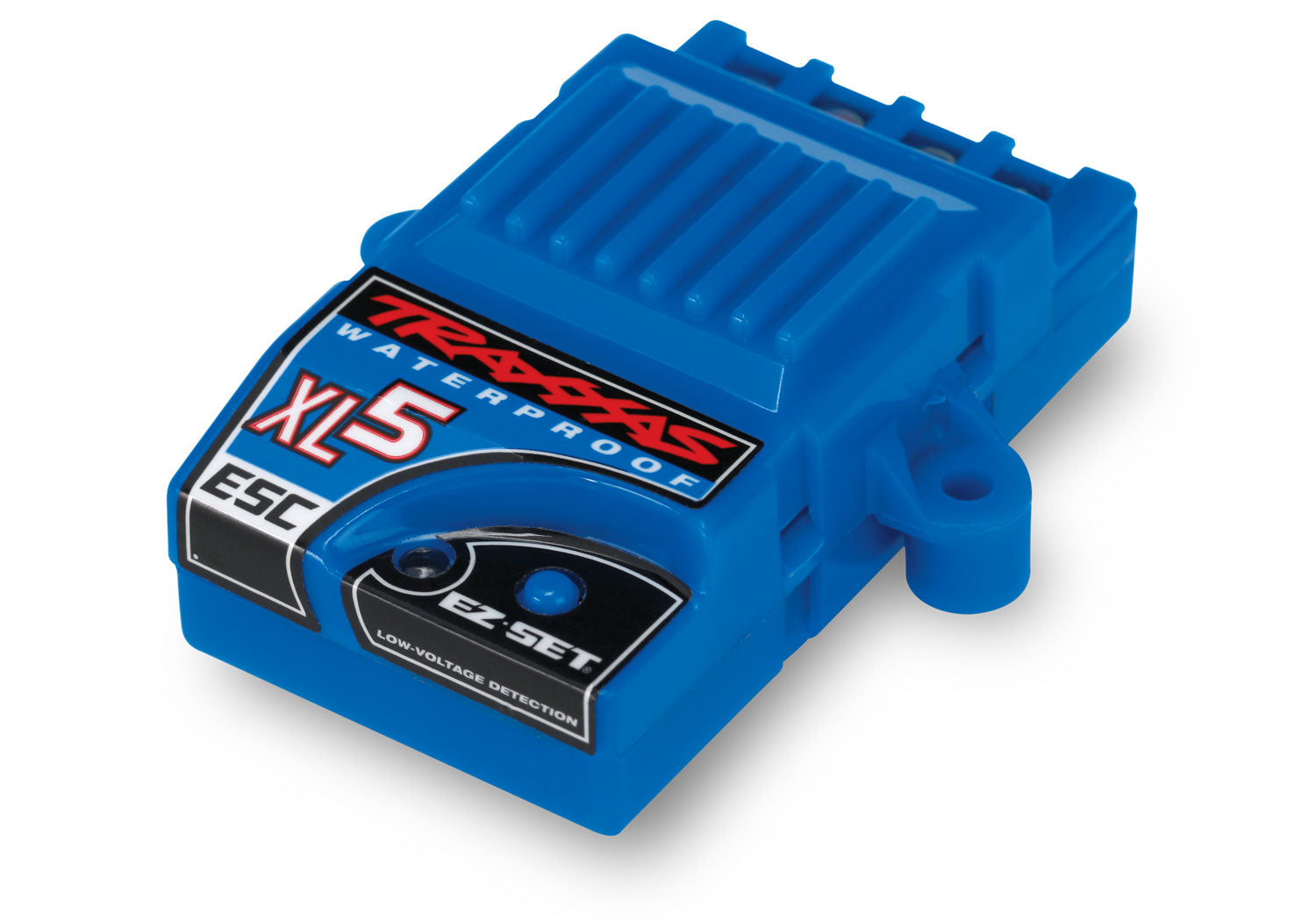

• High-Performance Waterproof XL-5™ Electronic Speed Control
• Innovative waterproof design
• Three drive profiles
• Sport Mode - forward / brake / reverse
• Race Mode - forward / brake
• Training Mode™ - 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set^® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection

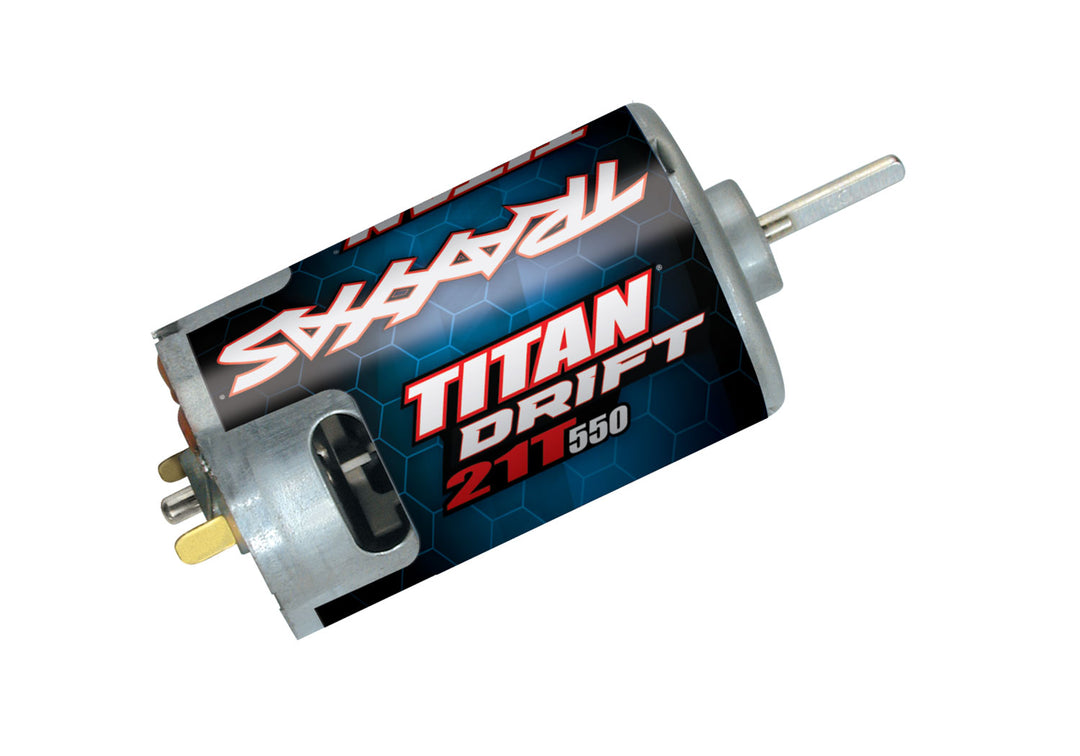

• Titan^® Drift Motor
• 21-turn brushed 550 motor
• Internal cooling fan
• Virtually maintenance-free operation
• Fixed gear mesh motor plate

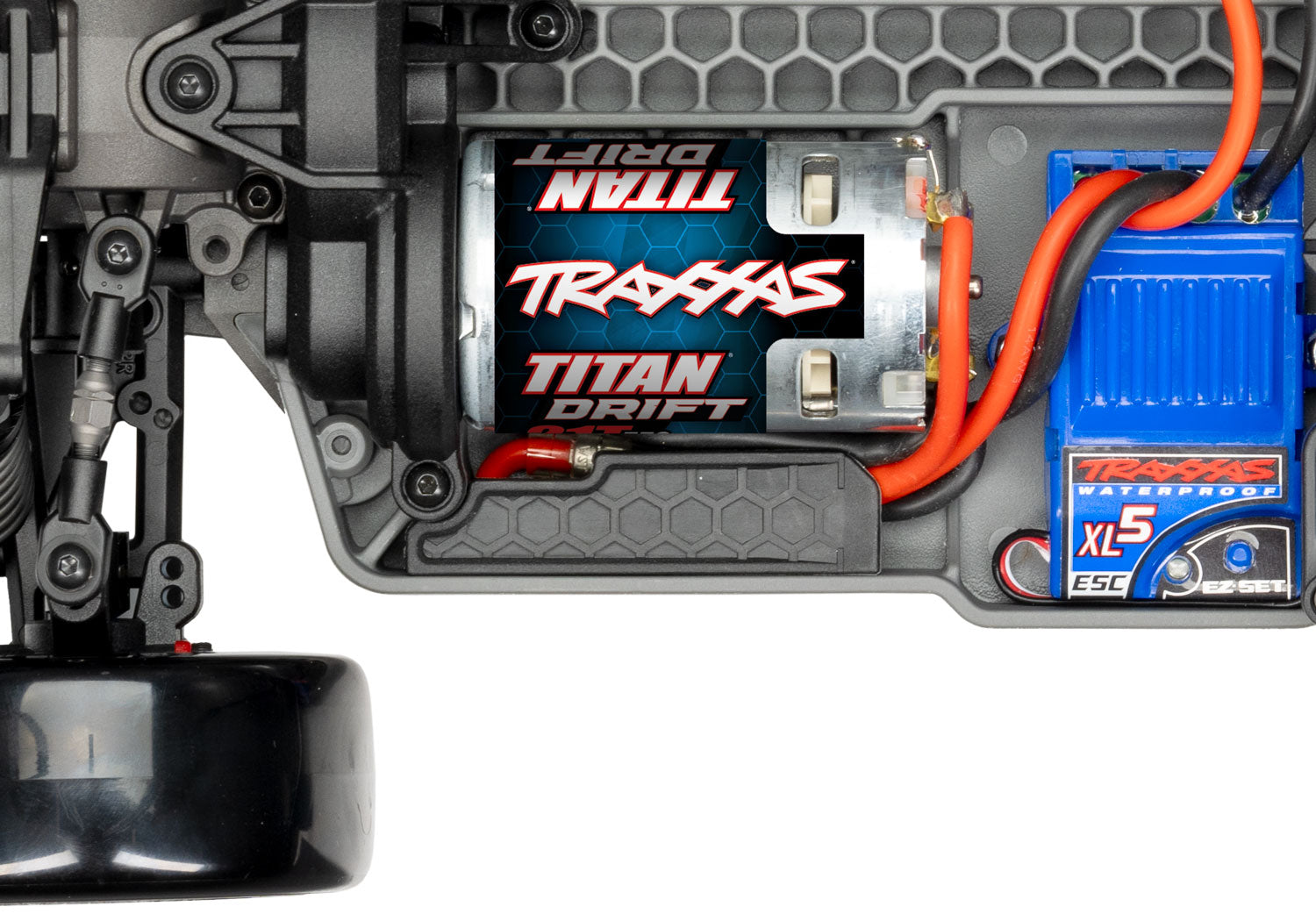

• Molded wire retainer keeps motor wires secure

• TQi™ 2.4 GHz Radio System with Wireless Module
• TQi 3-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Electronic handbrake
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Traxxas Stability Management (TSM)^® with 3 Drift Modes
• TSM Drift Mode
• Adjustable steering angle
• Adjustable steering reflex
• Adjustable throttle reflex
• Spinout assist
• TSM Mode
• Gyro Mode
• Adjusts from off to 100% assistance from the transmitter
• Steering

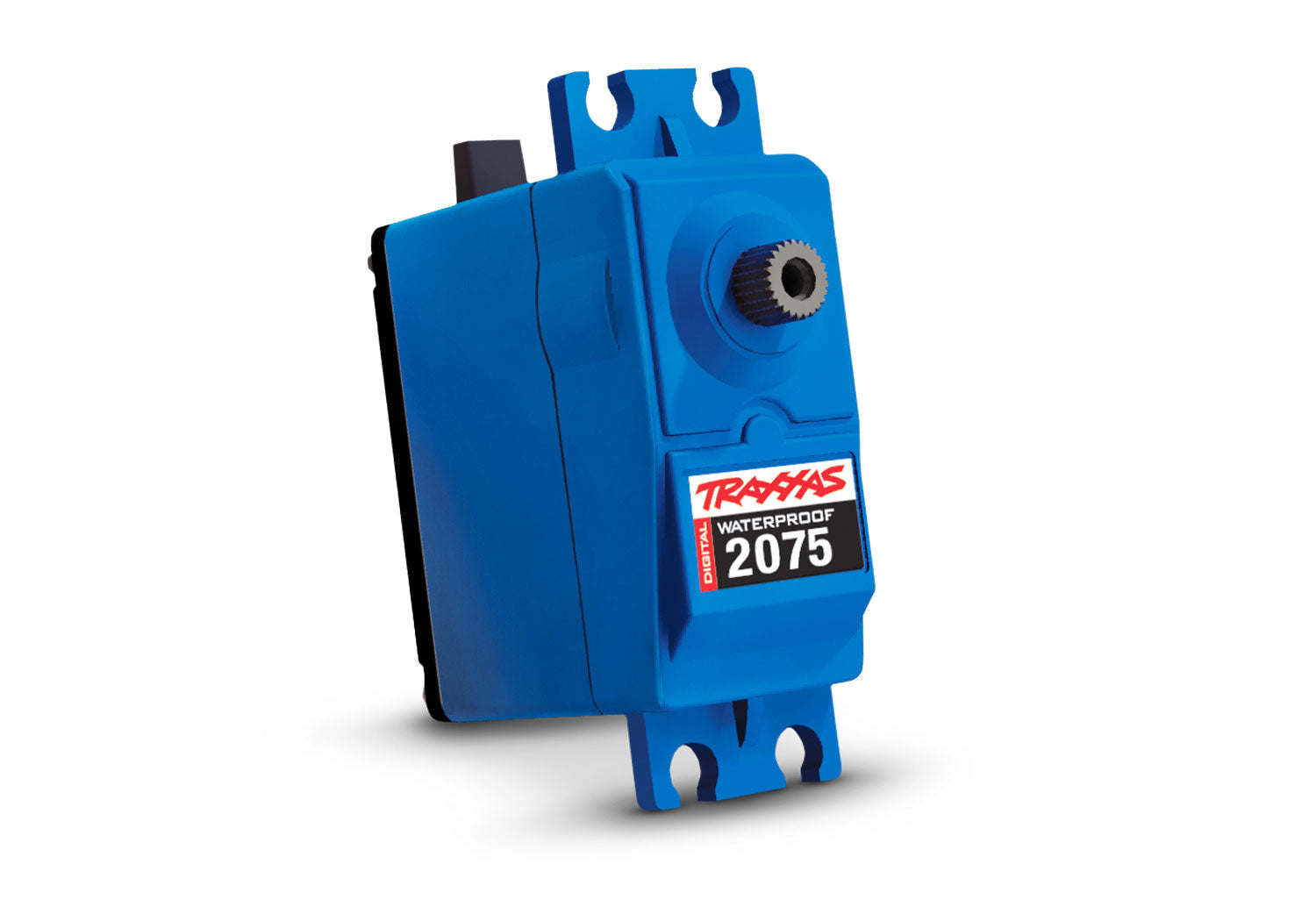

• Digital high-torque ball bearing 2075 servo

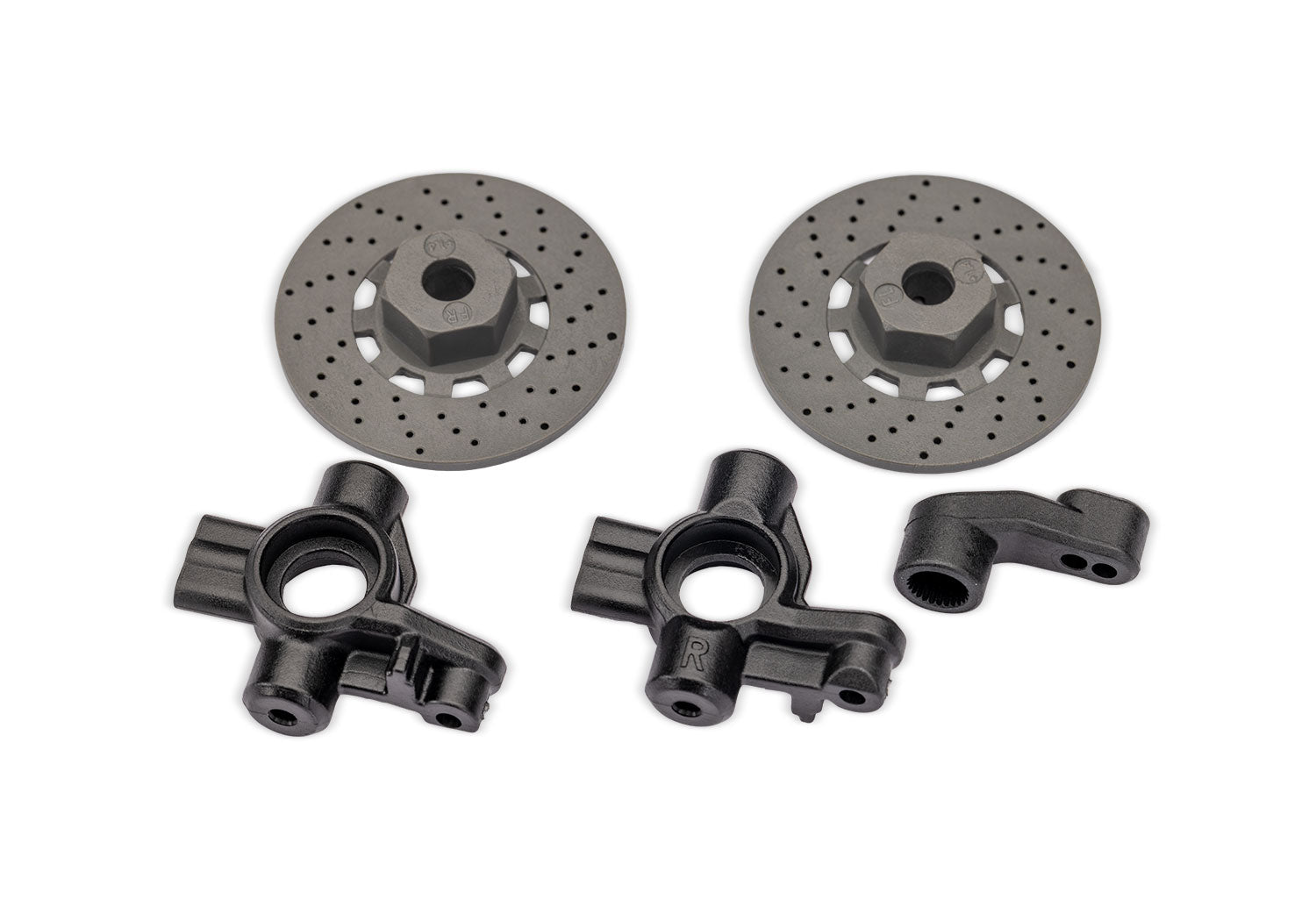

• Optional High-Angle Steering Kit included
• Provides 75° steering angle

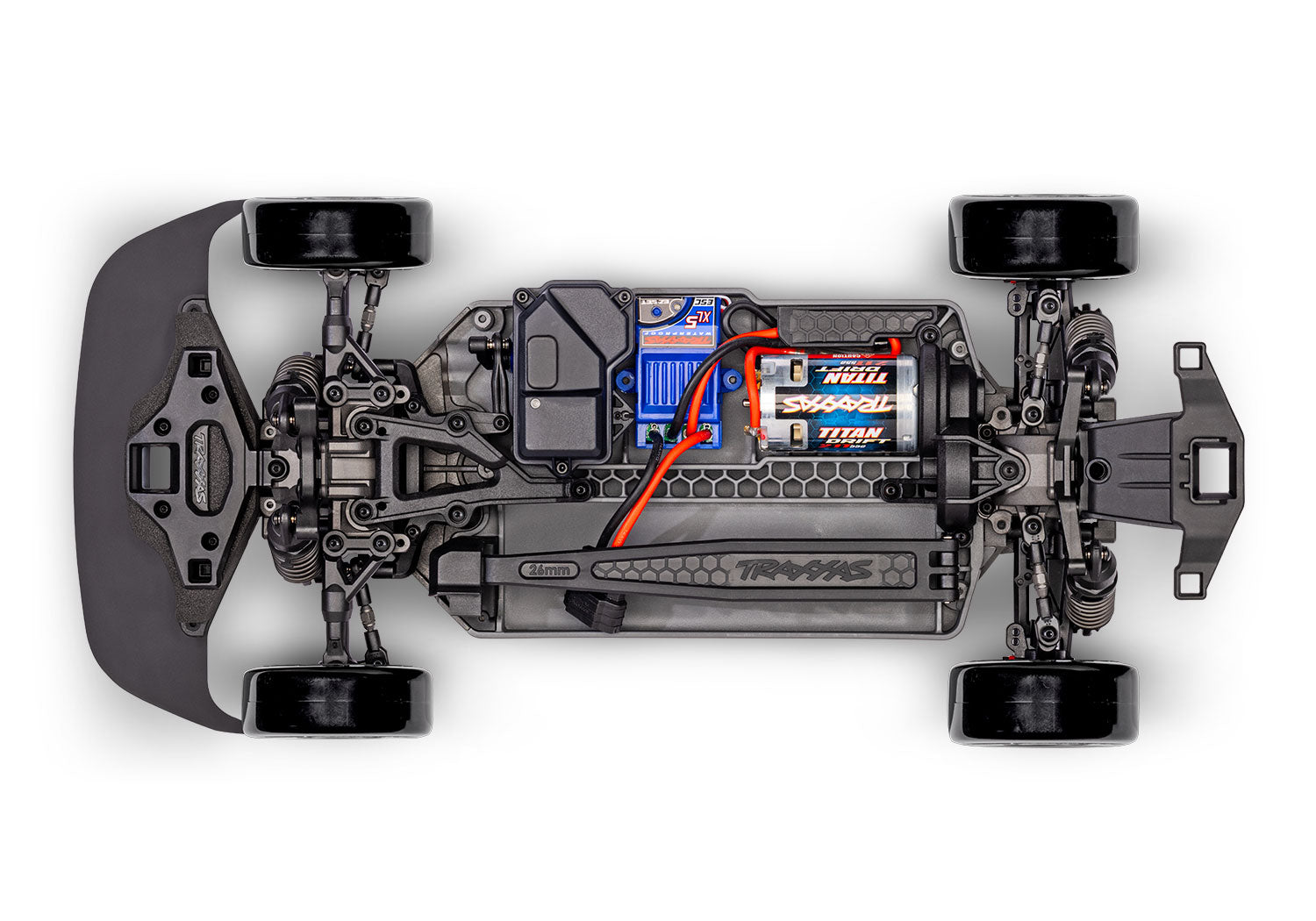

• Low Center of Gravity (Low CG) Chassis
• Positions weight low for improved handling
• Smooth underside resists drag and snags
• Modular interlocking chassis pieces
• Improves rigidity and tightens tolerances
• Allows for easy maintenance

• Adjustable Battery Hold Down
• Easy, secure battery installation
• Swivels to allow different height batteries
• Locks securely without pins or parts to lose

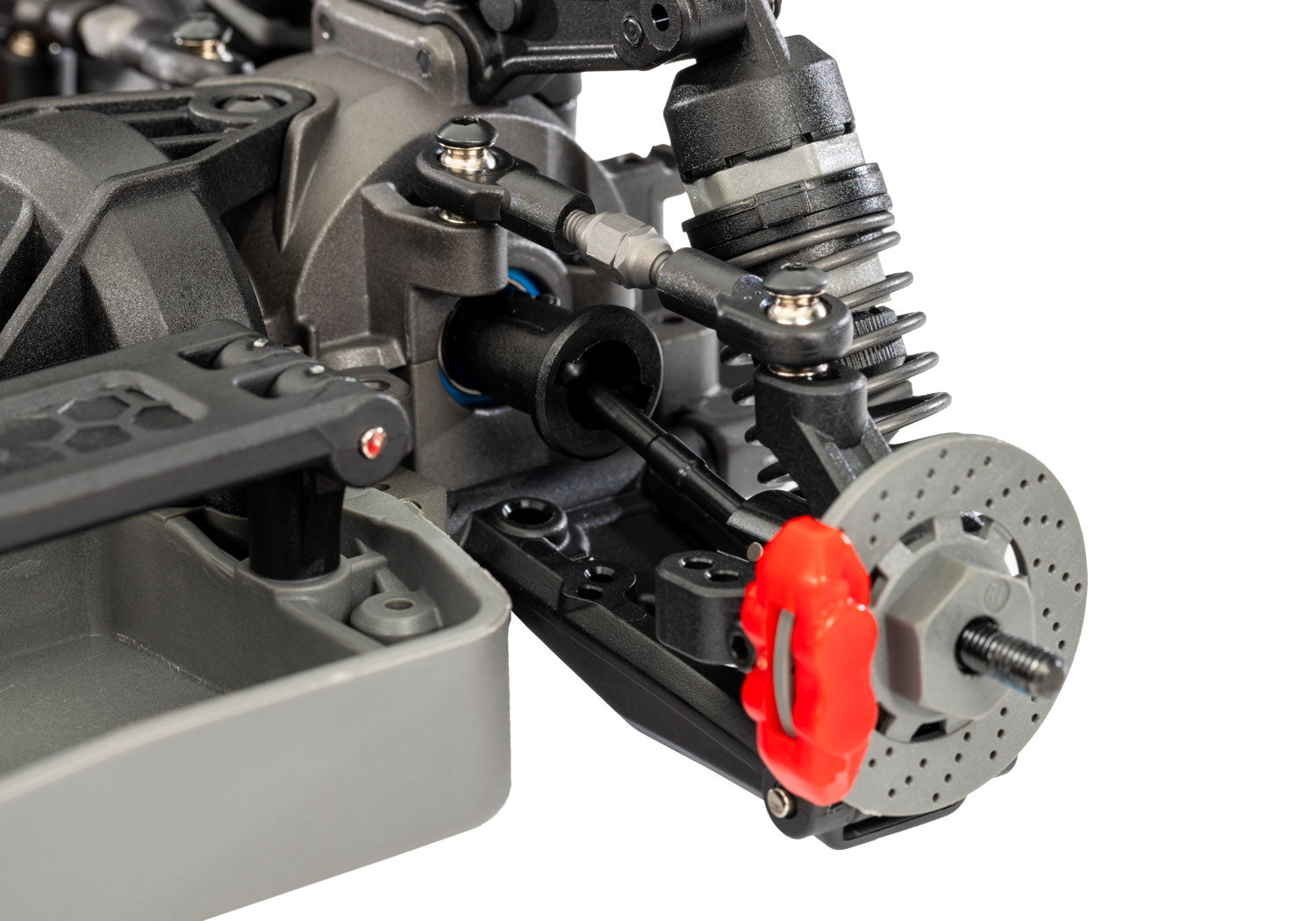

• High Performance Suspension
• Geometry tuned for drifting

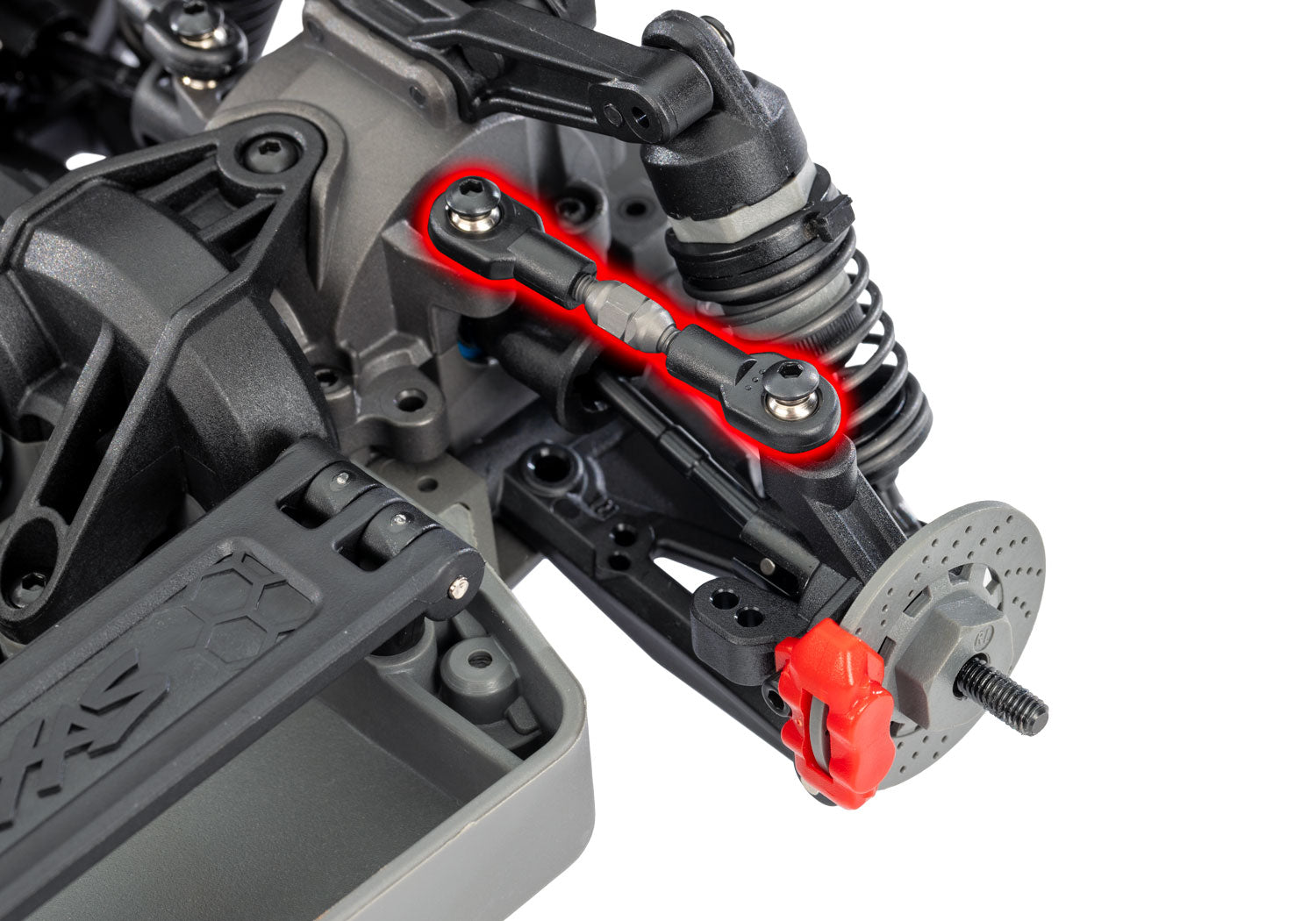

• Dual rear camber link mounts
• Adjustable droop, camber, toe, ackerman, track, & roll center

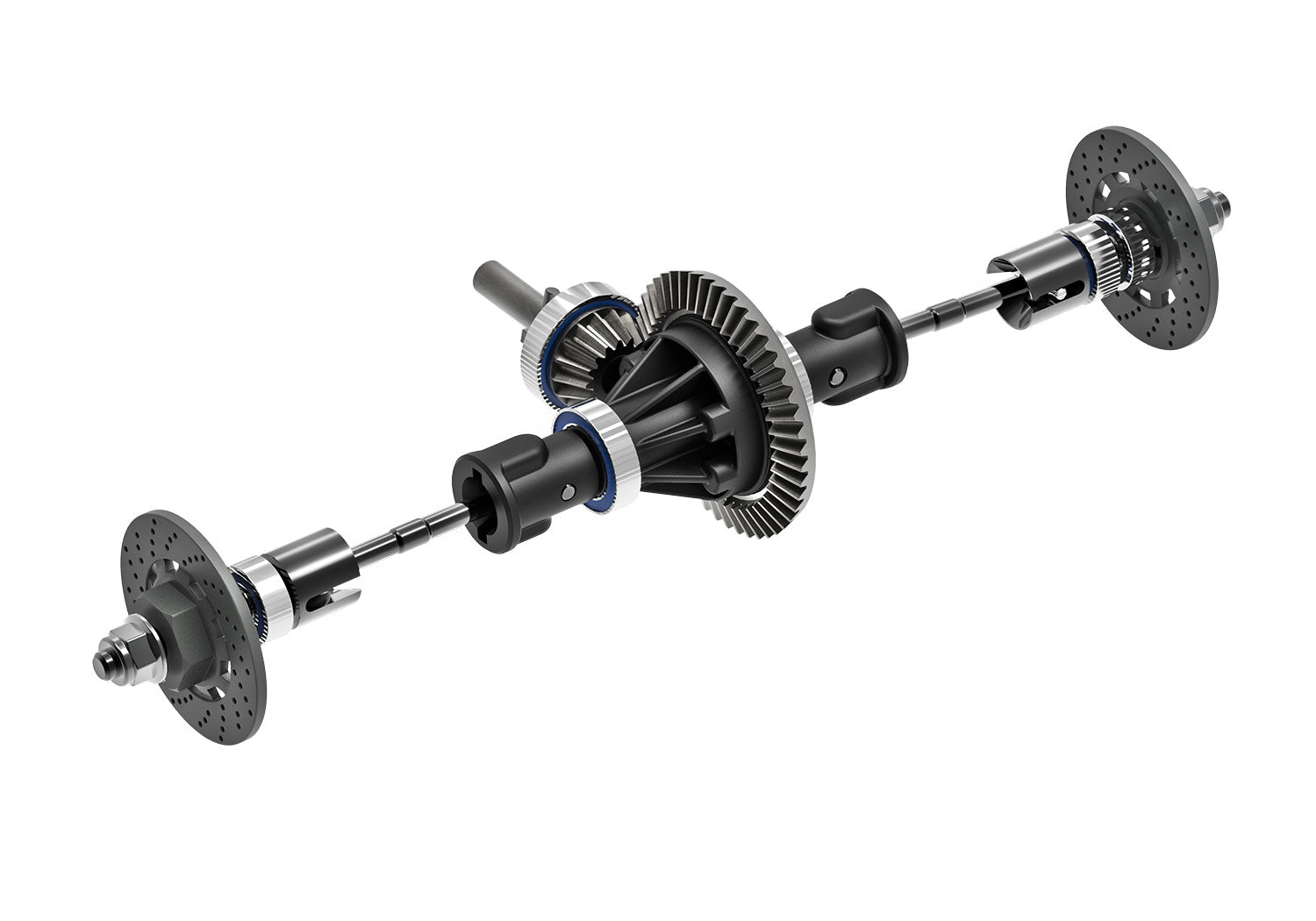

• Rear-Wheel-Drive Layout
• Direct drive, no slipper clutch
• Rear spool with spiral-cut gears
• Smooth and quiet running
• Shocks & Springs

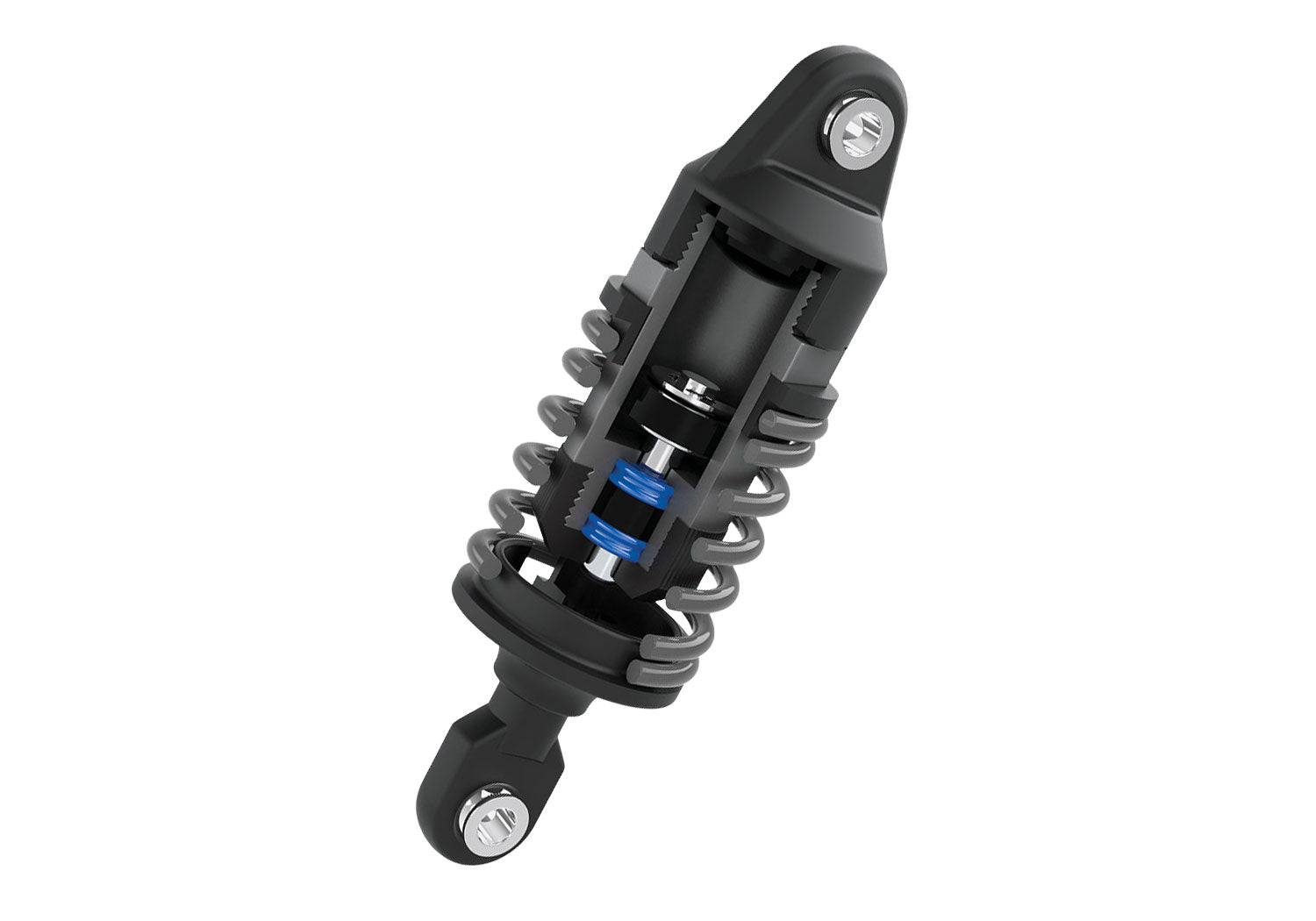

• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• Extra-soft springs to maximize weight transfer

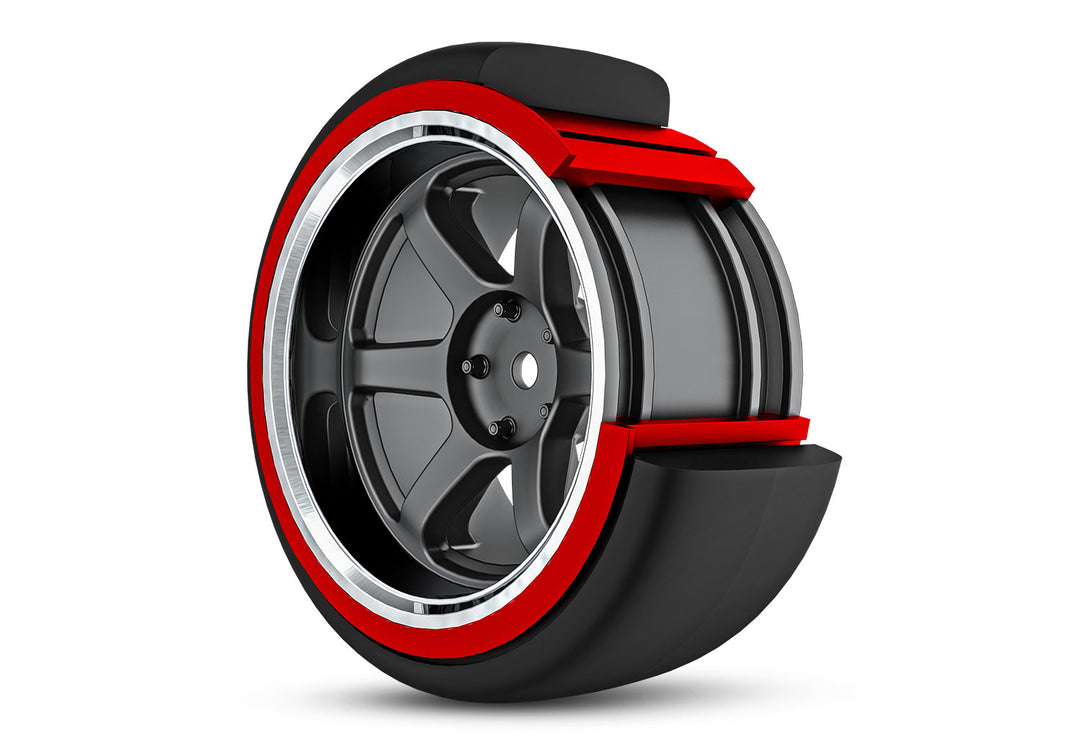

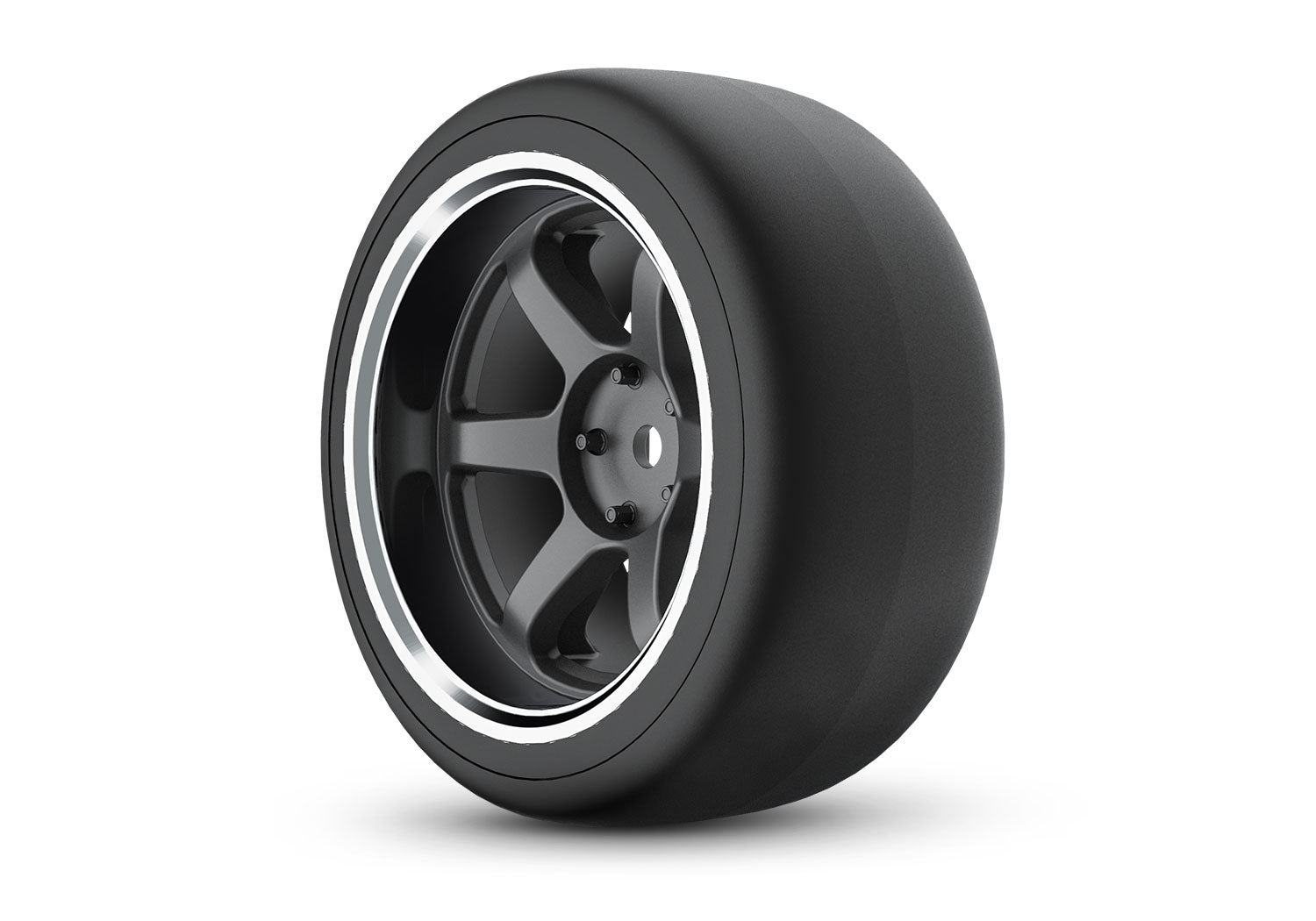

• Wheels & Tires

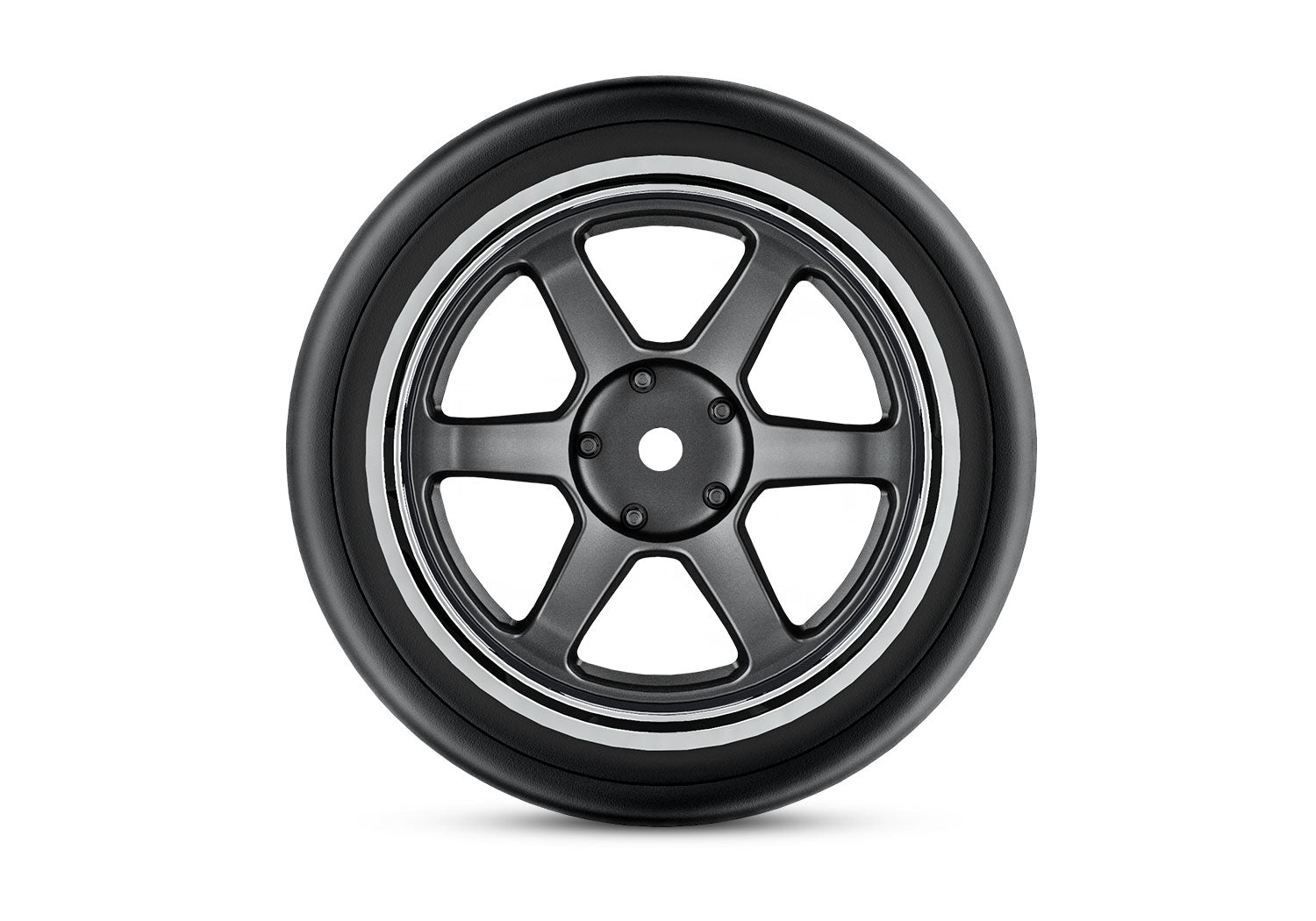

• Six-spoke tuner wheels
• Rubber wheel inserts hold tires securely
• Includes hard and soft compound drift tires
• Replica brake discs incorporate standard 12 mm wheel hexes
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware

MODEL SPECS

Name:	4-Tec Drift Nissan 240SX
Type:	On-Road Cars
Skill Level:	1
Scale:	1/10
Weight:	2.28 pounds (1.30 kg)
Length:	18.38 inches (467 mm)
Width:	8.50 inches (216 mm)
Front Track:	7.87 inches (200 mm)
Rear Track:	7.87 inches (200 mm)

Height:	5.15 inches (131 mm)
Wheelbase:	10.11 inches (257 mm)
Center Ground Clearance:	0.5 inches (12 mm)
Driveline:	Rear-wheel drive
Differential Type:	Spool
Gear Pitch:	48 pitch
Steering Servo:	2075 digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 3-channel transmitter
Battery Compartment Specs:	174 mm X 48 mm X 23 mm or 26 mm

MOTOR SPECS

Name:	Titan Drift 21T 550
Type:	High-torque brushed motor
Weight:	8.47 ounces (240 g)
Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:	1.53 inches (39 mm)
Shaft Size:	3 mm
Connector Type:	Bullet

ESC SPECS

Name:	Waterproof XL-5 ESC with low-voltage detection
Type:	Brushed
Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
Weight:	2.44 ounces (69 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High Current Connector
Power Wire:	14 gauge
