4-Tec 2.0 Brushless Chassis Traxxas 83424-4-R5
Part#
TRA83424-4-R5
Regular price$299.95
Free standard shipping on all orders over $25!

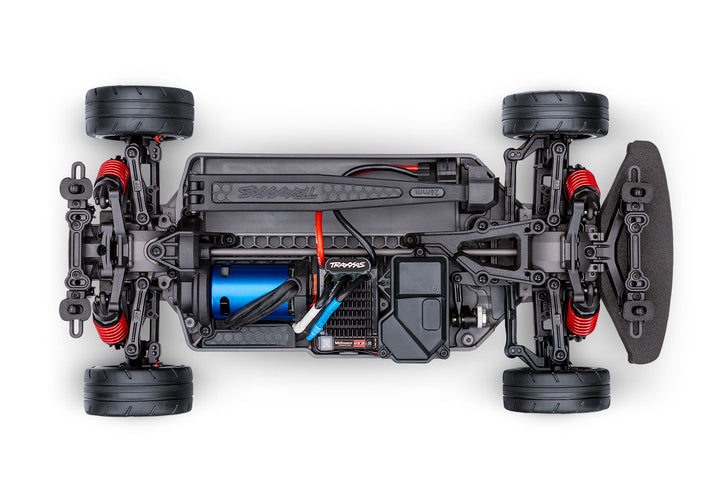

4-Tec 2.0 Brushless Chassis

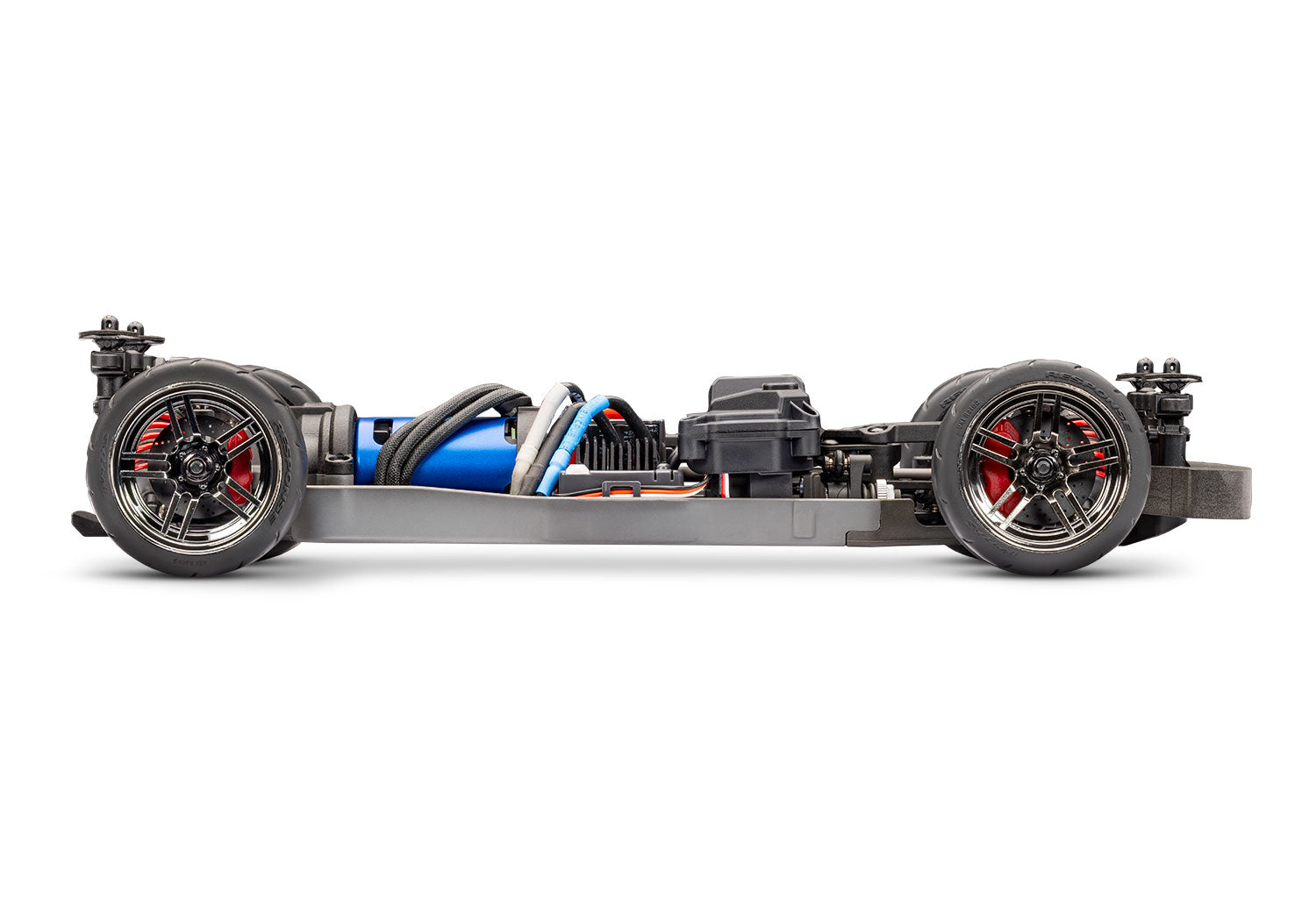

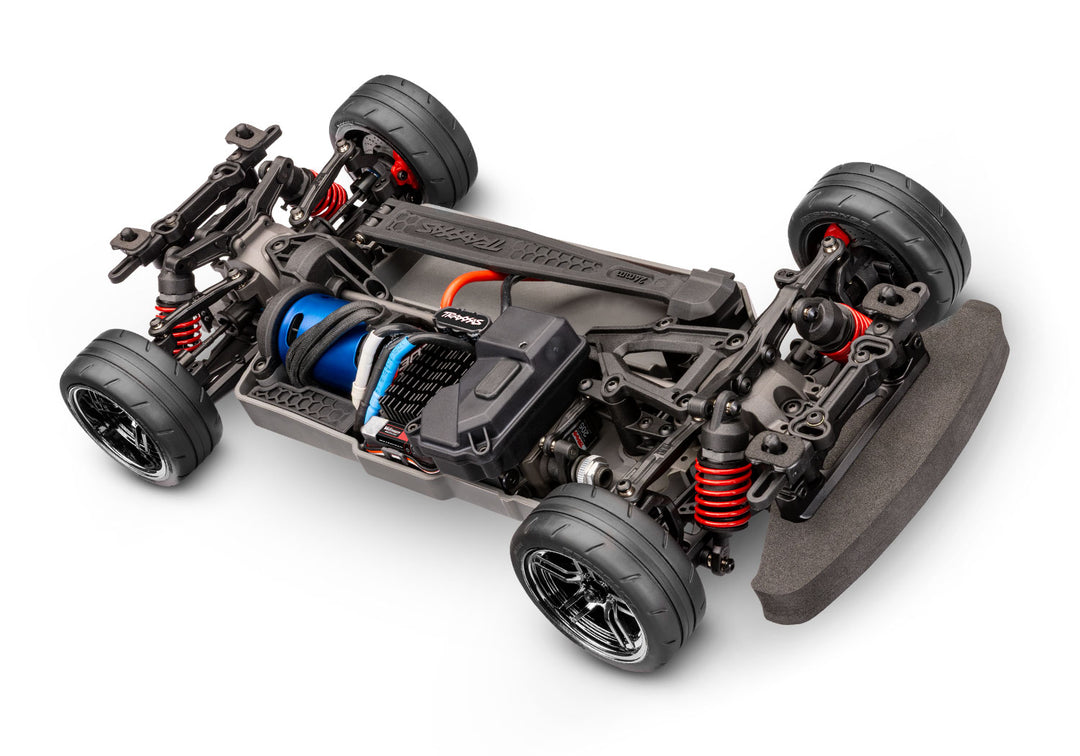

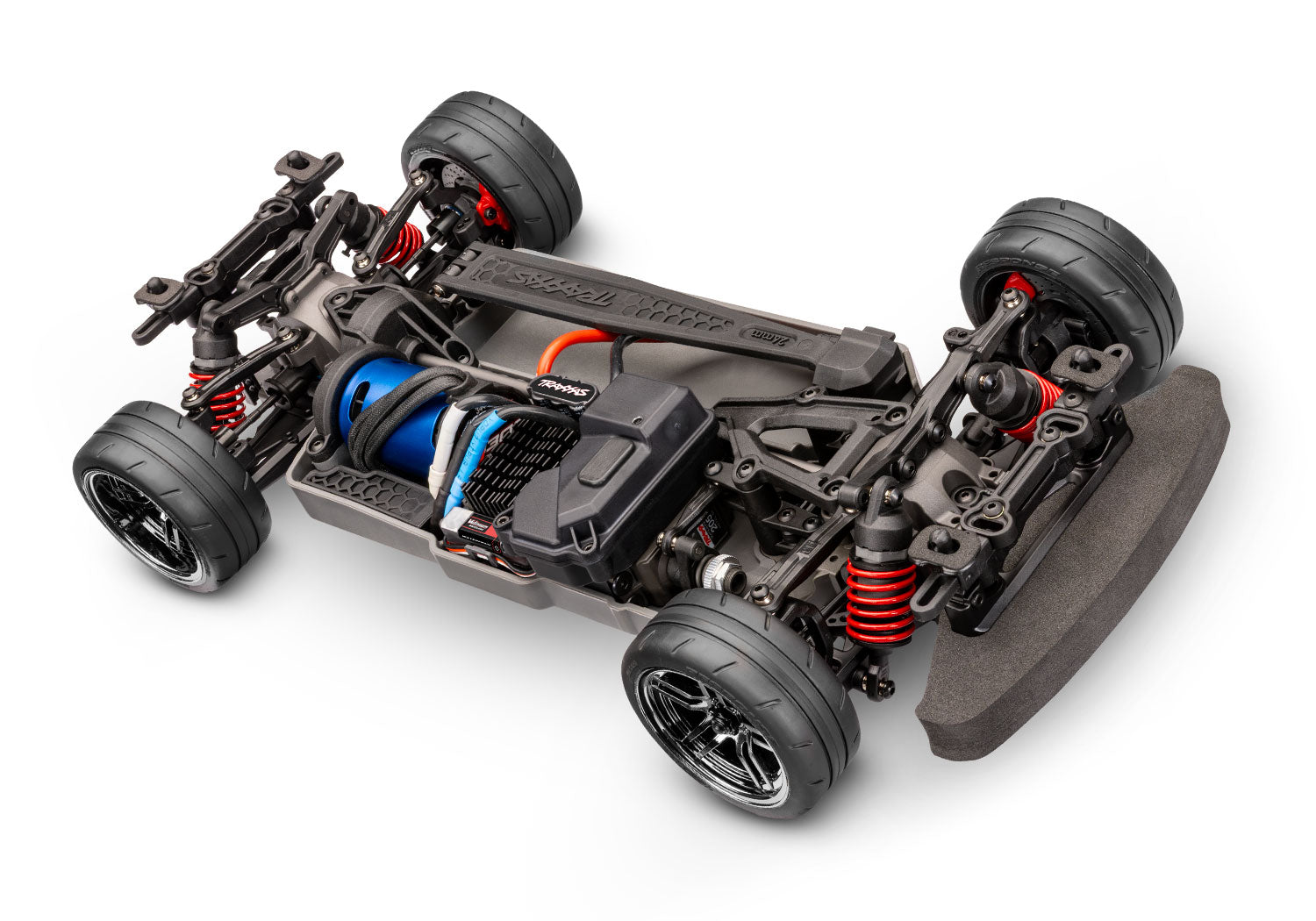

Front Three-Quarter ViewSide ViewMODEL 83424-4: 4-Tec® 2.0 Brushless: 1/10 scale AWD chassis, waterproof and fully-assembled with Velineon 3s brushless power system and TQi™ Sport 2.4 GHz radio system with TSM.
What’s In The Box:
4-Tec 2.0 Brushless Chassis
TQi Sport 2.4 GHz Radio System
High Quality Maintenance Tools
What You’ll Need:
Body
Standard 200 mm body
Battery Pack
4-Tec 2.0 Brushless requires a single 2-cell or 3-cell LiPo battery (NiMH not supported)
Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
Alkaline Batteries
Four AA alkaline batteries for the transmitter
- 35+ mph with 2s LiPo. 50+ mph with 3s LiPo (no gearing change required)
-

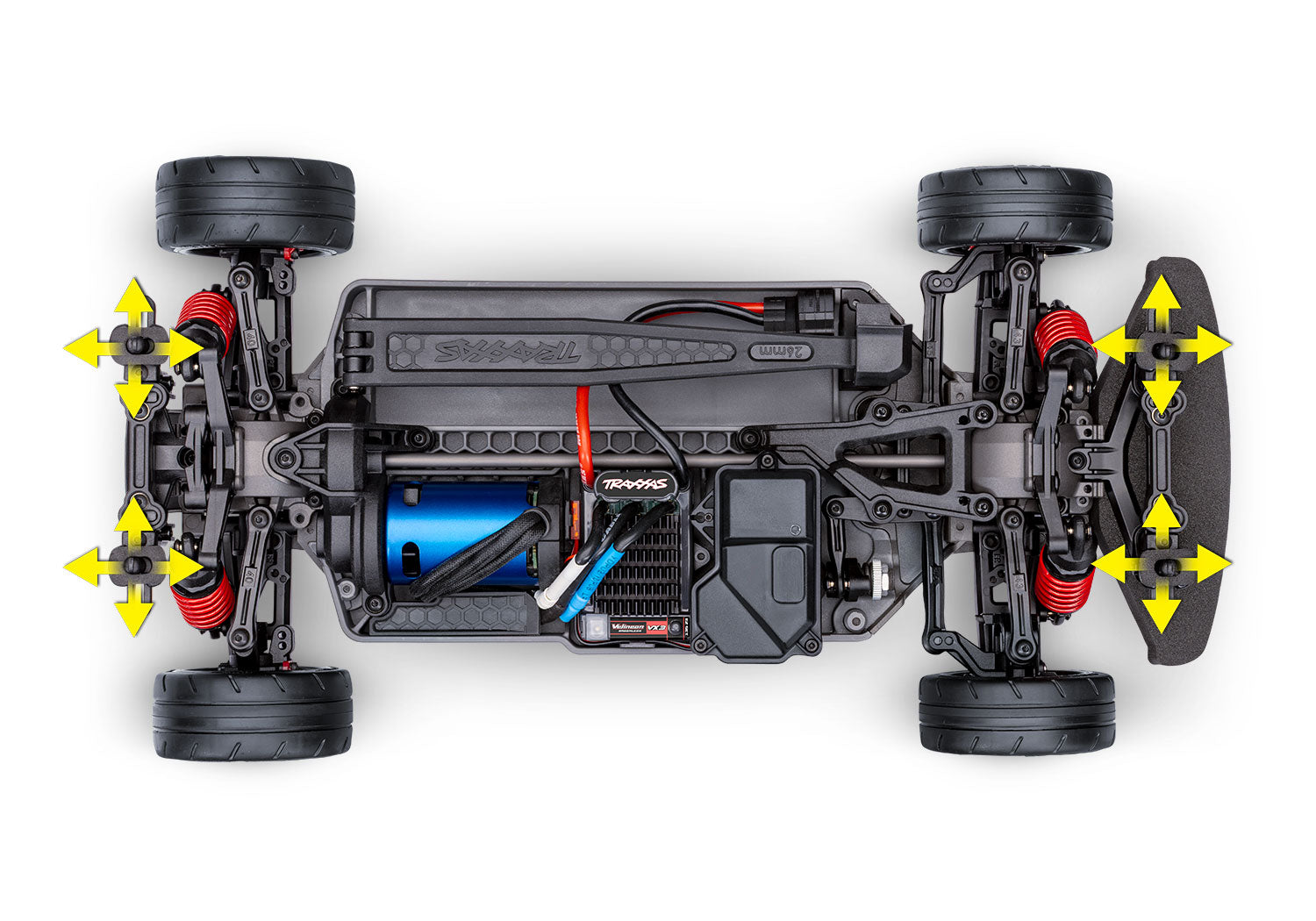

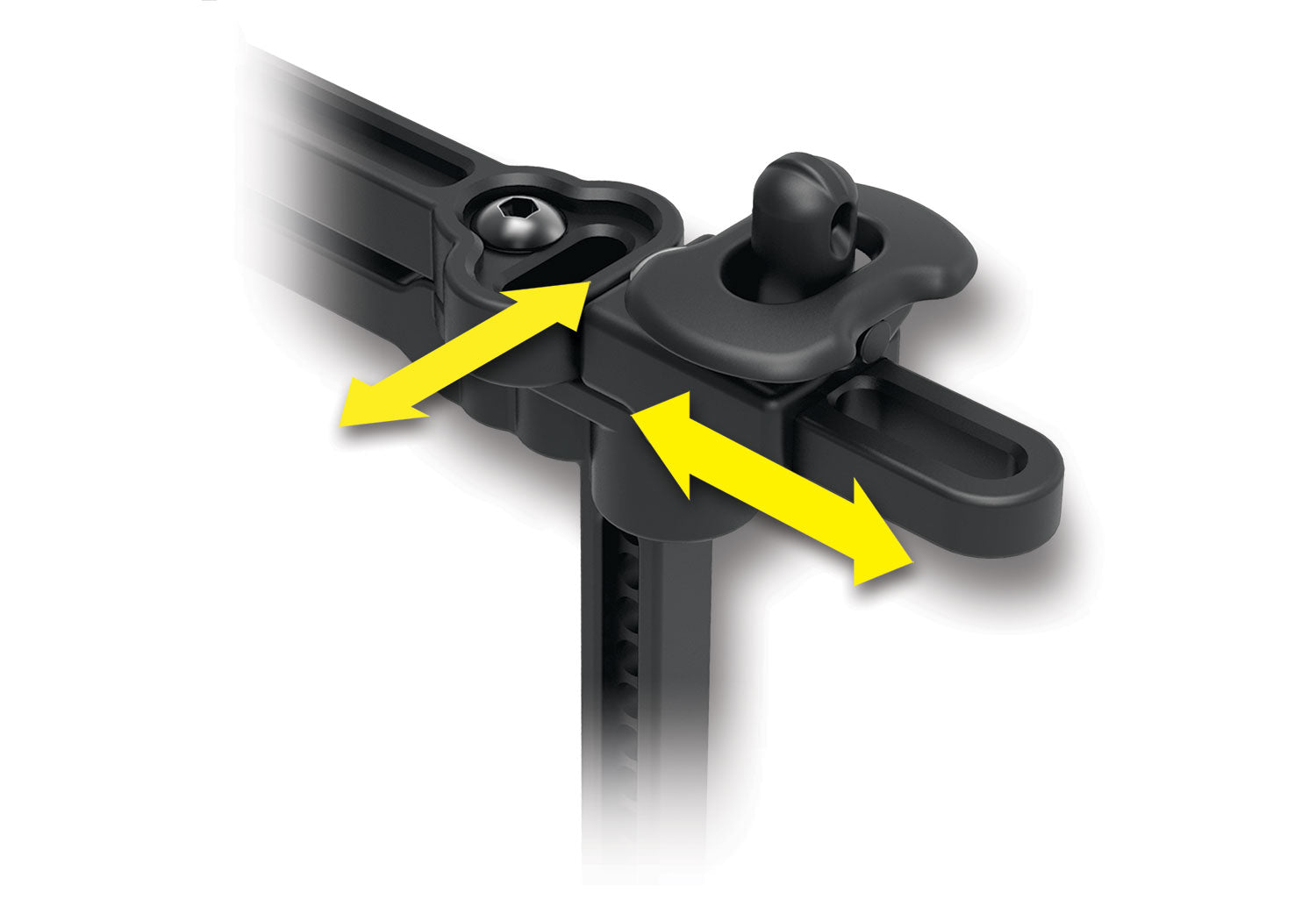

Adjustable Body Mounts and Chassis
- Body posts adjust forward and backward, left and right

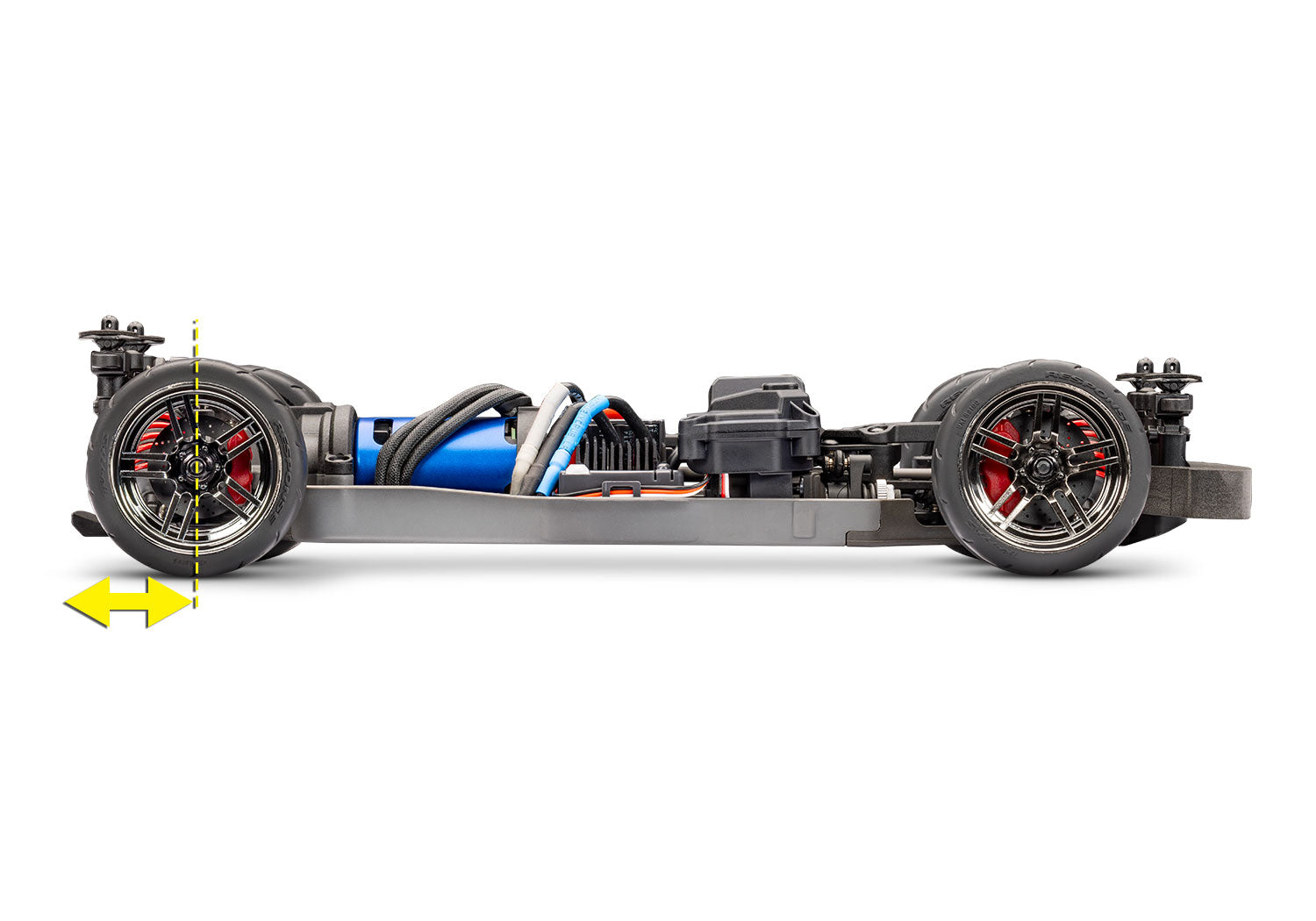

- Wheelbase can be lengthened or shortened by 3 mm
- Accommodates most 200 mm bodies
- Replica brake discs with red calipers
-

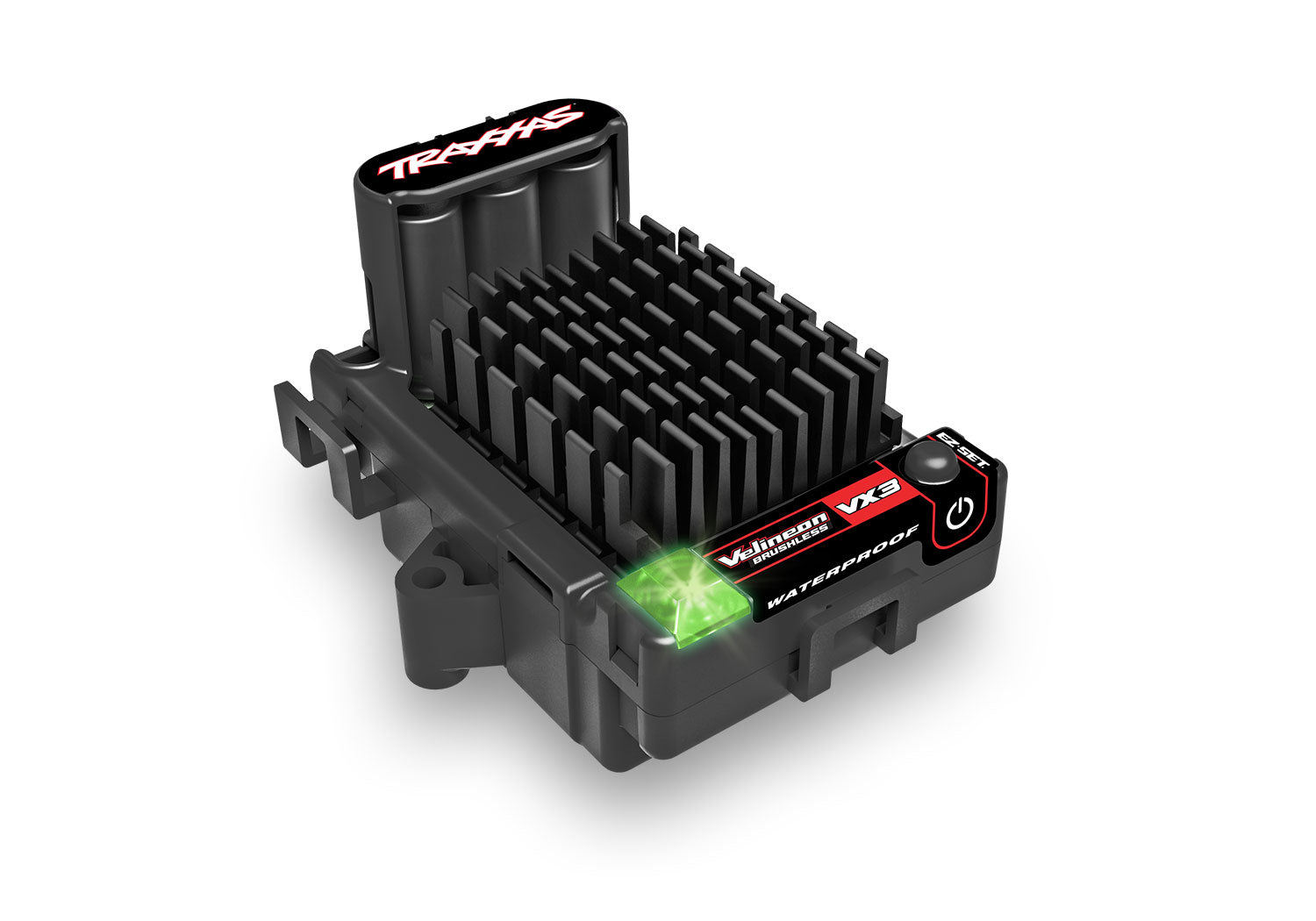

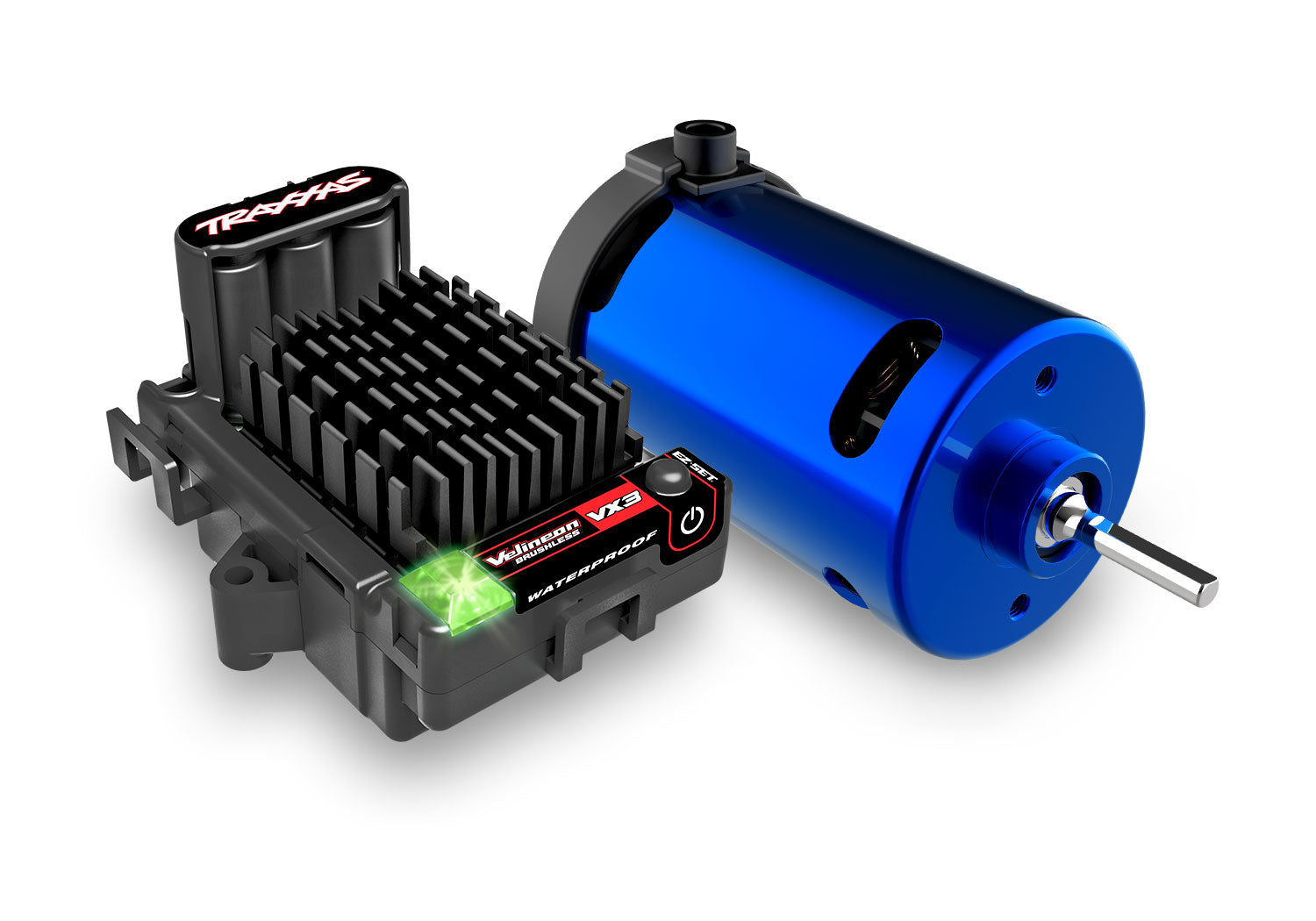

Velineon® VX3 Waterproof Electronic Speed Control
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- Real-time telemetry via Traxxas Link™
- High-Resolution Linear Braking
- Compatible with 2s and 3s LiPo batteries (NiMH not supported)
- Three programmable drive profiles
-

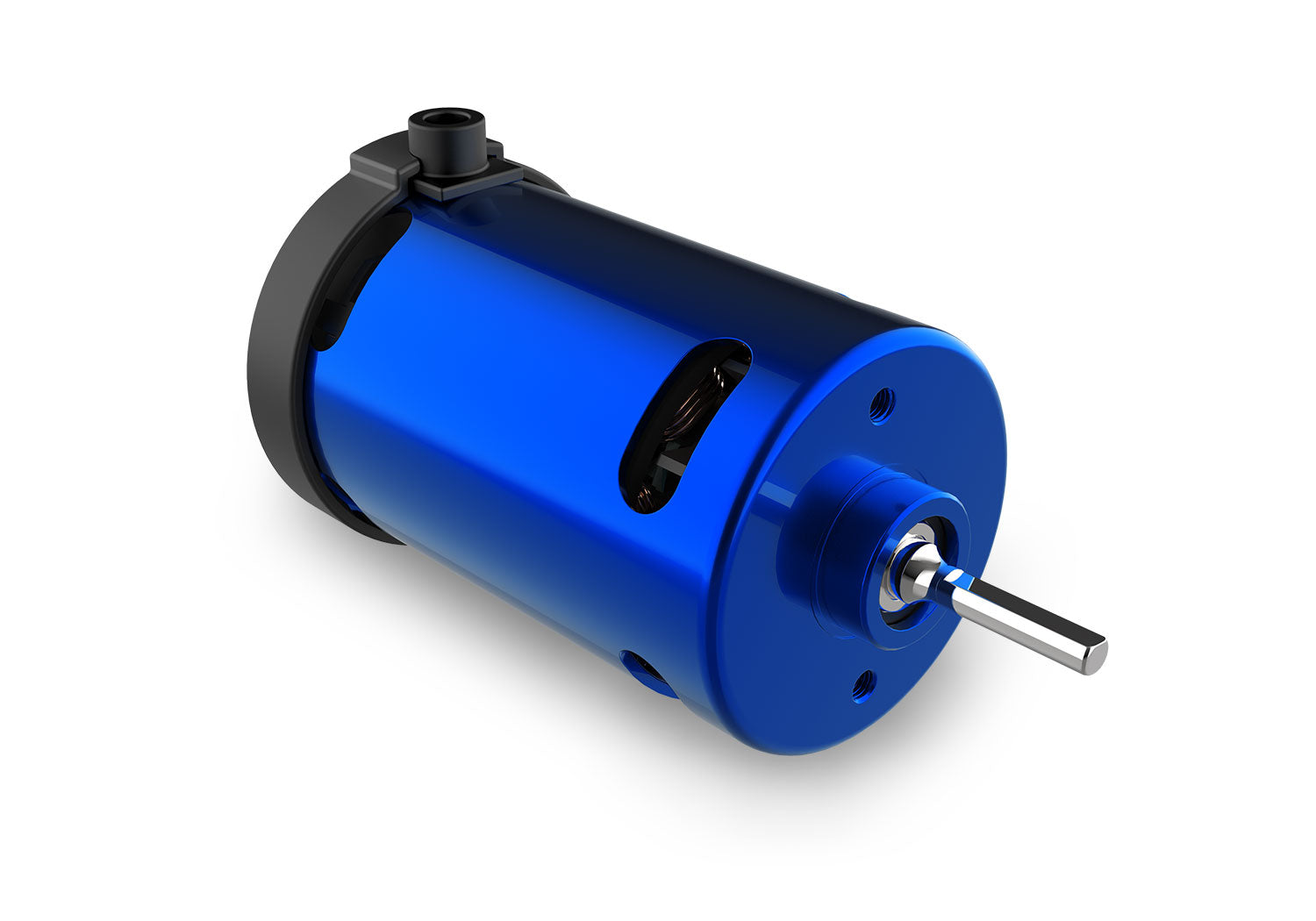

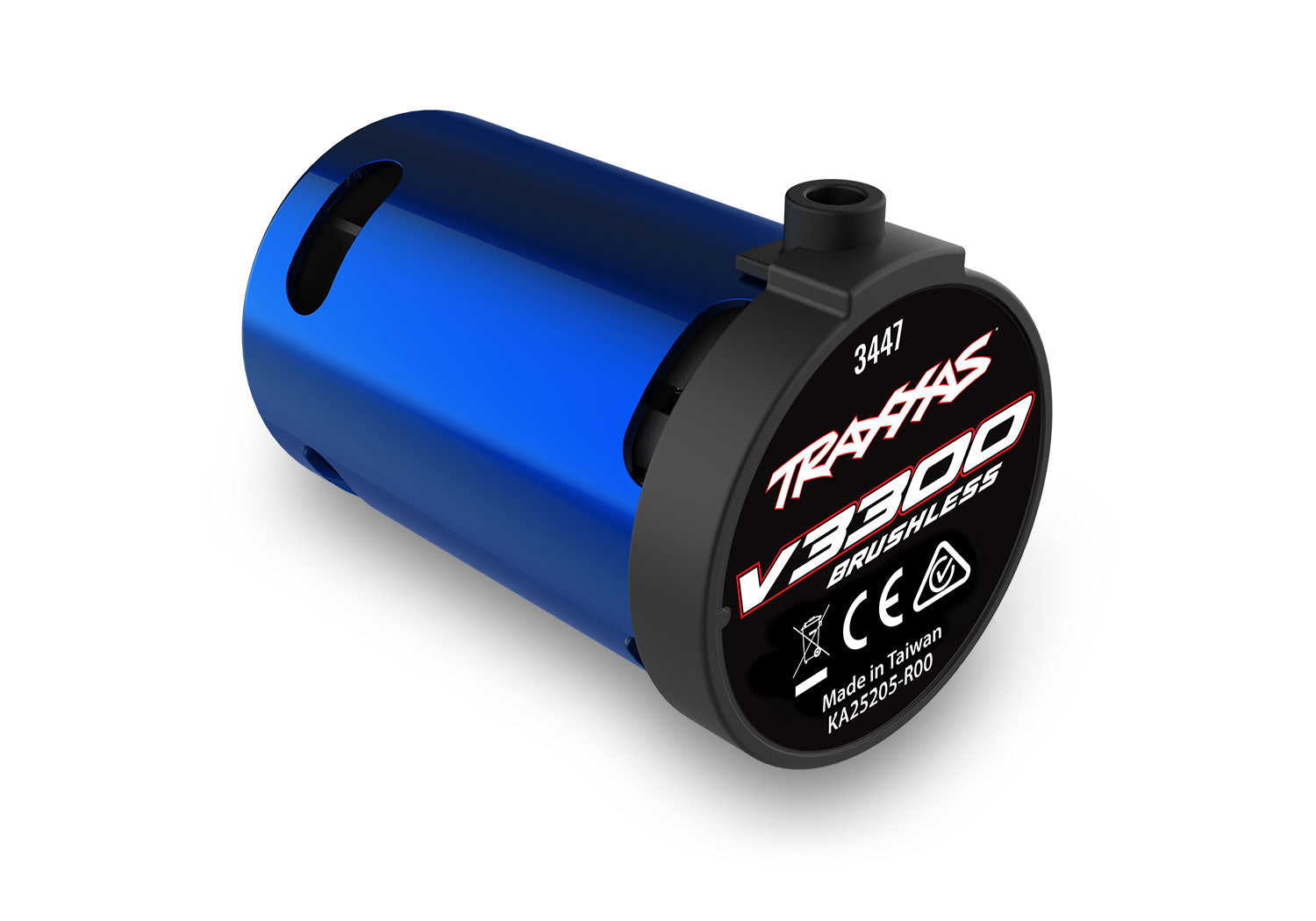

Velineon V3300 Brushless Motor
- Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
- 3300 Kv optimized for power and efficiency in 1/10th scale vehicles
- 3 mm output shaft
- Internal & external cooling fans for longer run times
- Low-maintenance design
- Efficient, high-speed ball bearings
-

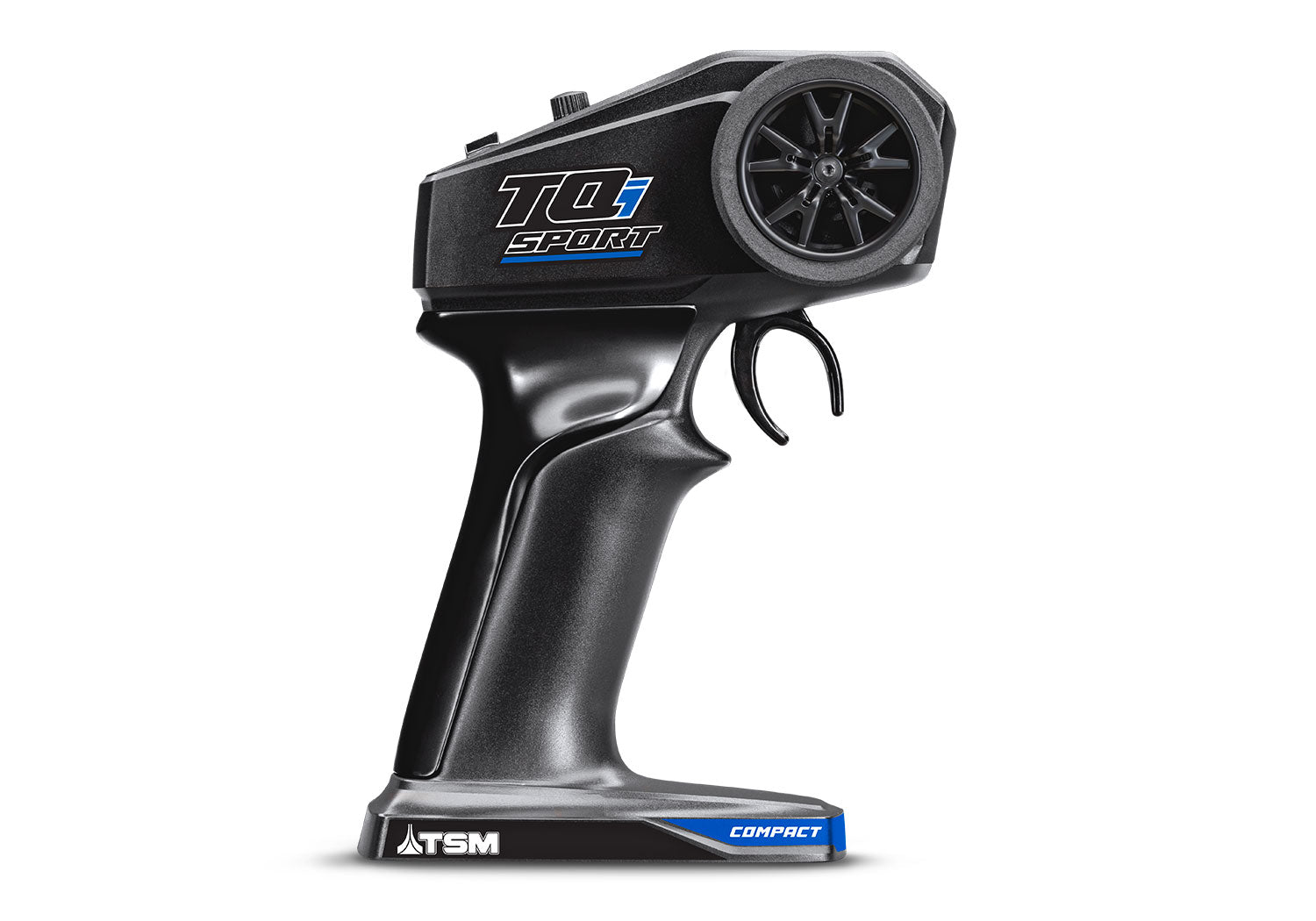

TQi™ Sport 2.4 GHz 2-Channel Radio System
- Removable grip adapter
- High-output signal delivers outstanding range
- Simple one-button programming
- 30-model memory

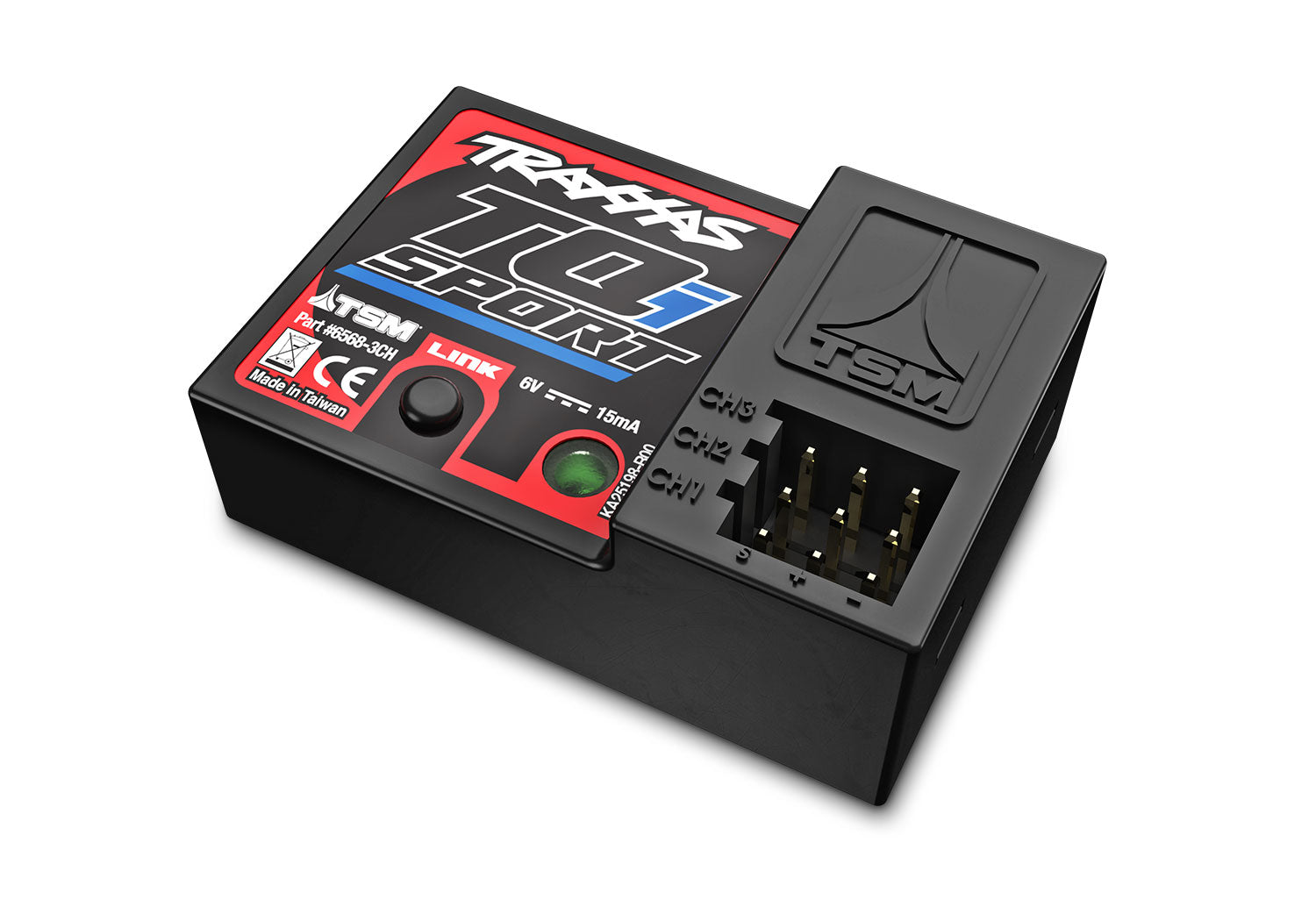

- 3-channel micro receiver with fail-safe security
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Activated or deactivated directly from the transmitter
- Large aluminum heat sink with cooling fan
-

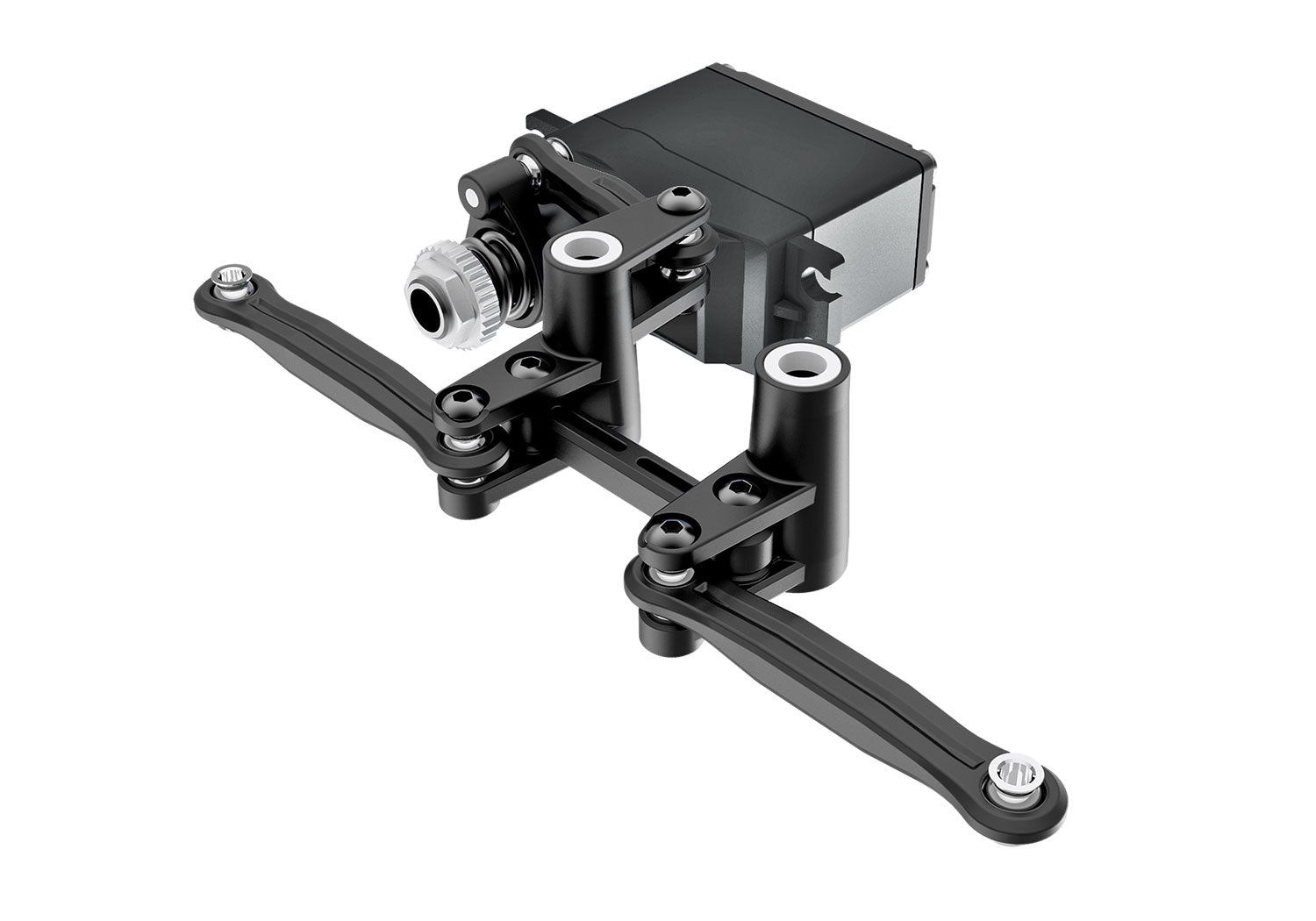

Steering
- 2057 waterproof, metal-gear servo
- Full metal gear train for improved durability
- Integrated servo saver for increased precision
- 2057 waterproof, metal-gear servo
-

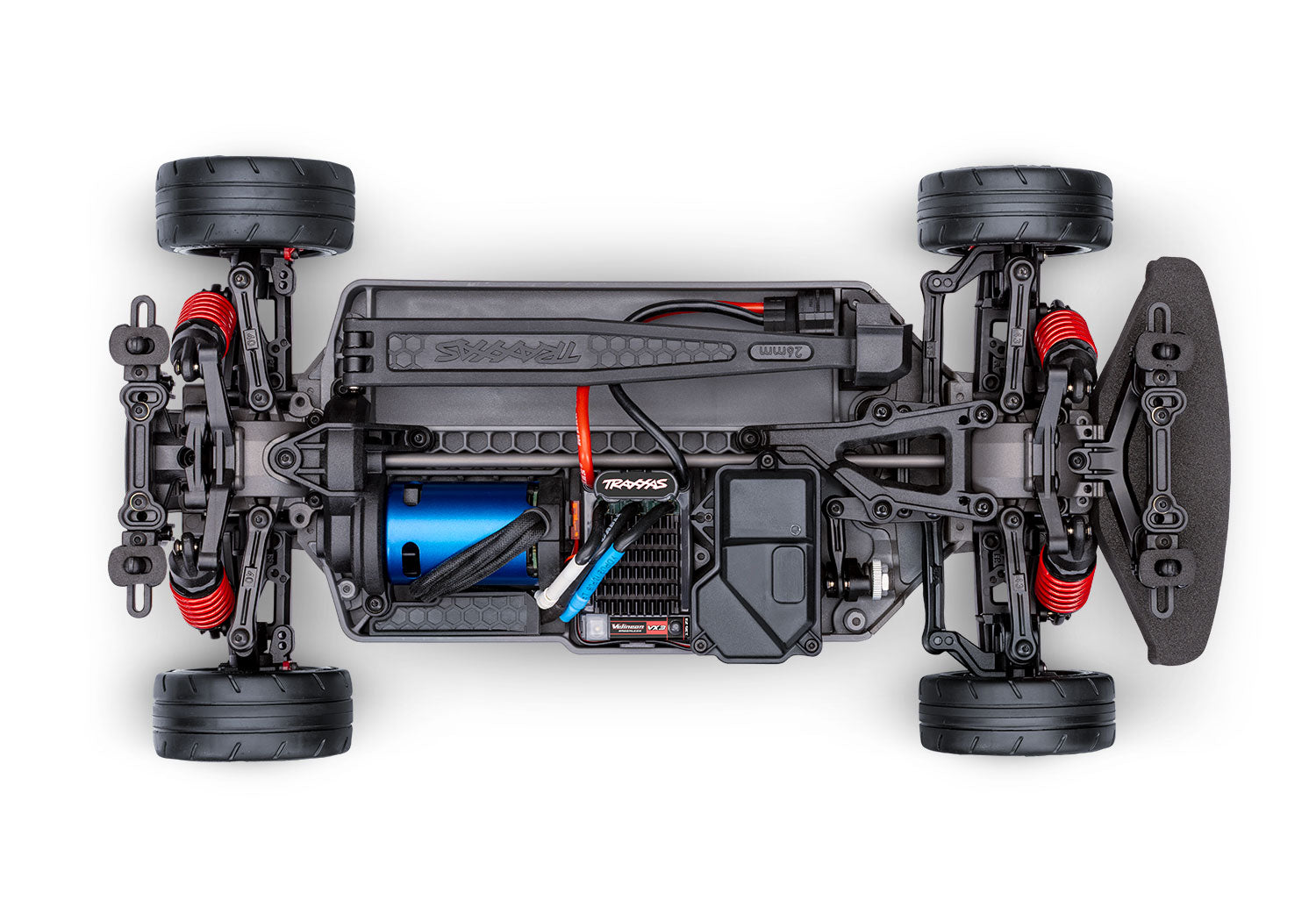

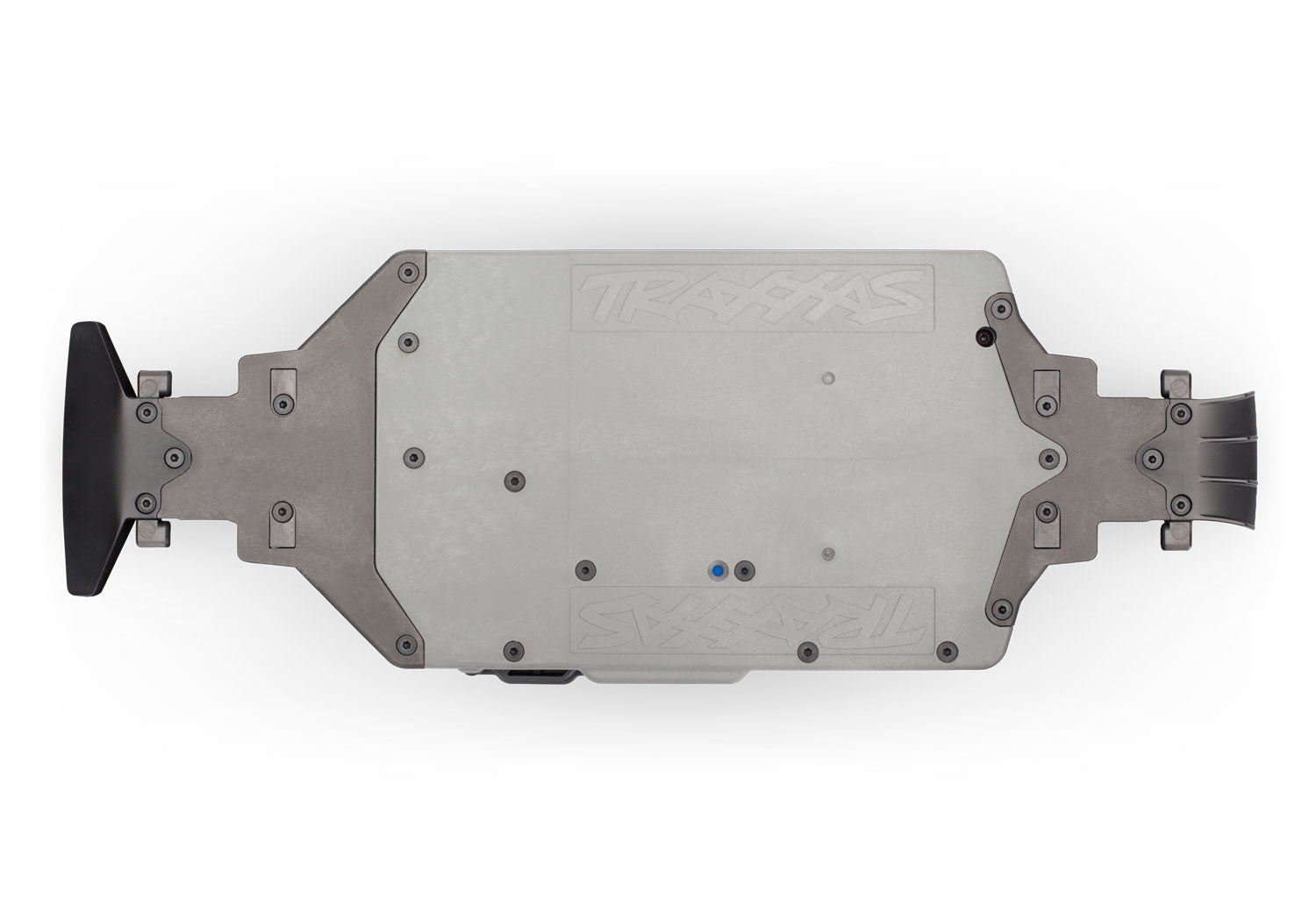

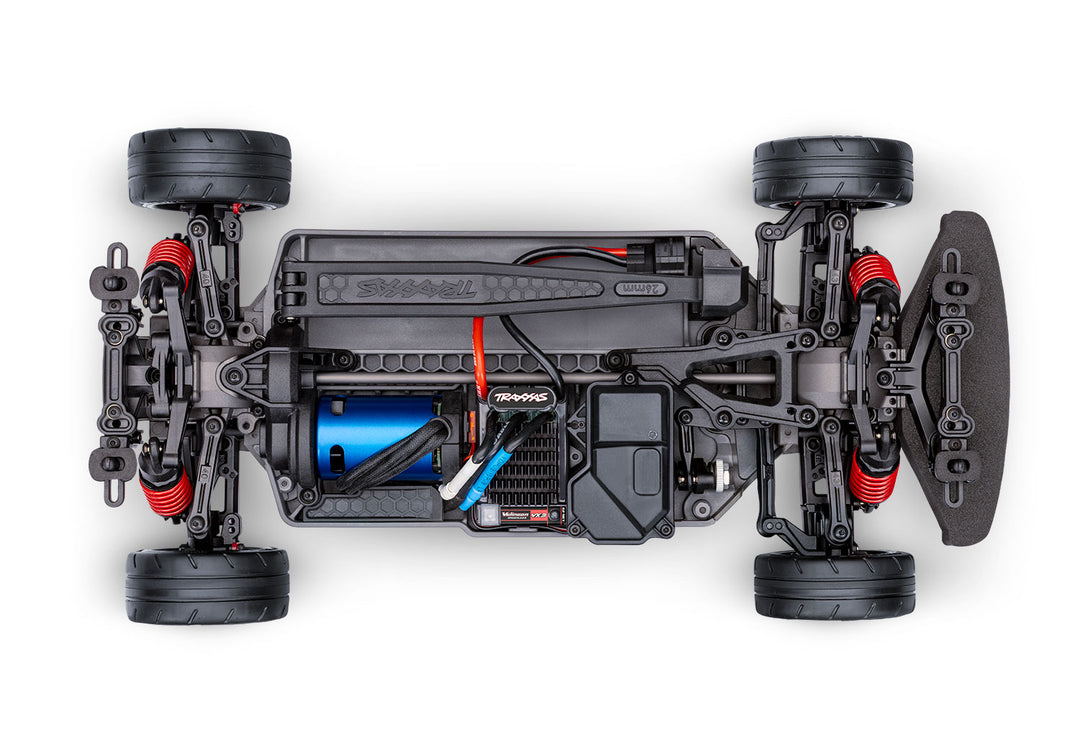

Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved handling
- Smooth underside resists drag and snags

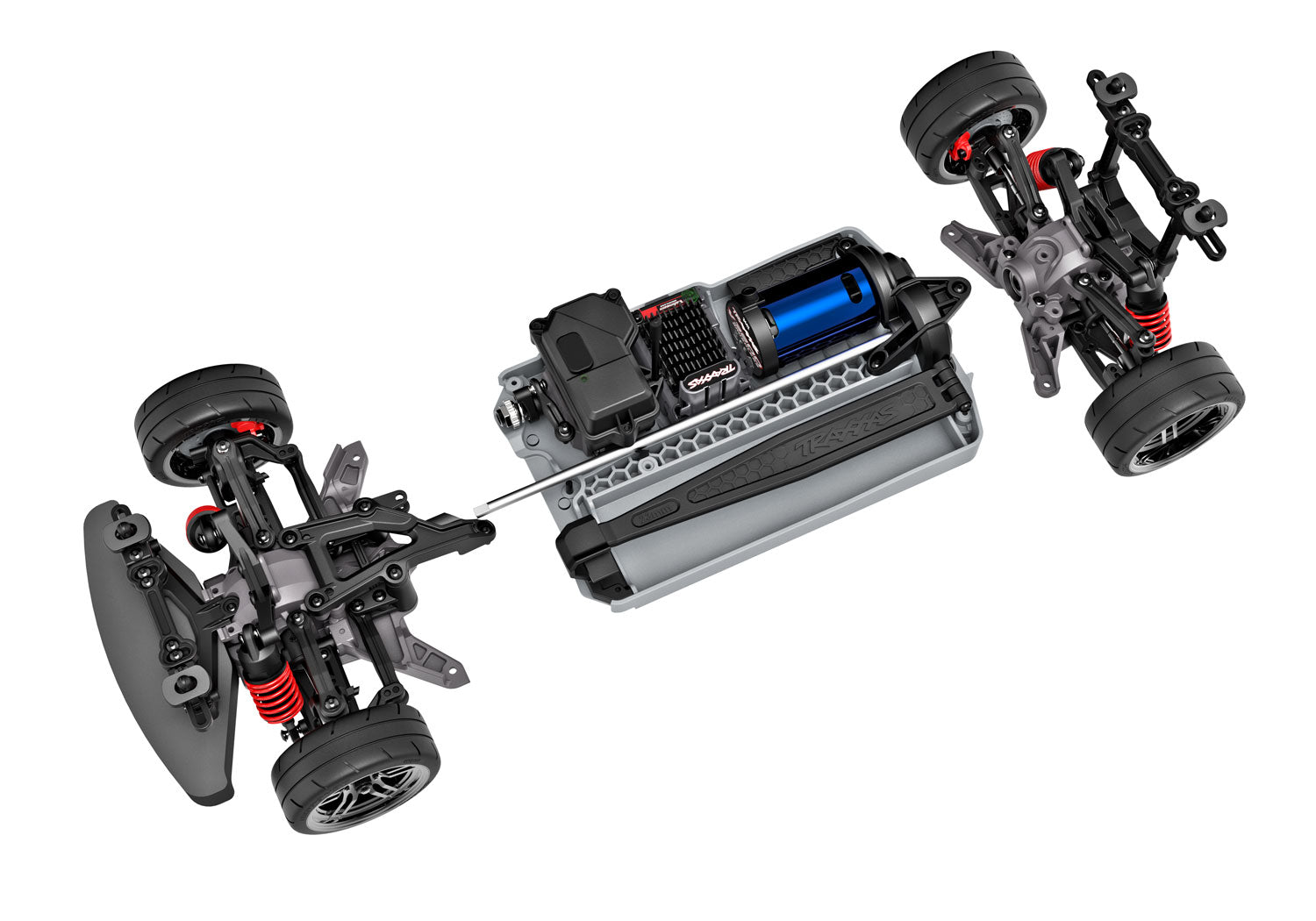

- Modular interlocking chassis pieces
- Improves rigidity and tightens tolerances
- Allows for easy maintenance
-

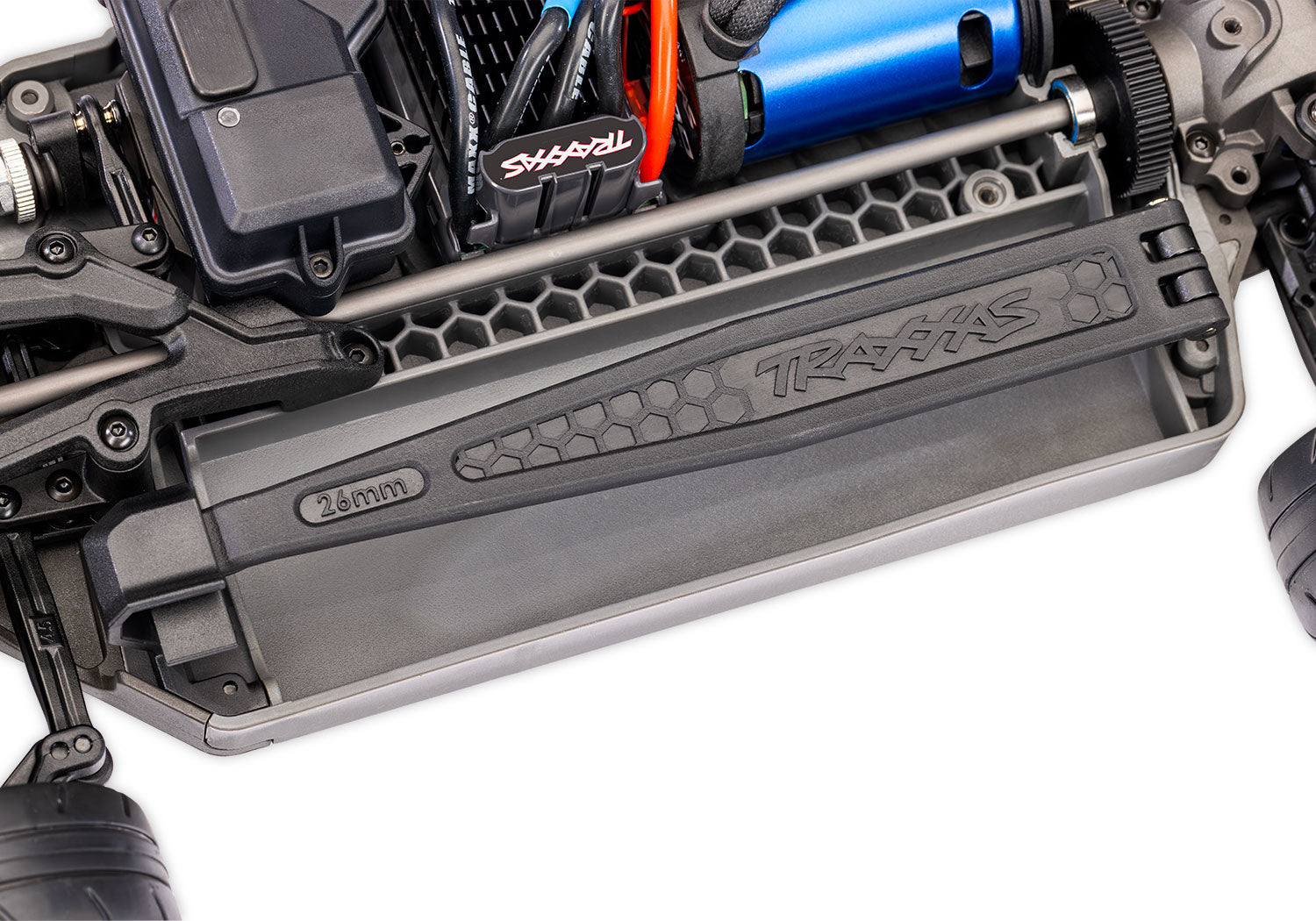

Adjustable Battery Hold Down
- Easy, secure battery installation
- Swivels to allow different height batteries
- Locks securely without pins or parts to lose
-

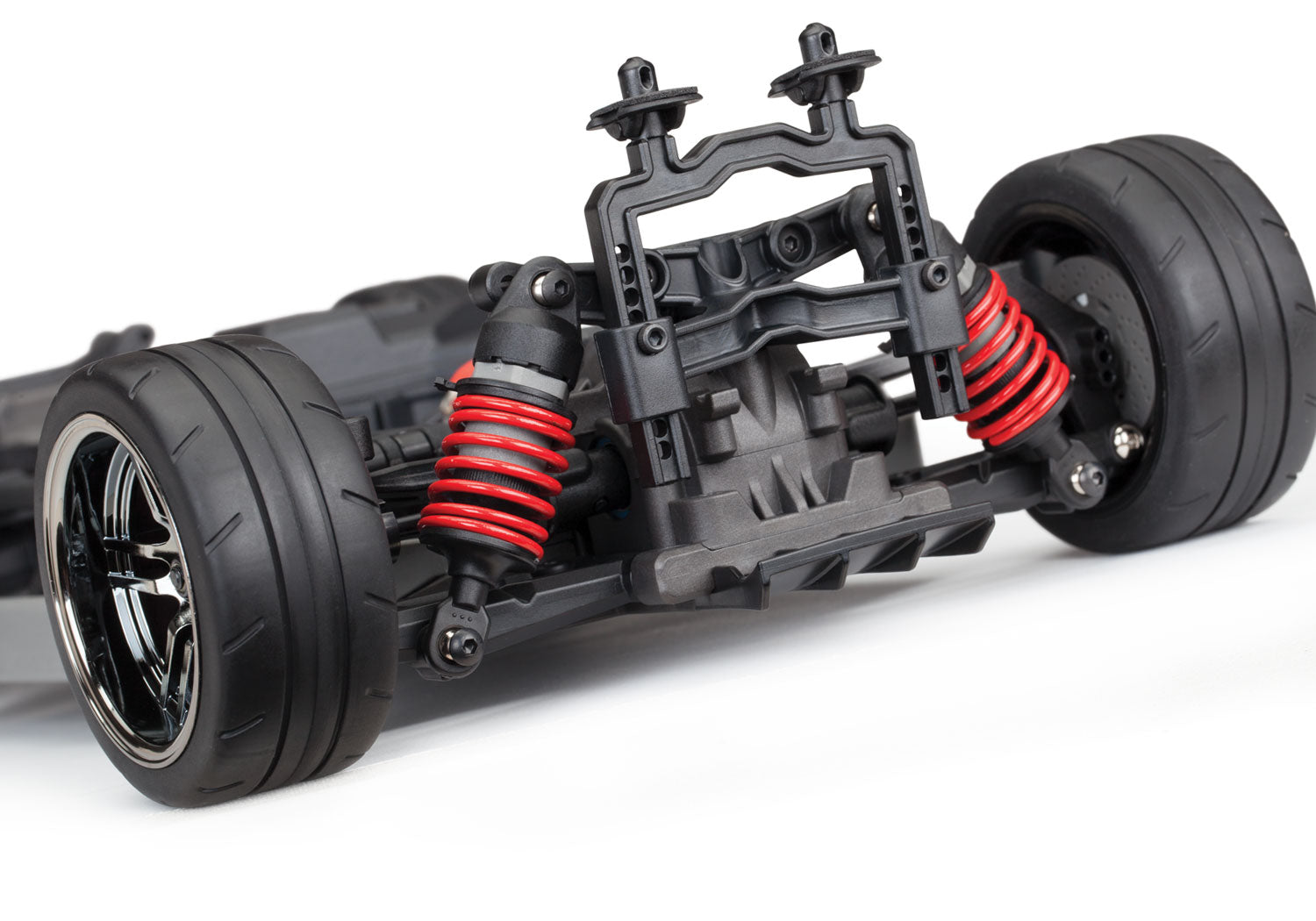

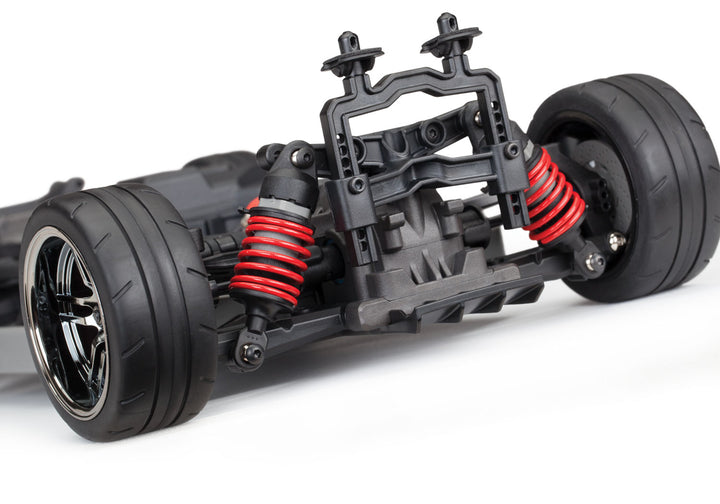

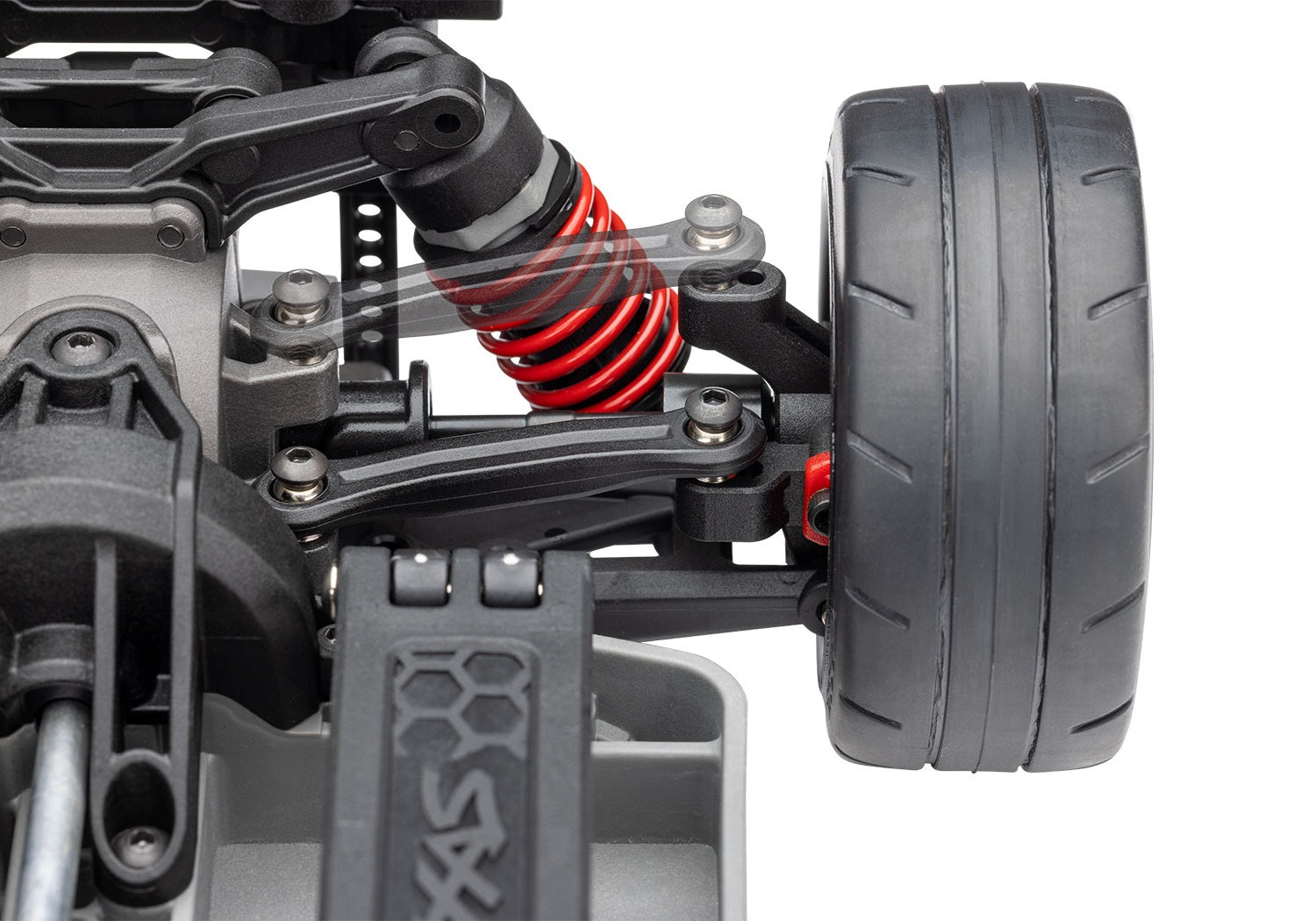

High Performance Suspension
- Captured links won’t pop off
- Geometry tuned for precise handling

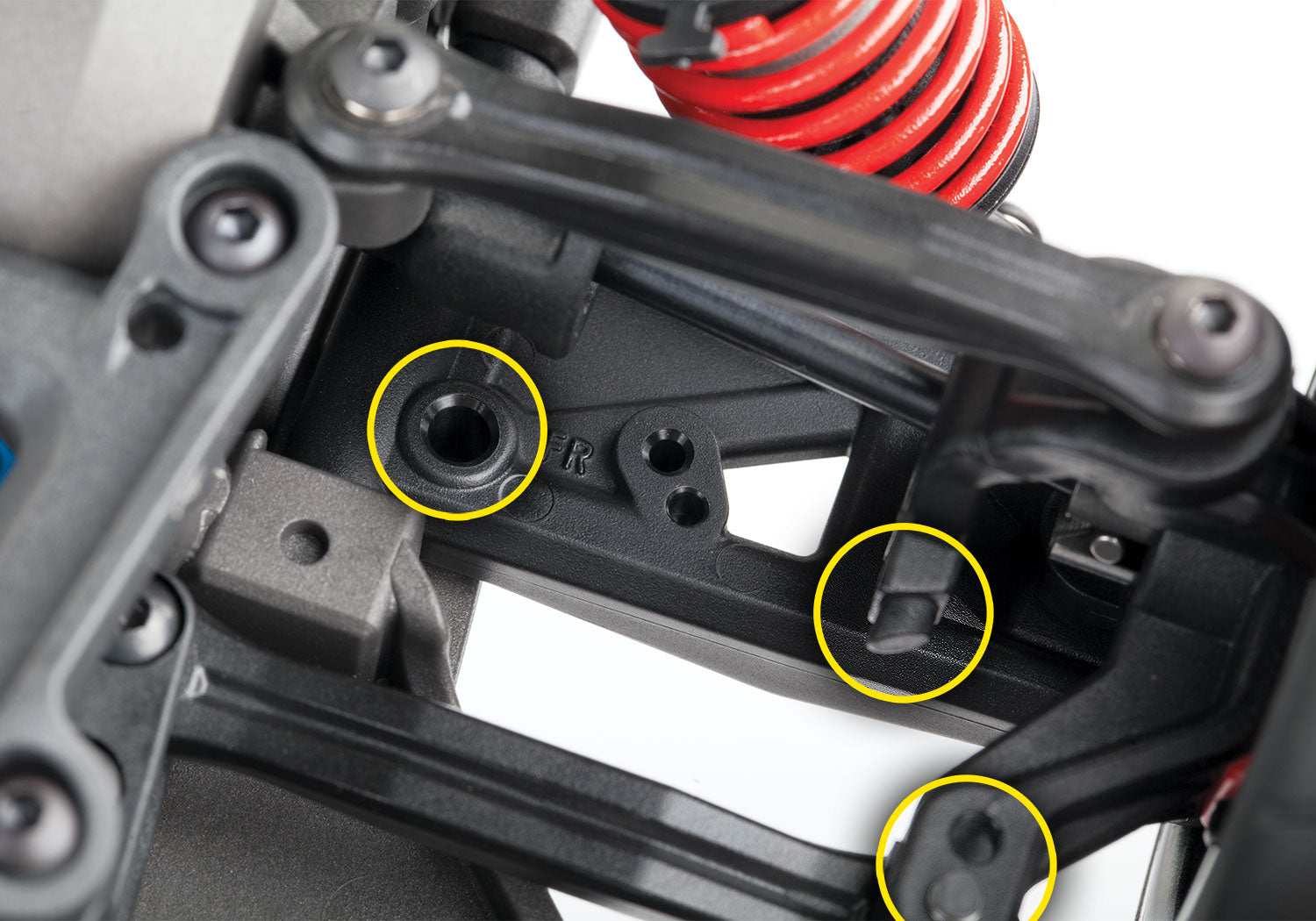

- Dual rear camber link mounts
-

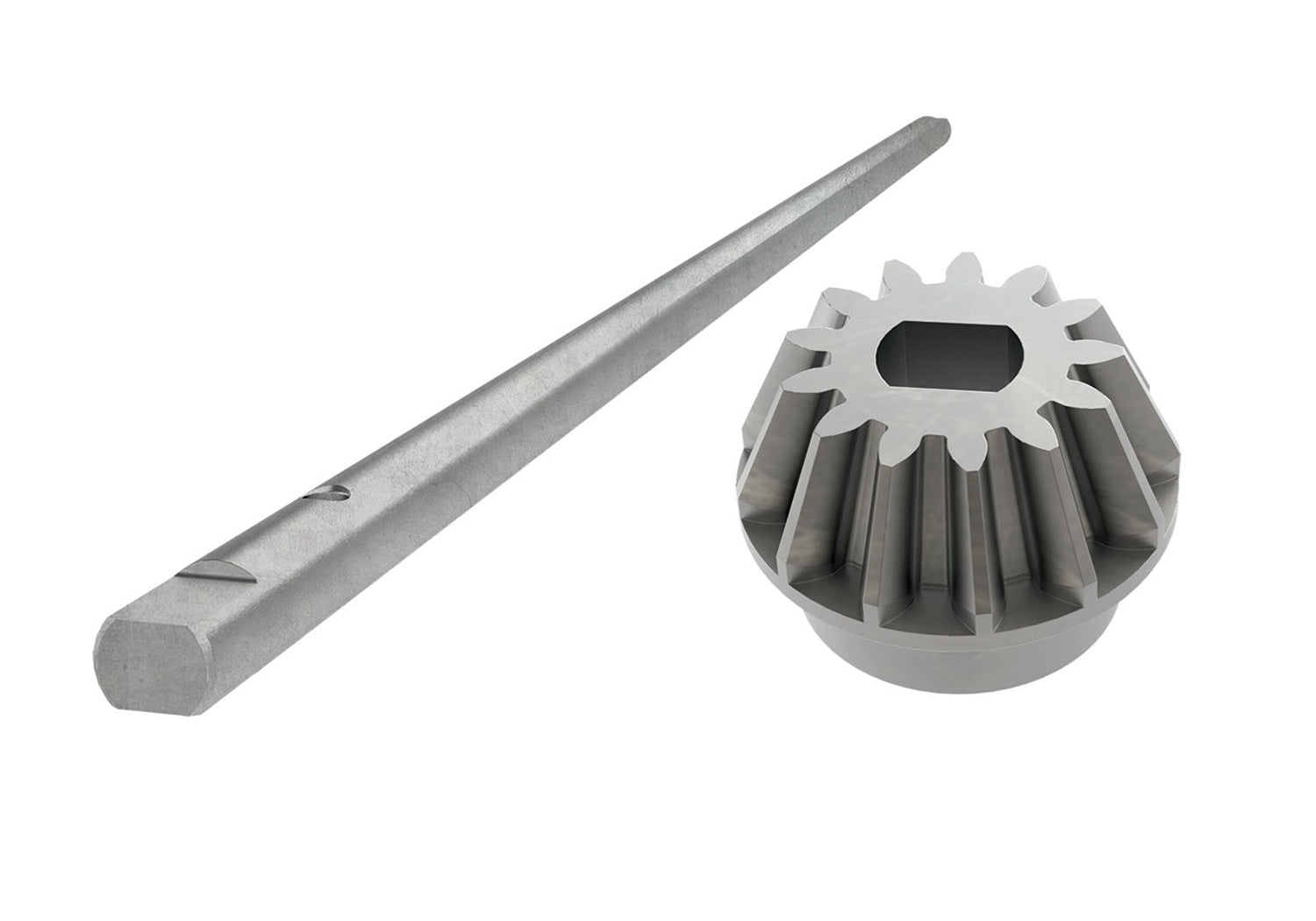

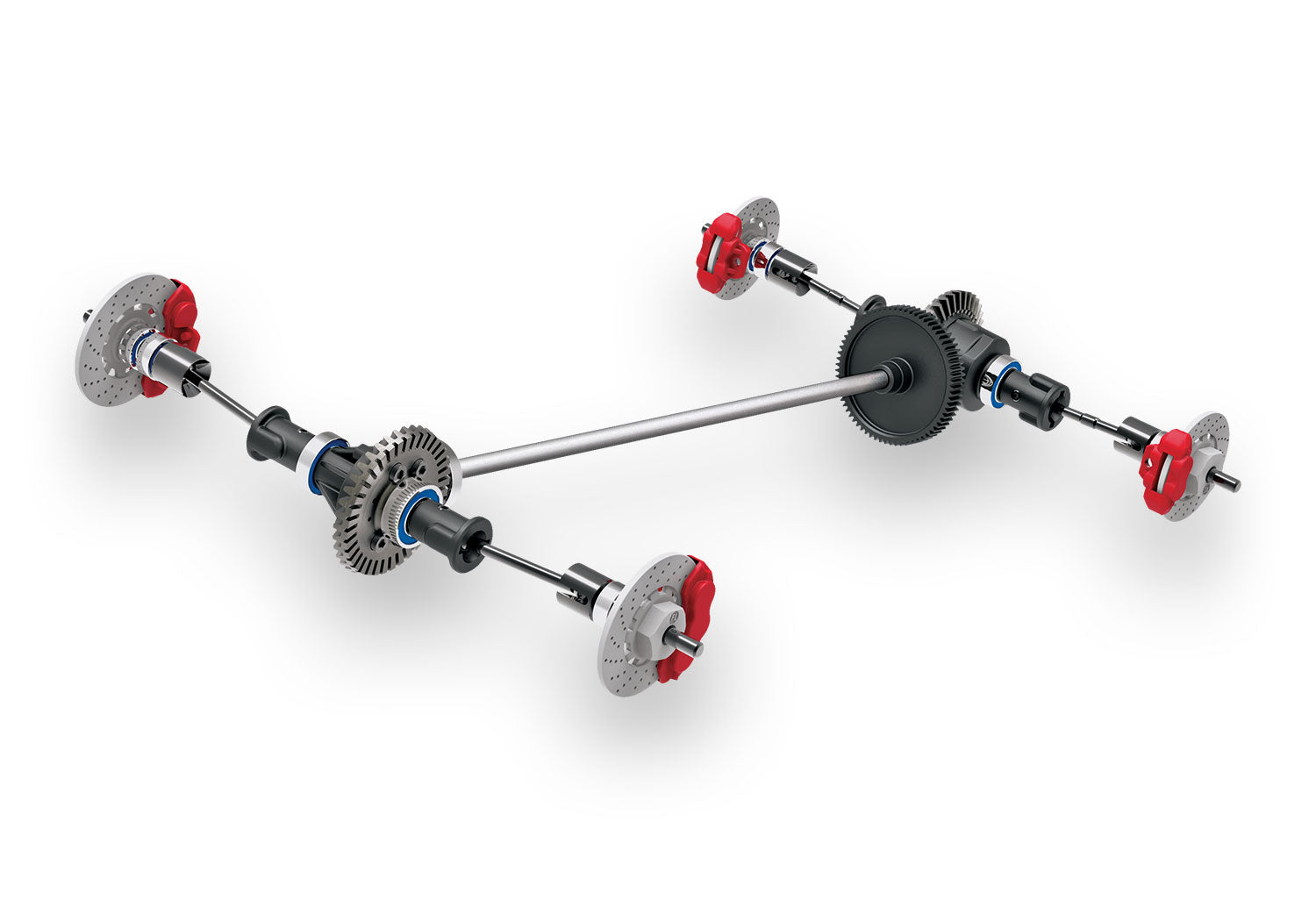

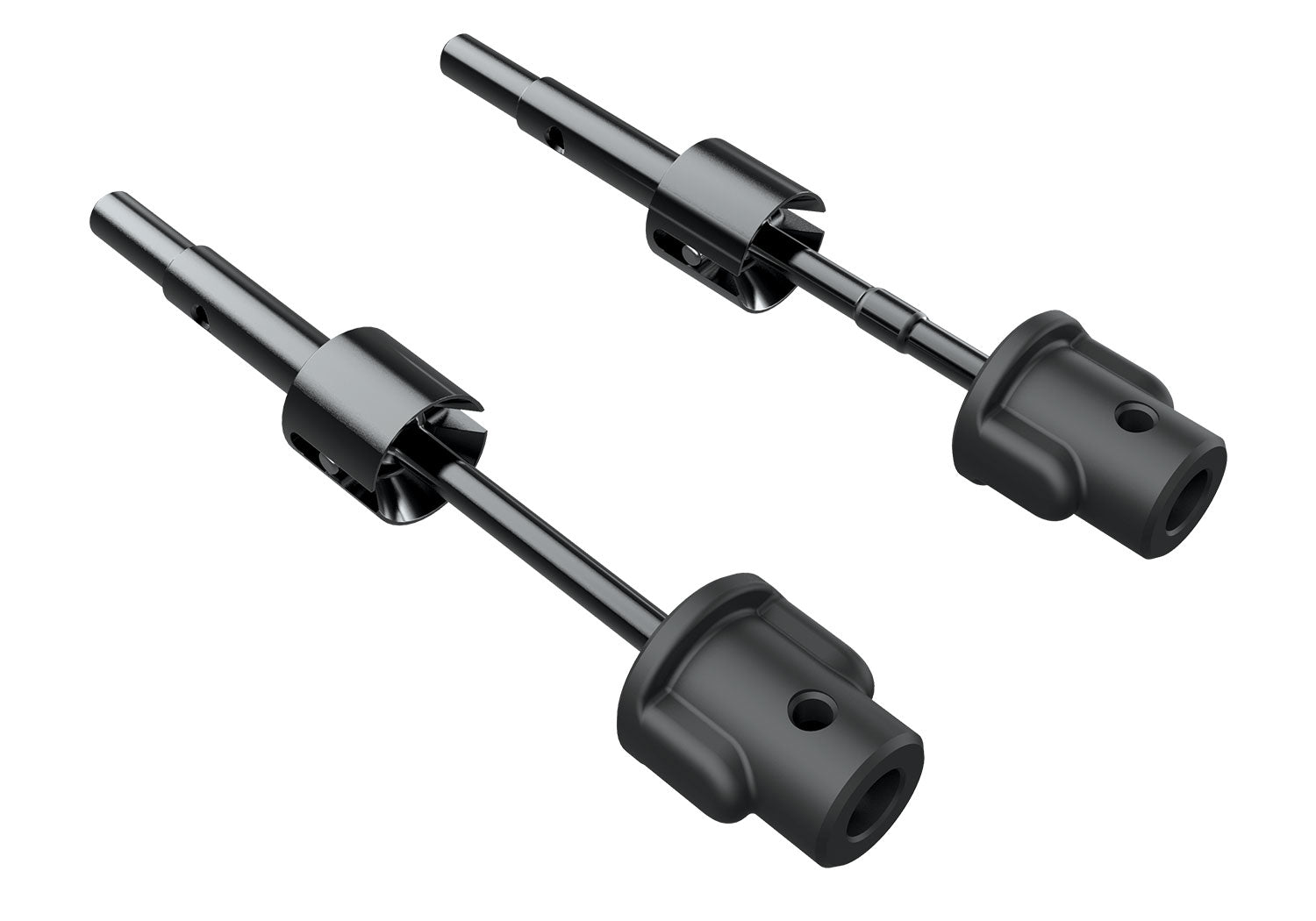

Driveline
- Full-time shaft driven 4-wheel drive
- Steel center driveshaft with center bearing support
- Direct drive
- Sealed differentials
-
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Red powder coated shock springs feature a responsive spring rate
-
Wheels and Tires
- Black chrome multi-spoke wheels with lug nut detail
- High-performance street tires with long-wearing compound
- Staggered street tires are larger in the rear
- Brake calipers can be mounted in forward or trailing edge positions
- Rubber-Sealed Ball Bearings
MODEL SPECS
| Name: | 4-Tec 2.0 Brushless Chassis |
|---|---|
| Type: | On-Road Car |
| Top Speed: | 50+ mph |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Length: | 14.94 inches (379 mm) |
| Width: | 7.9 inches (200 mm) |
| Height: | 2.43 inches (62 mm) |
| Weight: | 2.83 lbs (1.28 kg) |
| Front Track: | 7.7 inches (196 mm) |
| Rear Track: | 7.9 inches (200 mm) |
MOTOR SPECS
| Name: | Velineon V3300 (patent pending) |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 9.24 ounces (262 g) |
| Length: | 3.35 inches (85 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | VX3 Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| Voltage Range: | 2-cell or 3-cell LiPo (NiMH not supported) |
| Case Size: | 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm) |
| Weight: | 4.20 ounces (119 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
