Firma Brushless Motor / ESC 2-in-1 Combo, 1/18 Losi Mini LMT, Spektrum SPMXSEM0500
Part#
SPMXSEM0500
Free Shipping on orders of $150 or more!
Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv
Overview
Spektrum Firma 5200Kv Motor and ESC Combo Overview
The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one to one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor's RPM with unmatched precision.
This ESC and motor 2-in-1 Combo is an excellent choice to complete your 1/18 Losi Mini LMT 4X4 Monster Truck running 2S or 3S LiPo power. Whether you are bashing or competing with your Mini LMT, this combo is the perfect system.
Spektrum Firma 5200Kv Motor and ESC Combo Features
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Easy programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

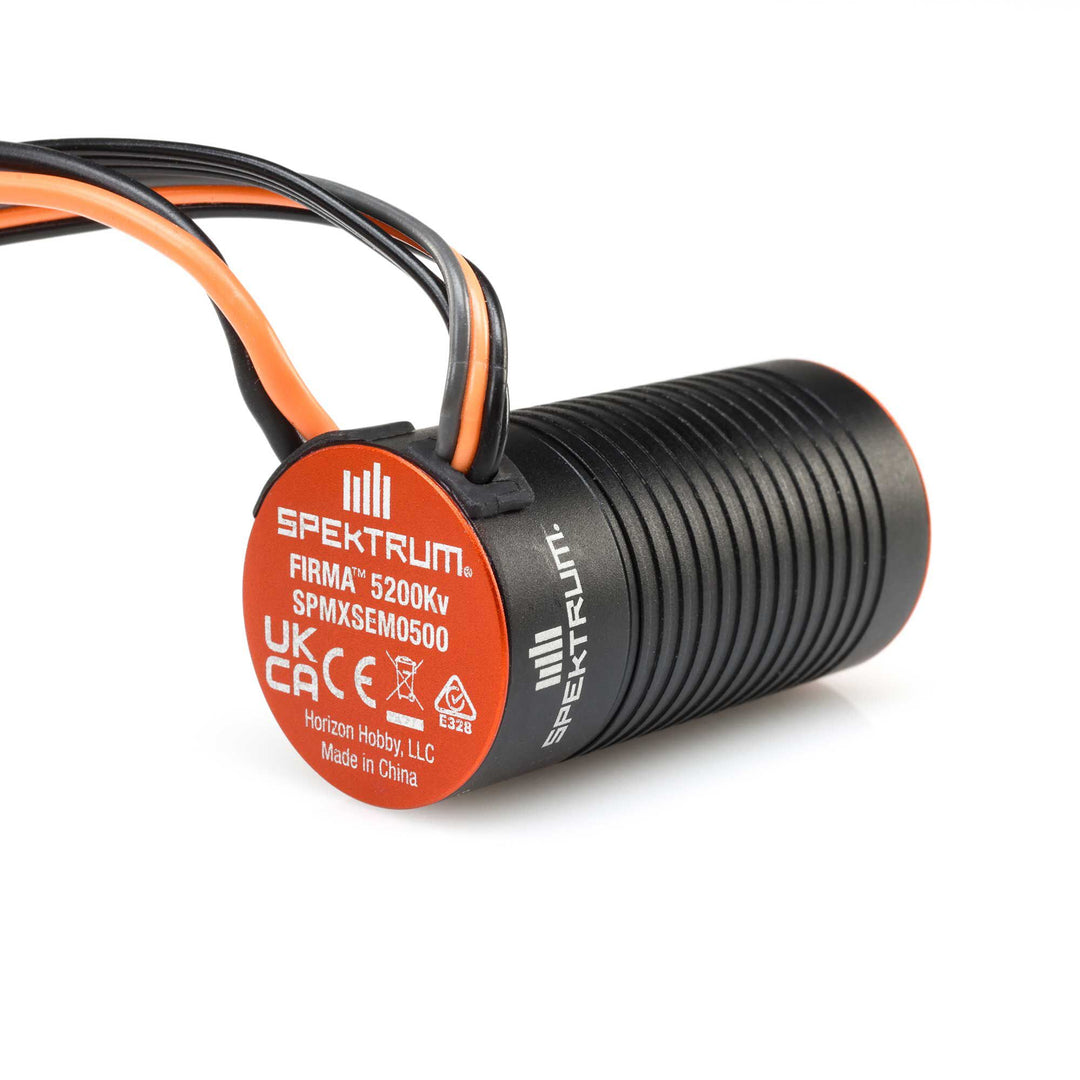

- Includes high performance and durability Spektrum Firma 5200kV Sensored Brushless motor
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminum construction helps with heat dissipation
- Adjustable high-power BEC
- High heat-resistant IC2™ connectors, backwards compatible with EC2™ connectors
The SpektrumTM FirmaTM 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed
specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. It features a high-precision magnetic encoder and
rotor position sensor that provides an excellent one to one control feel when driving at any speed and at any
angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor’s RPM
with unmatched precision.
This ESC and motor 2-in-1 Combo is an excellent choice to complete your 1/18 Losi Mini LMT 4X4 Monster Truck
running 2S or 3S LiPo power. Whether you are bashing or competing with your Mini LMT, this combo is the
perfect system.
• Fast, powerful 32-bit ARM M4 processor
• Waterproof
• Easy programming
• Multi-point protection
• Developed and designed by SpektrumTM engineers, in partnership with the industry's leading ESC
manufacturer
• Ready to install — no soldering required
• Aluminum construction helps with heat dissipation.
• Adjustable high-power BEC
• Ready to install — no soldering required
• Aluminum construction helps with heat dissipation.
• Adjustable high-power BEC
Specifications
- Application
- Losi Mini LMT
- Auto Cutoff
- Yes
- BEC
- Yes
- BEC Continous Current
- 2A
- BEC Type
- Switching
- Connector Type
- IC2
- Forward
- Yes
- Input Voltage
- 2S LiPo
- LiPo Compatibility
- 2S, 3S
- Maximum Continuous Current
- 30A
- Motor Type
- Brushless
- Number of Cells
- 2-3S LiPo, 6-9 Cells NiMH
- Number of Poles
- 4
- Outer Diameter
- 0.94" (24 mm)
- Output
- 6V/7.4V Adjustable, Continuous Current 2A
- Overload Protection
- Yes
- Product Length
- 1.8" (46 mm)
- Product Weight
- 2.7oz.
- RPM/Volt (Kv)
- 5200Kv
- Shaft Diameter
- 0.07" (2 mm)
- Shaft Length
- 0.53" (13 mm)
