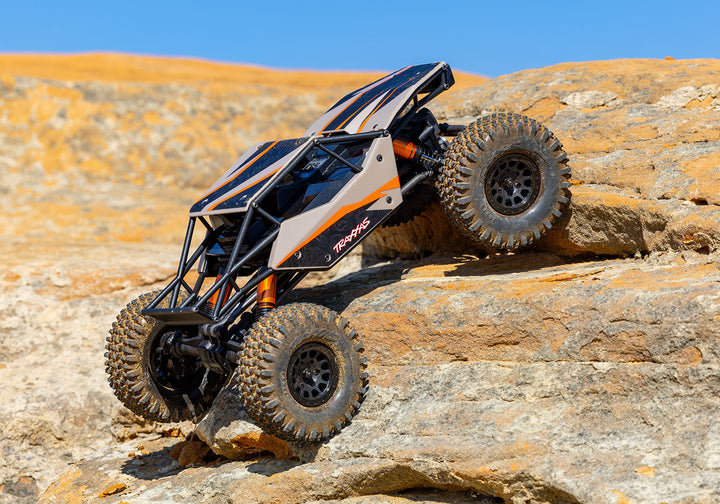

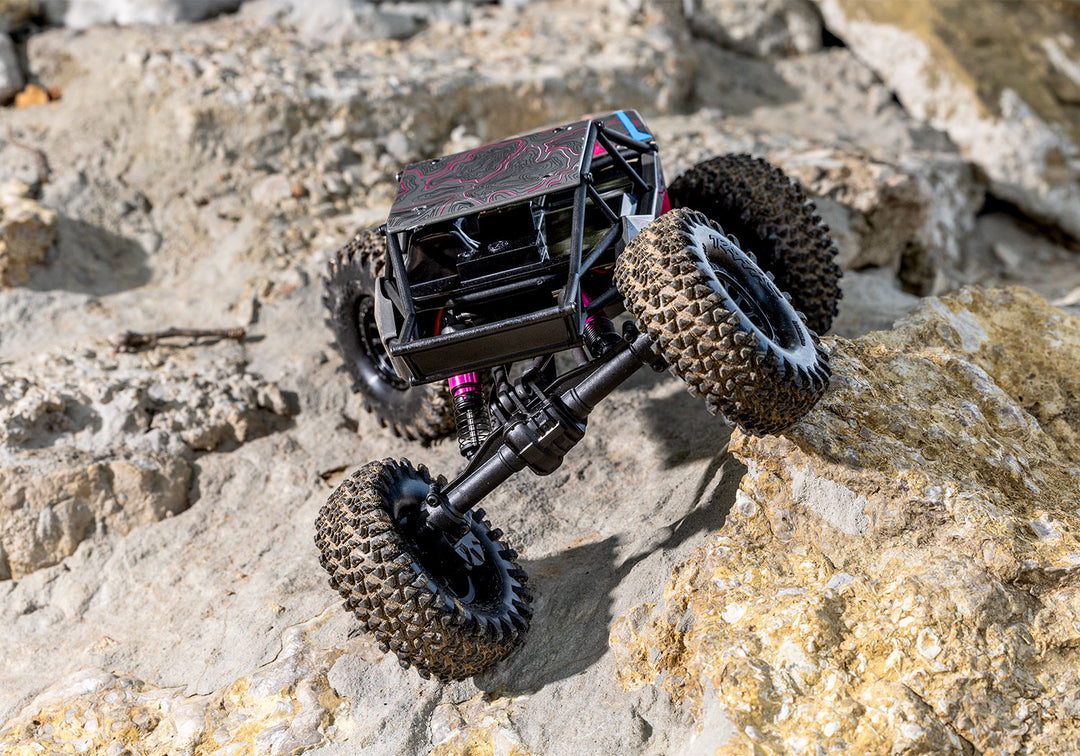

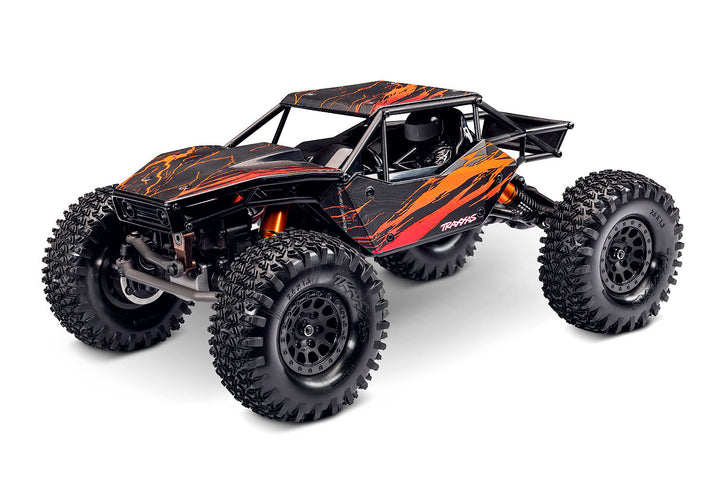

TXC-4M Extreme Crawler 1/18 Model Traxxas 120074-1 October 30 - In-Store Official On-Sale Date
Part#
TRA120074-1-BLUE
Regular price$299.95
Free standard shipping on all orders over $25!
In-Store Purchase Only!

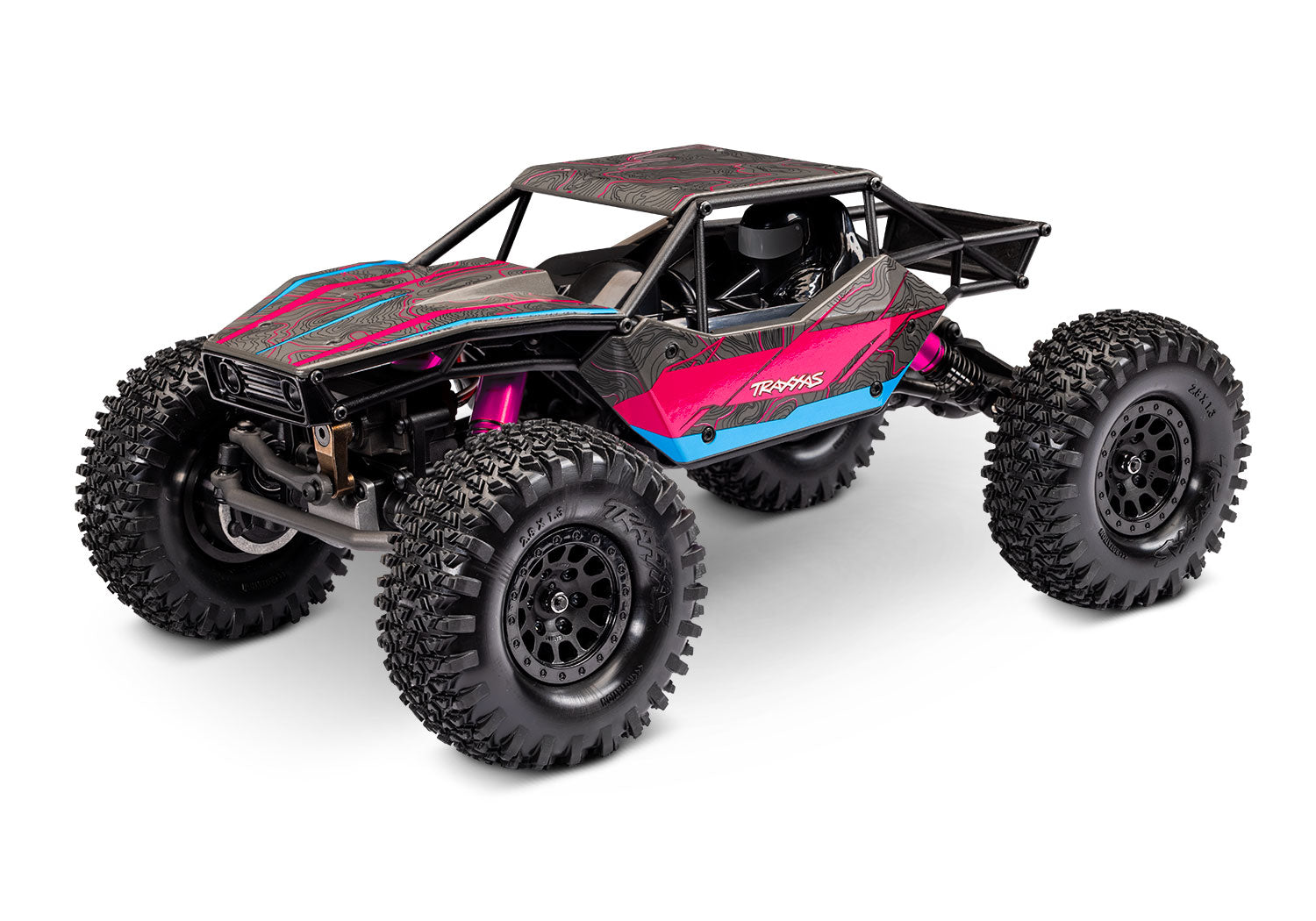

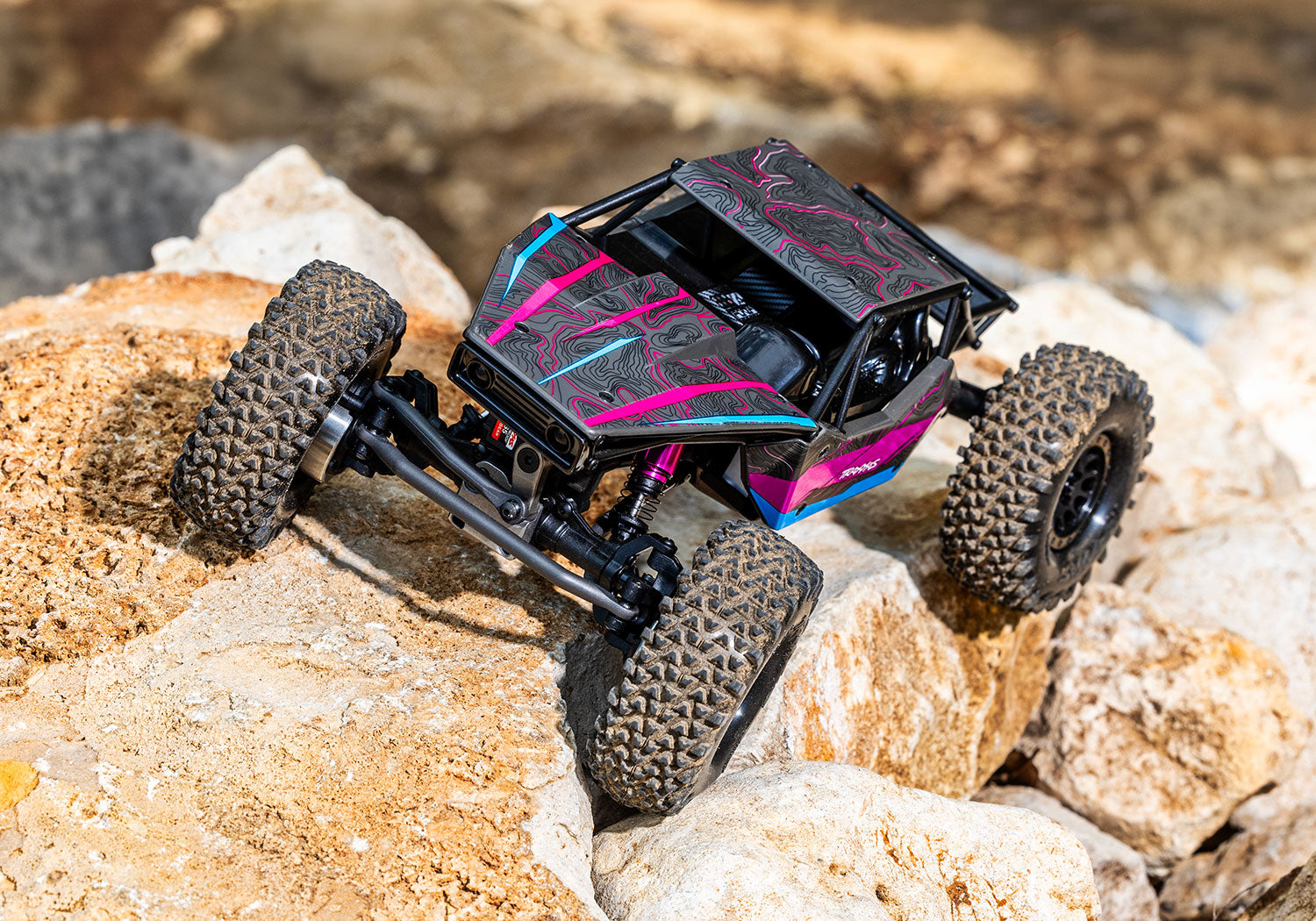

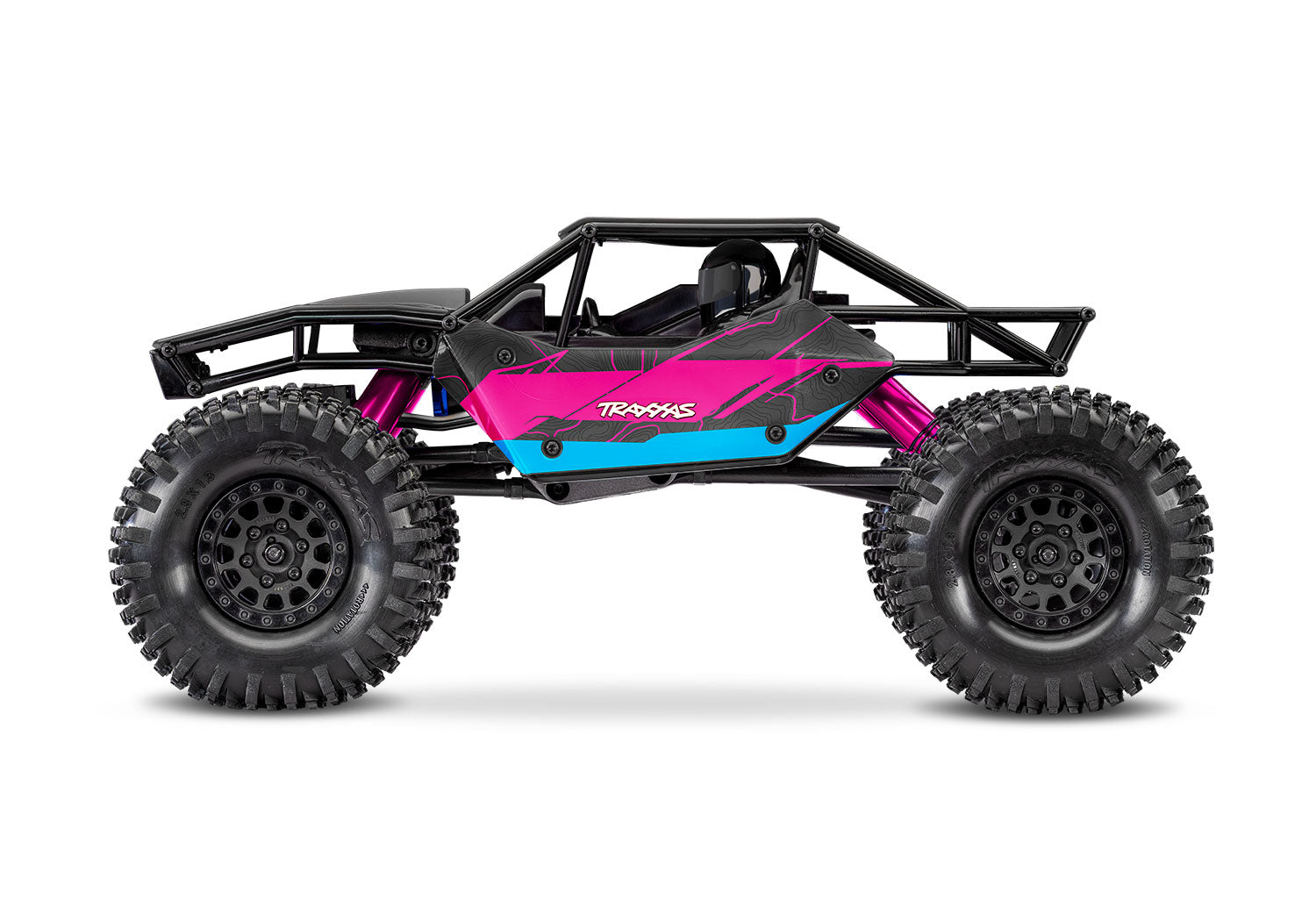

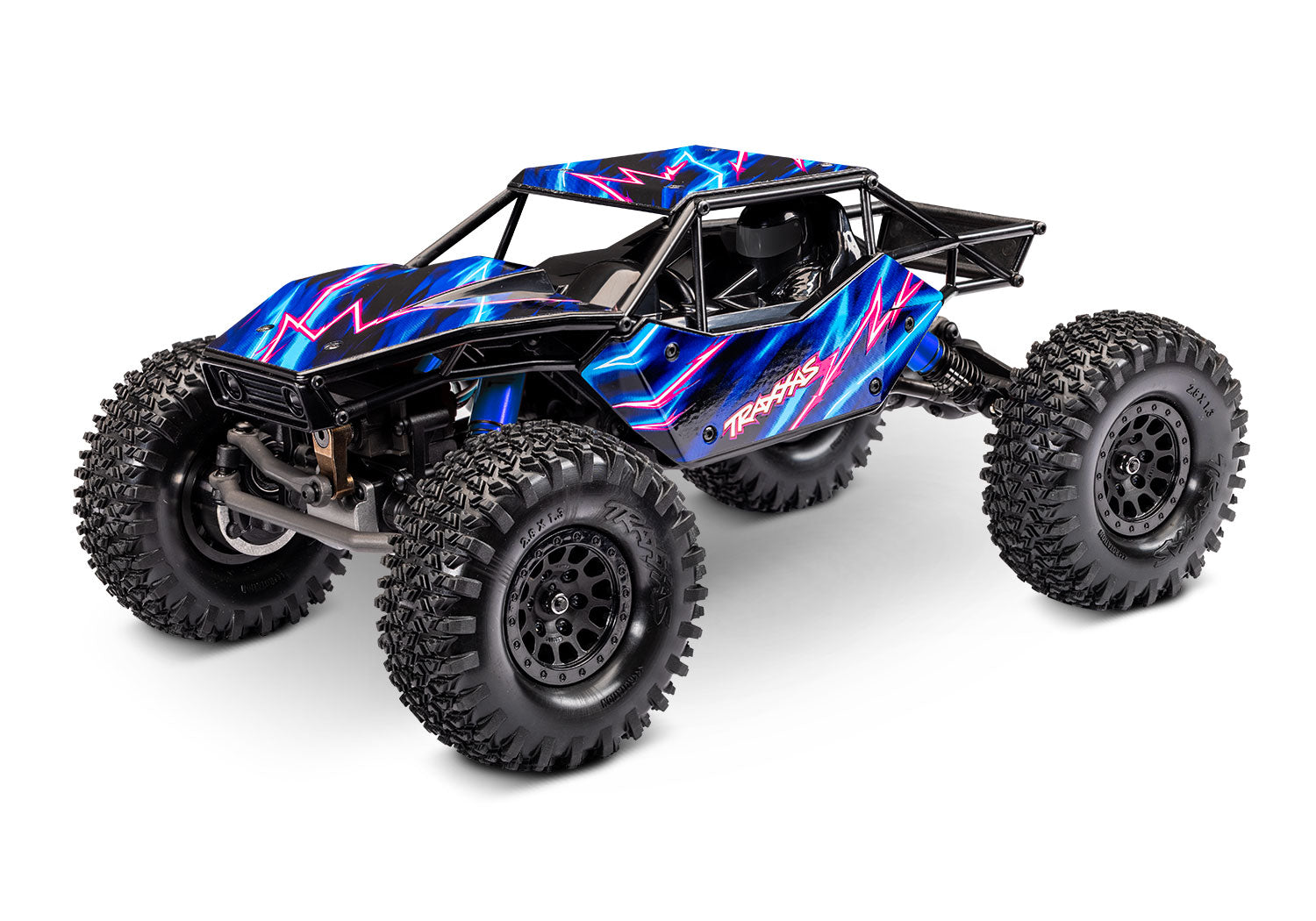

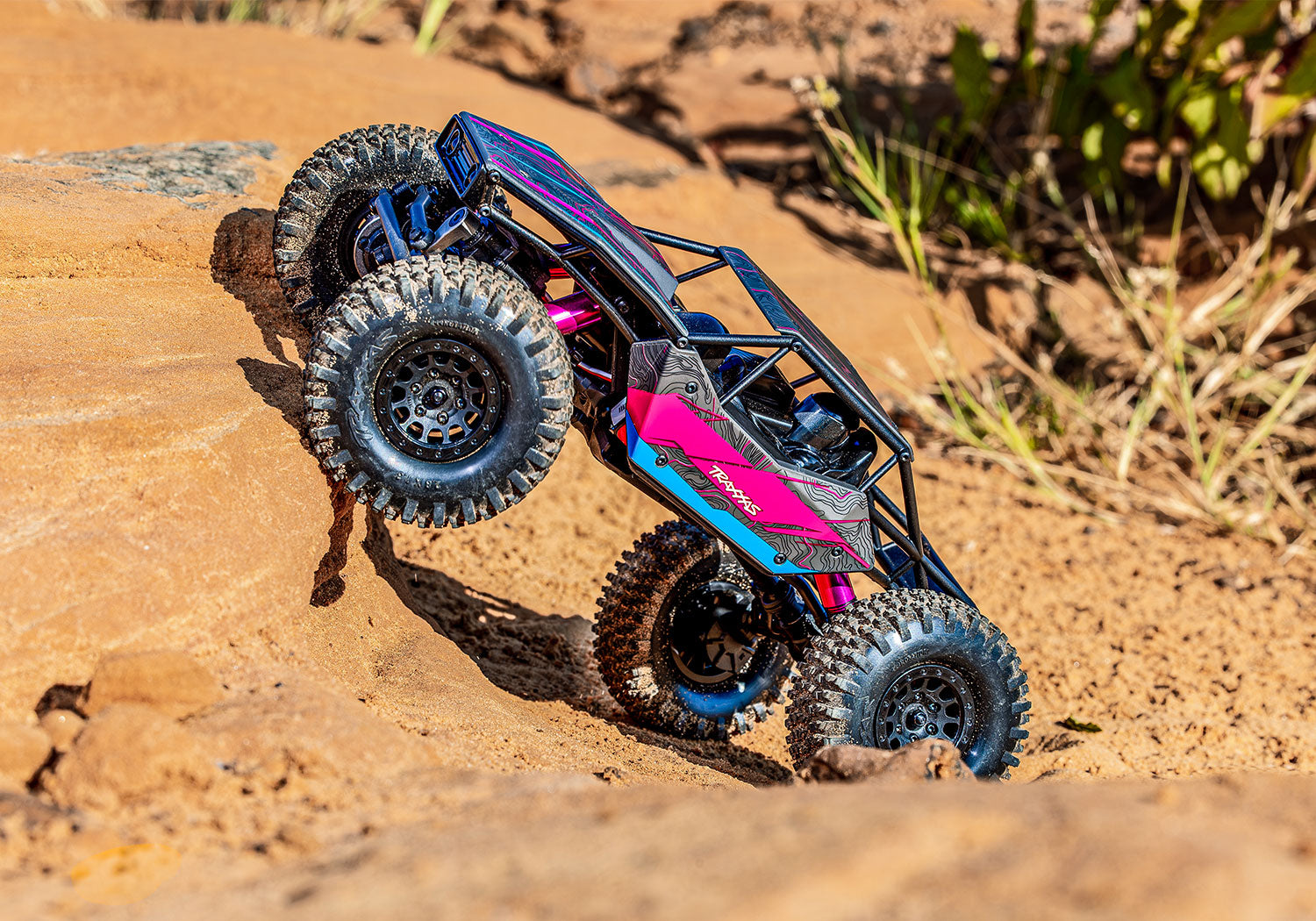

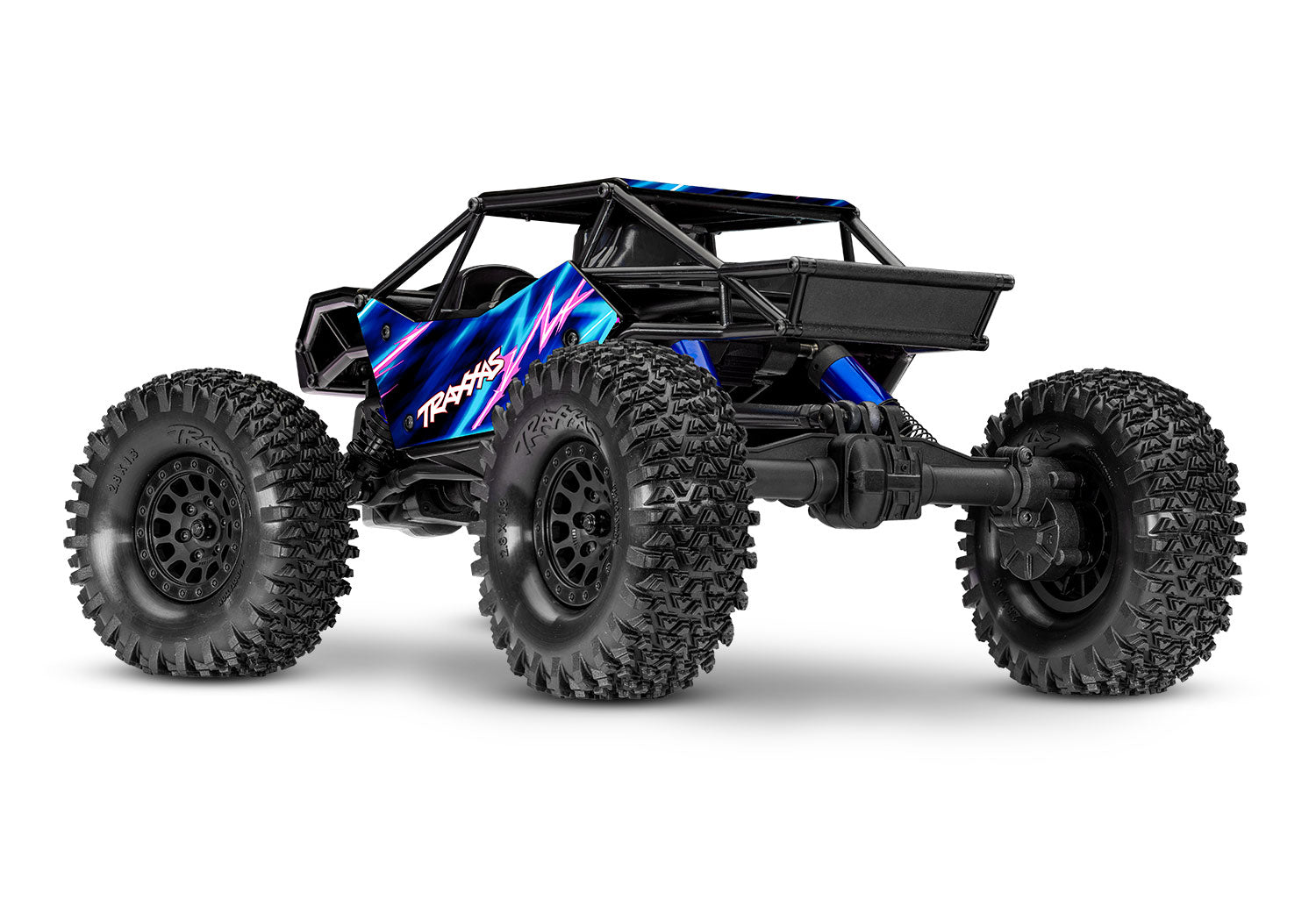

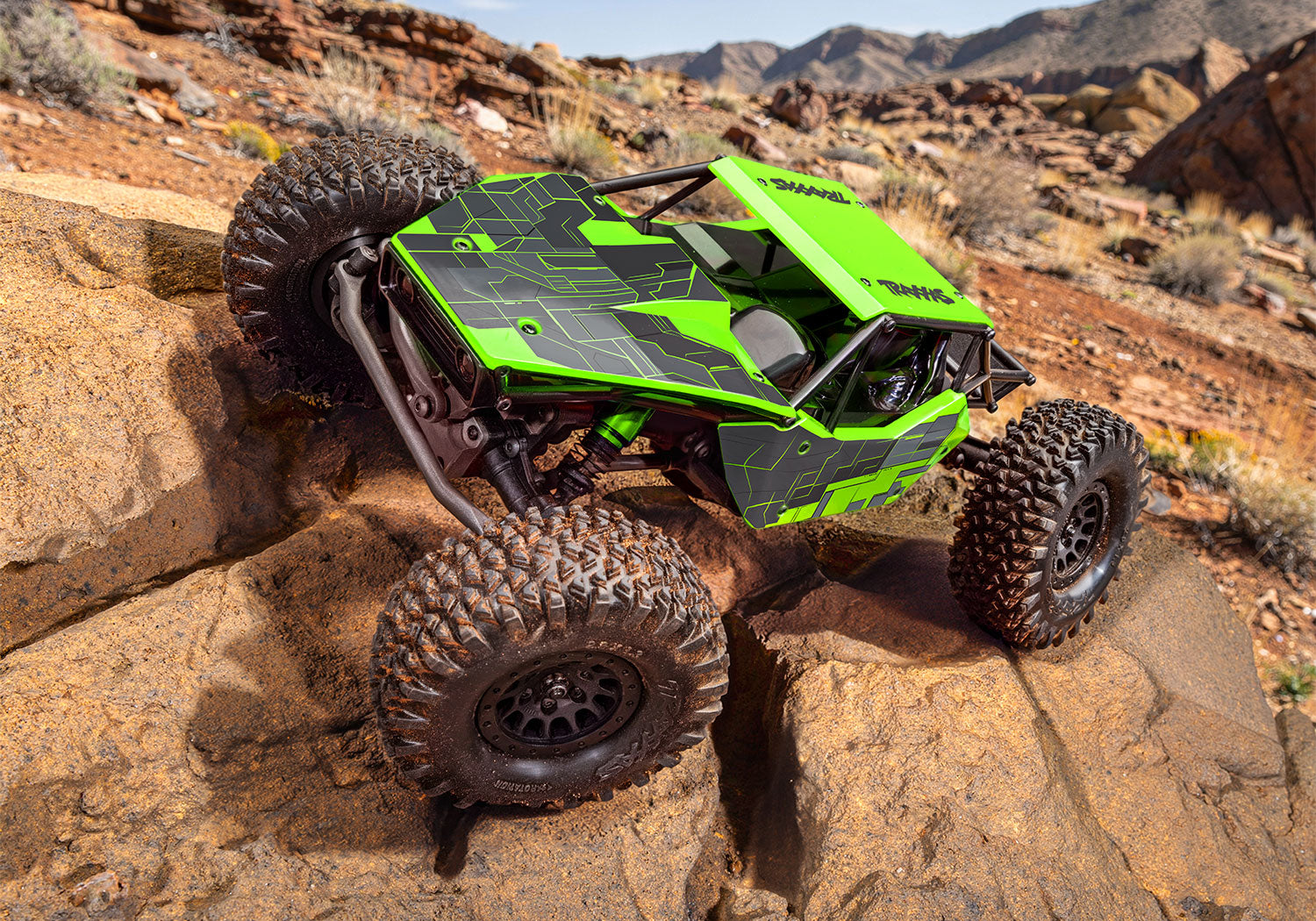

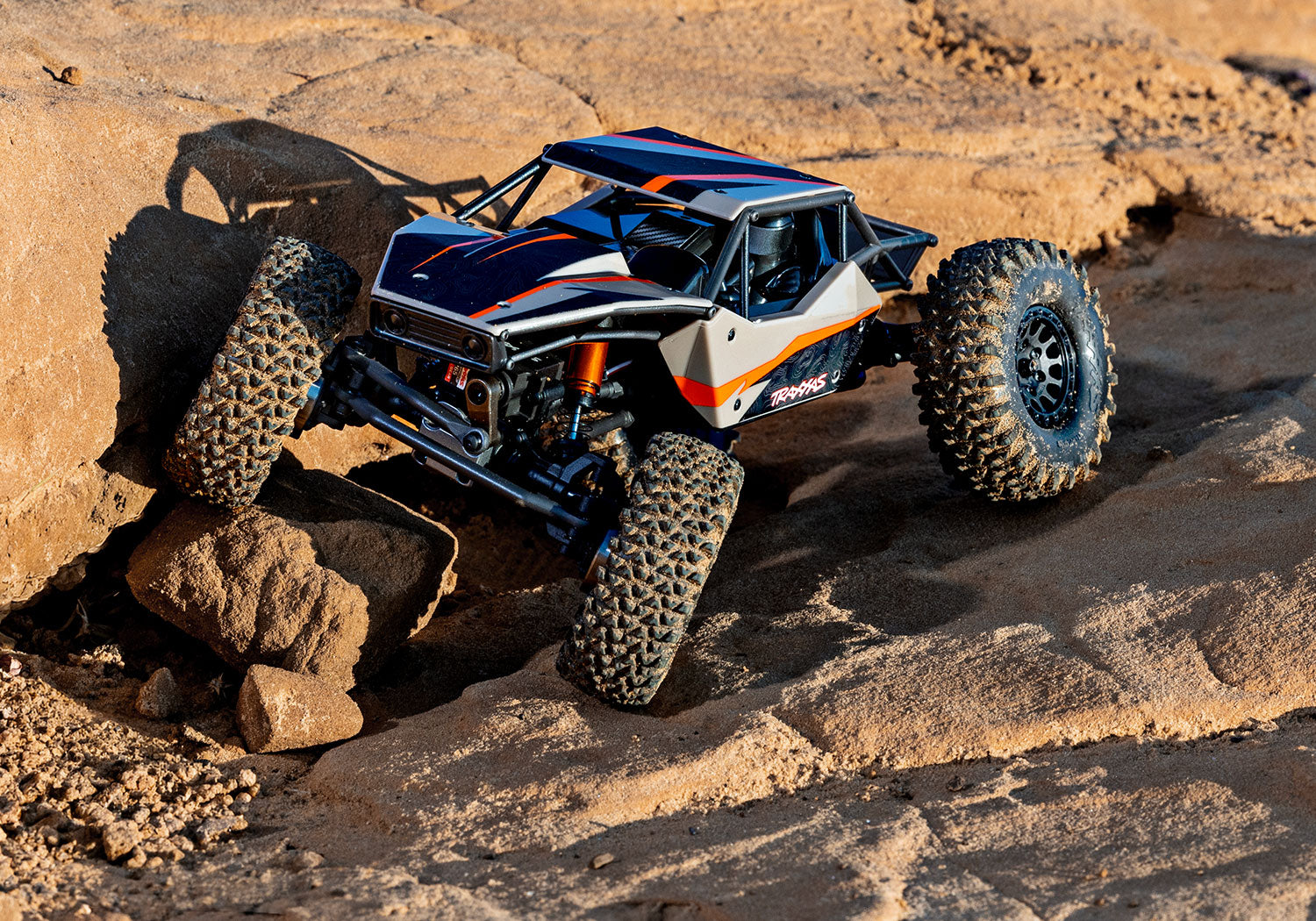

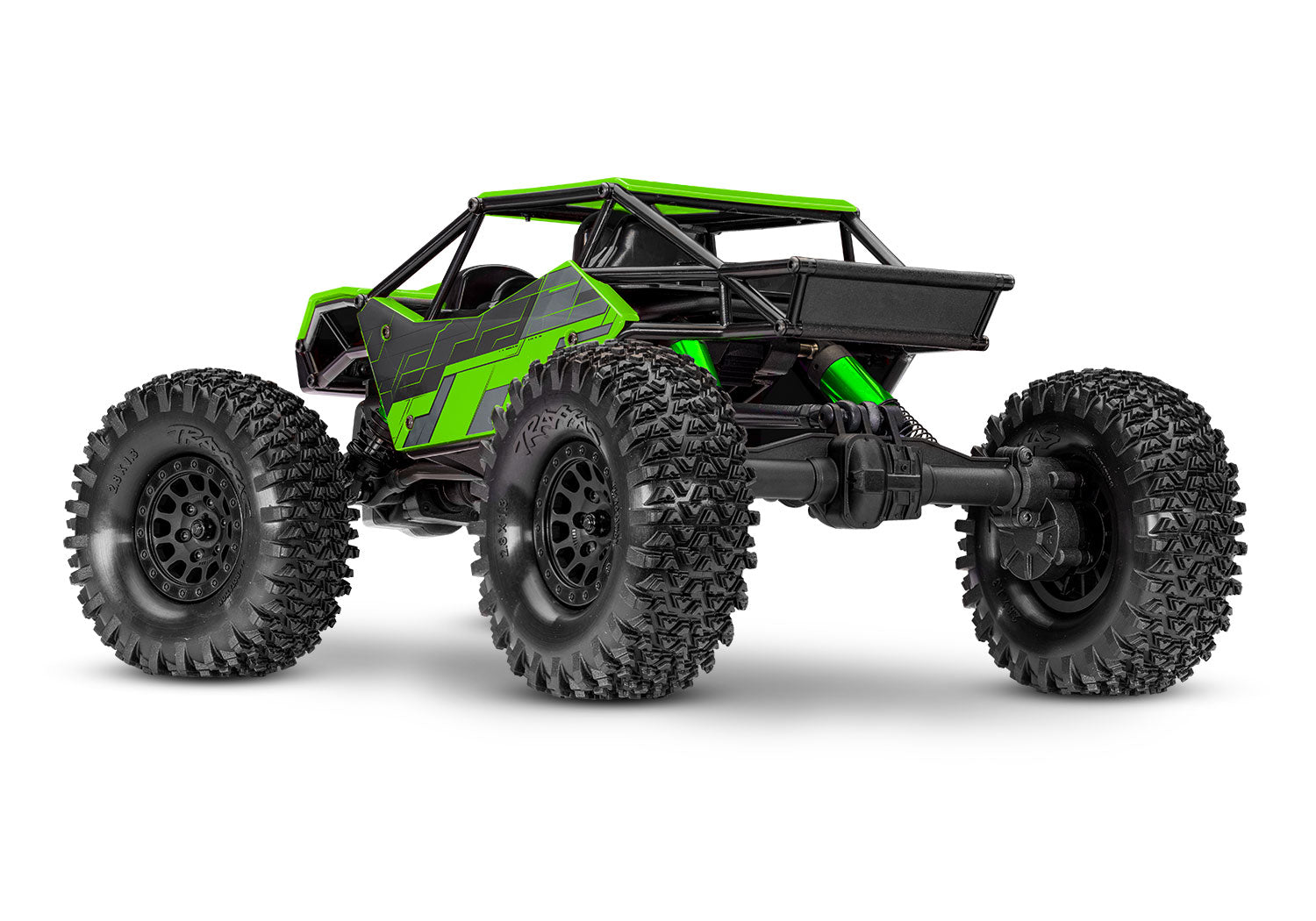

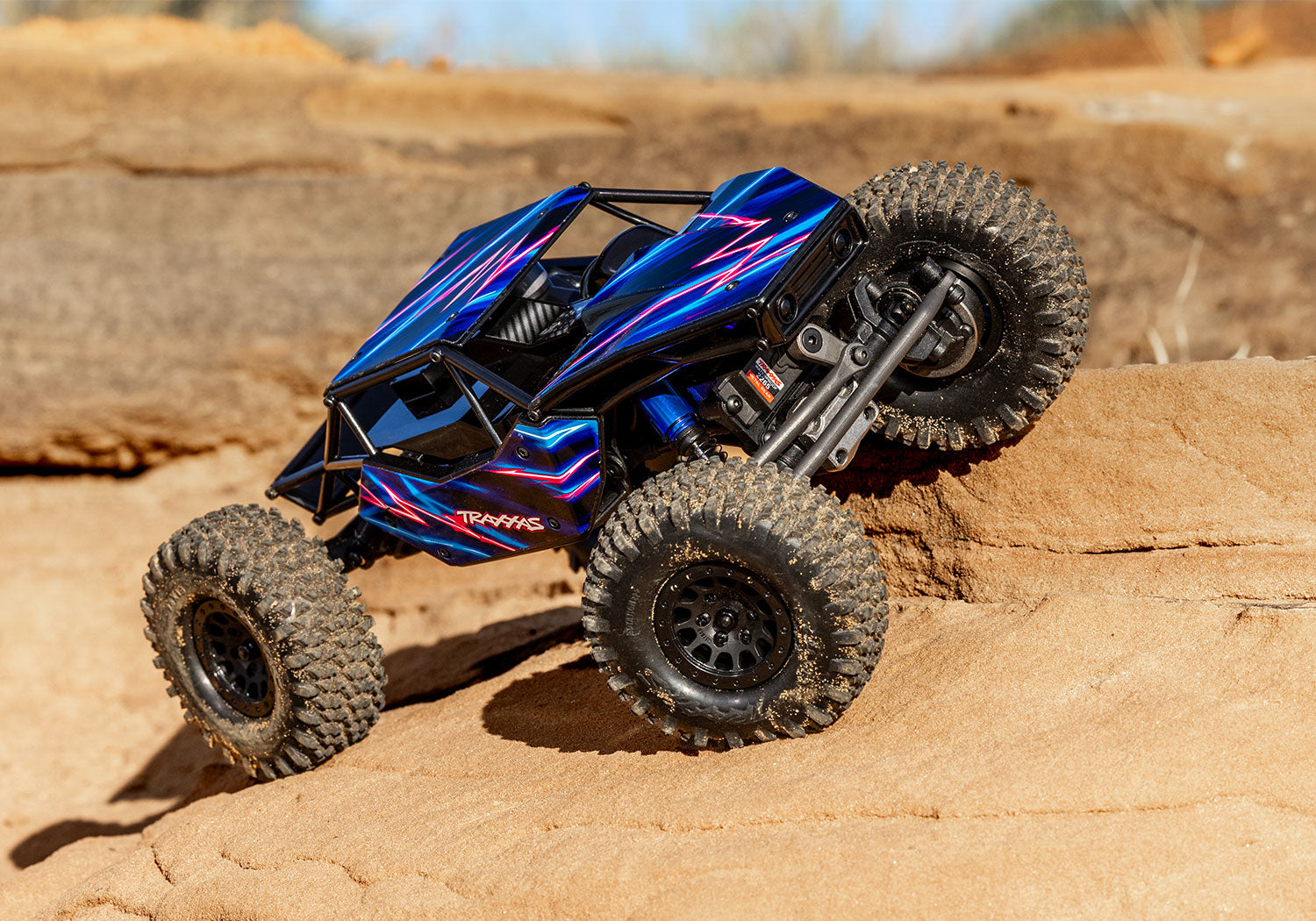

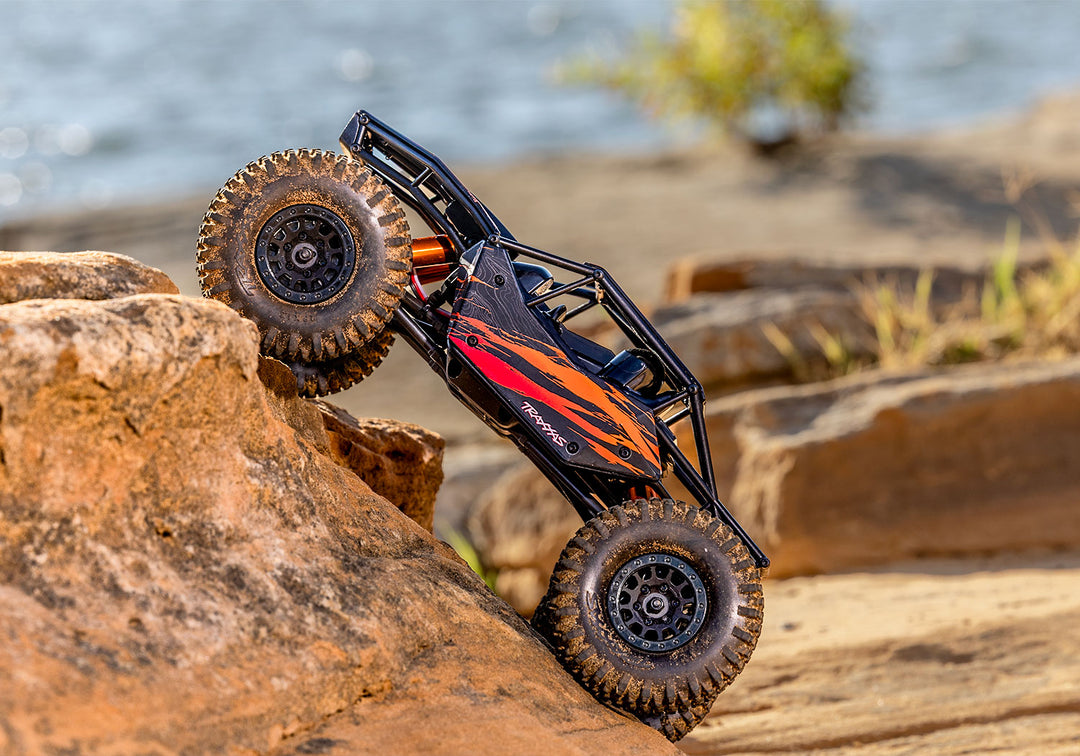

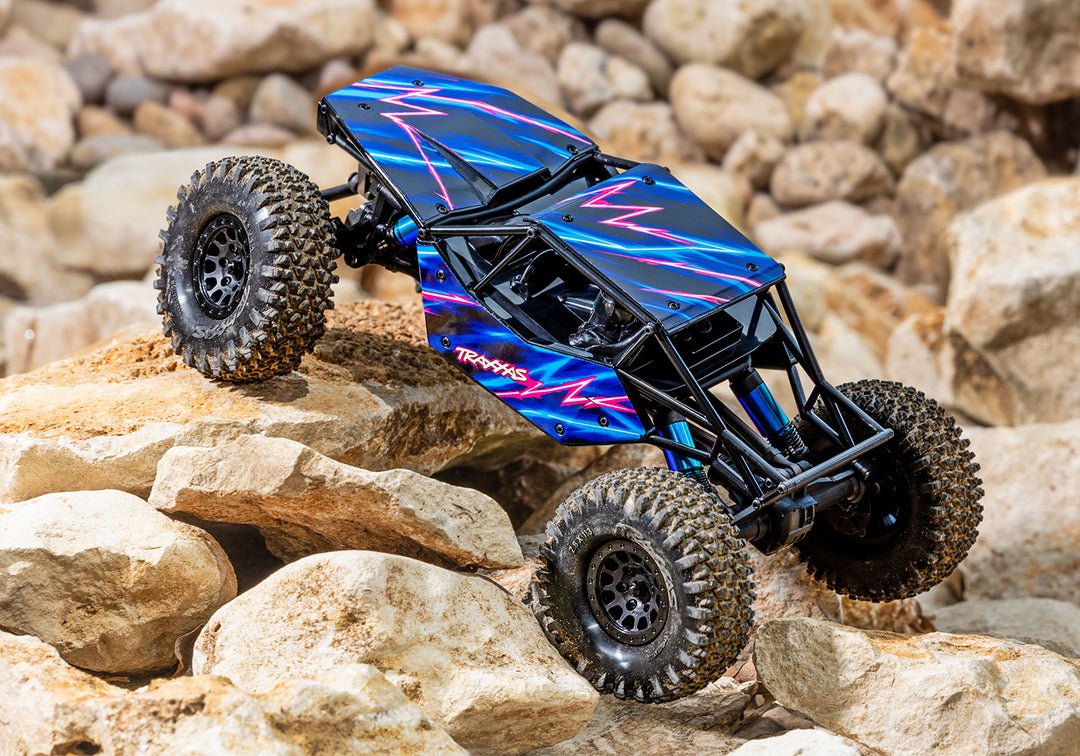

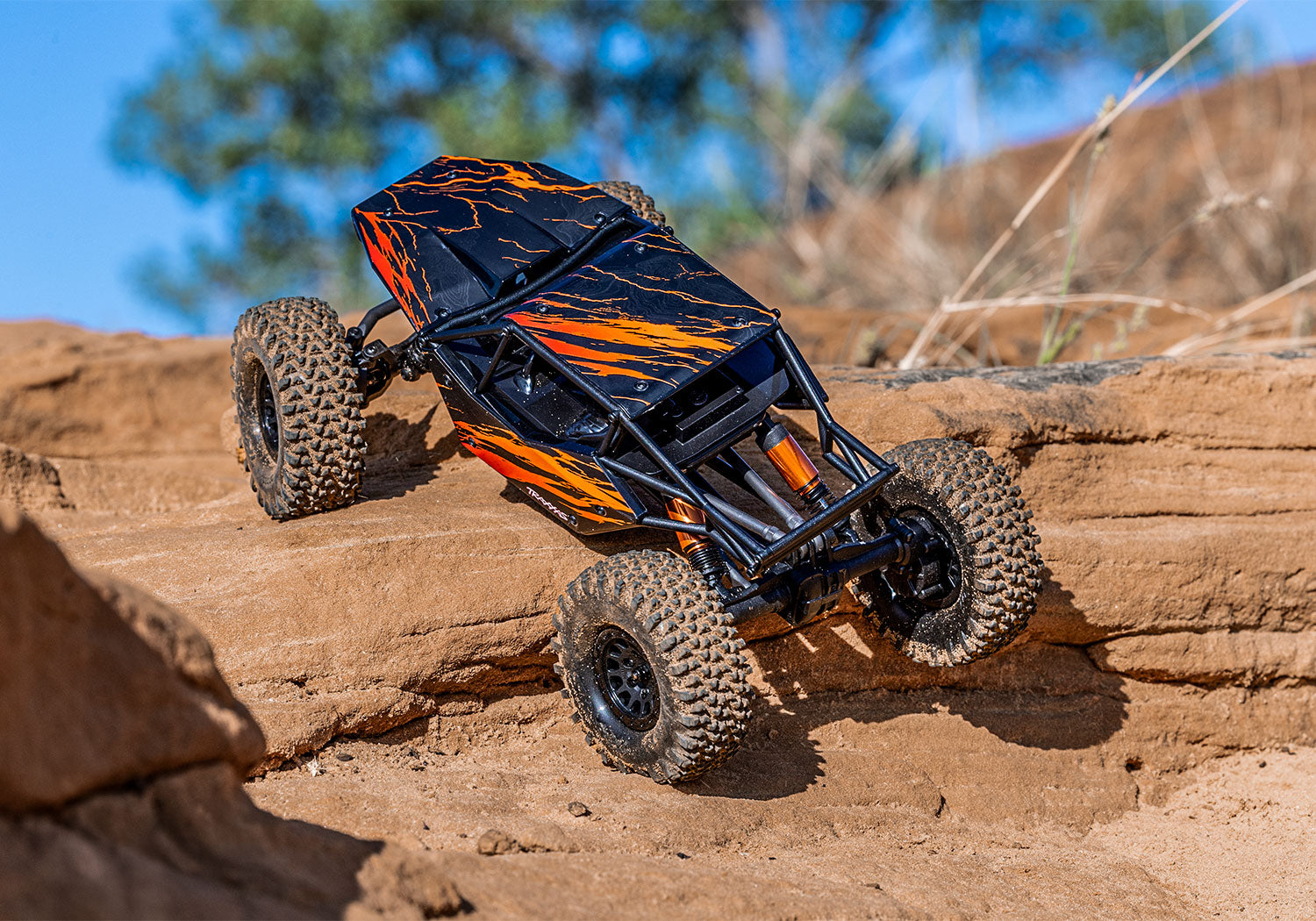

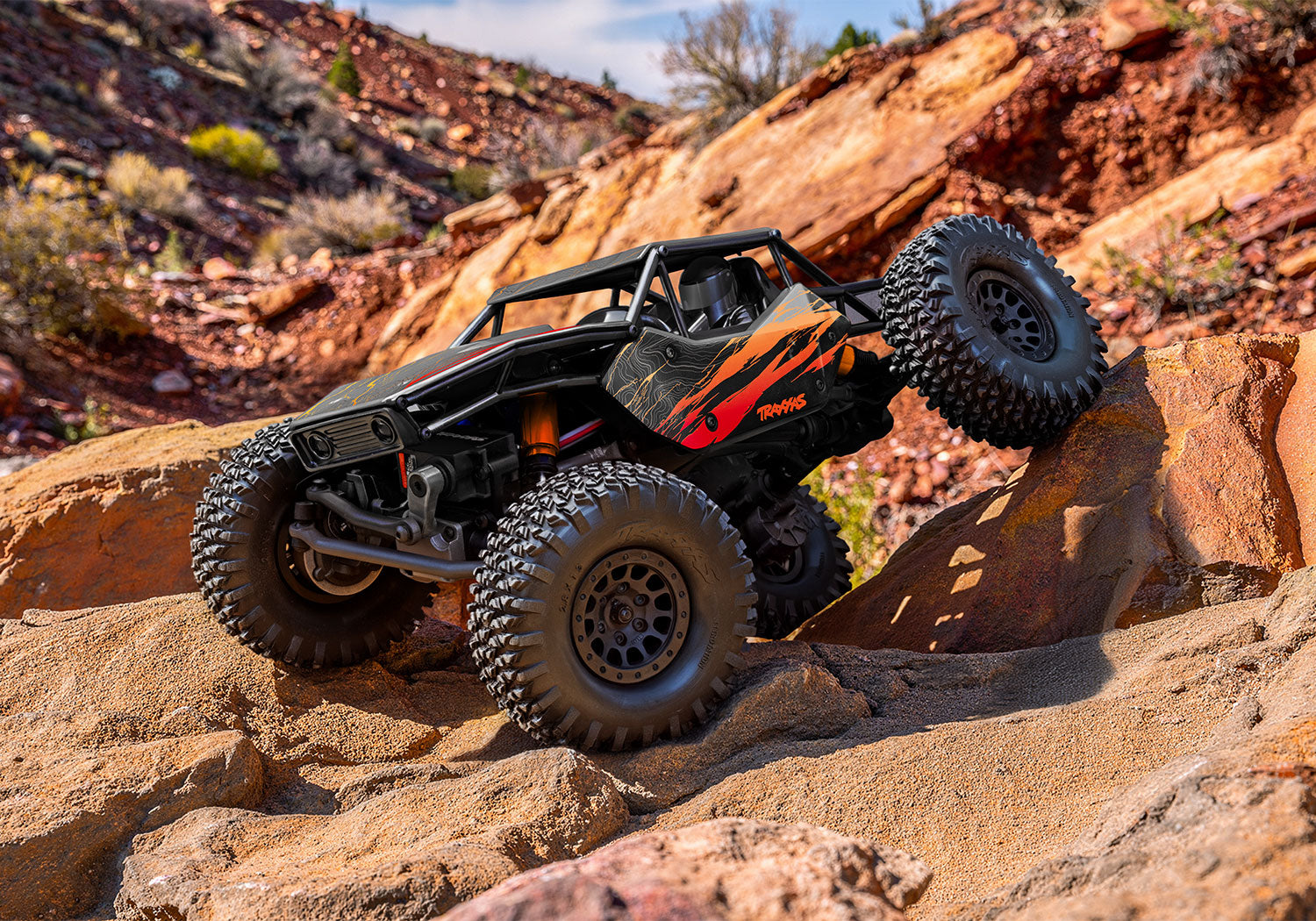

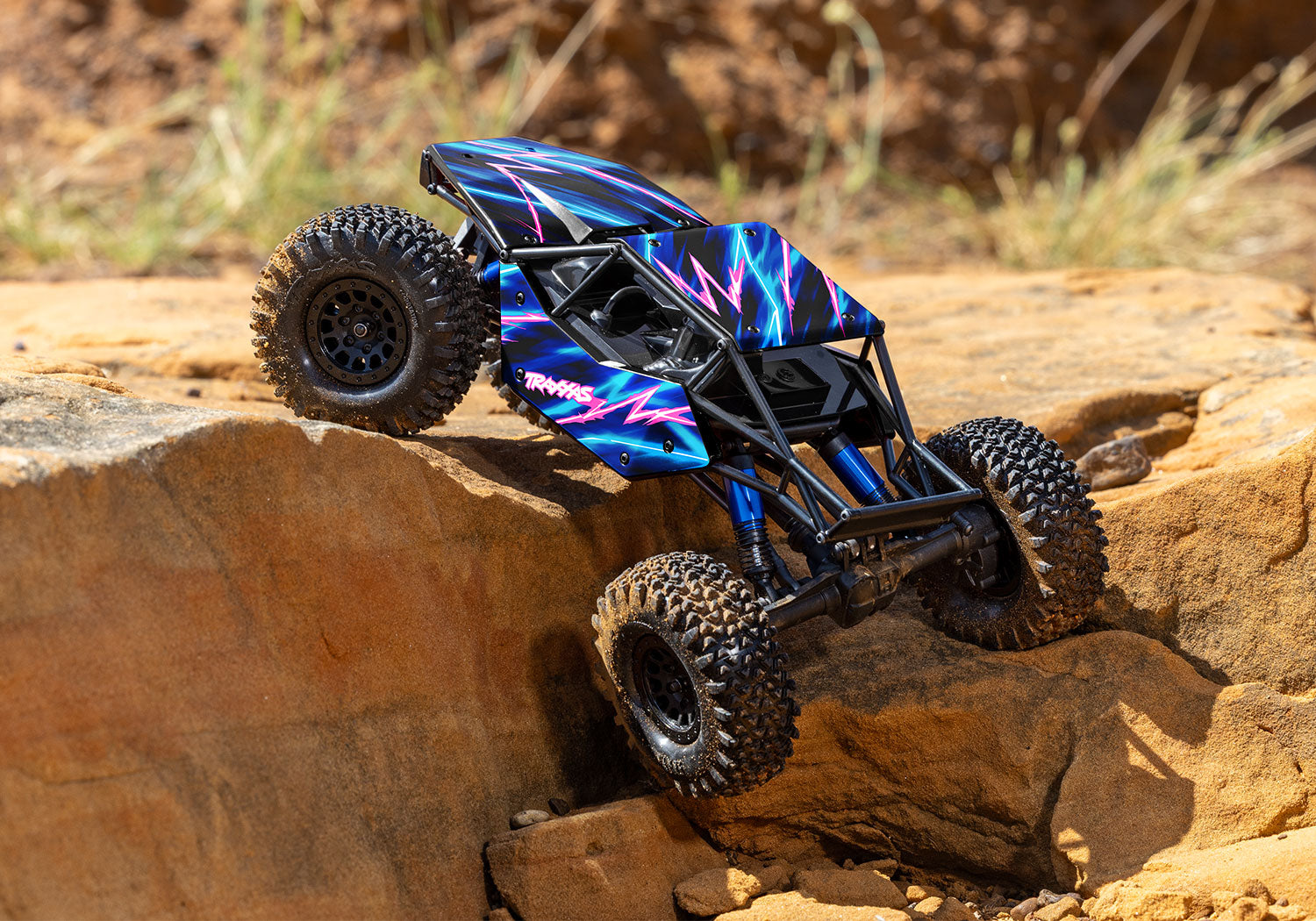

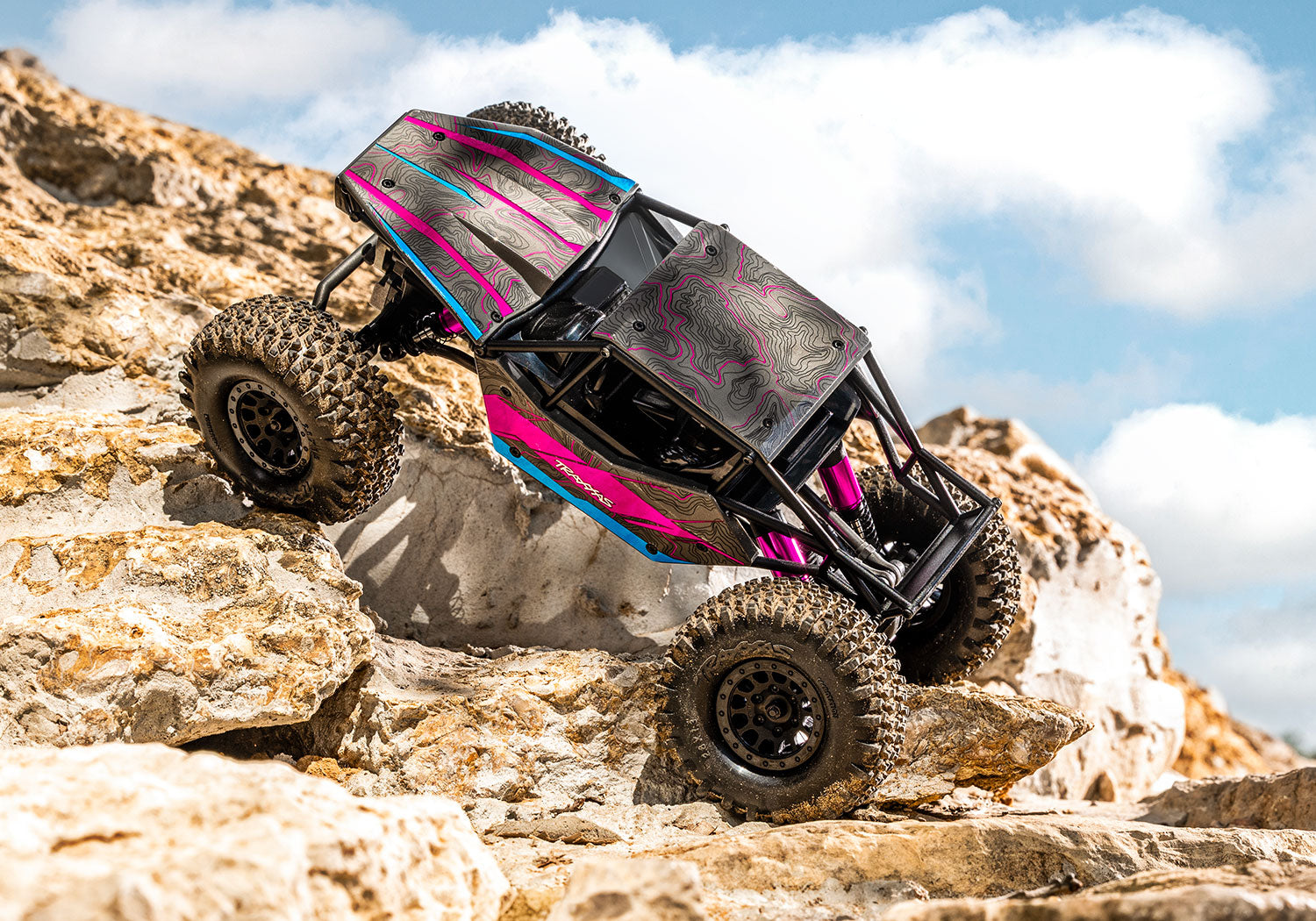

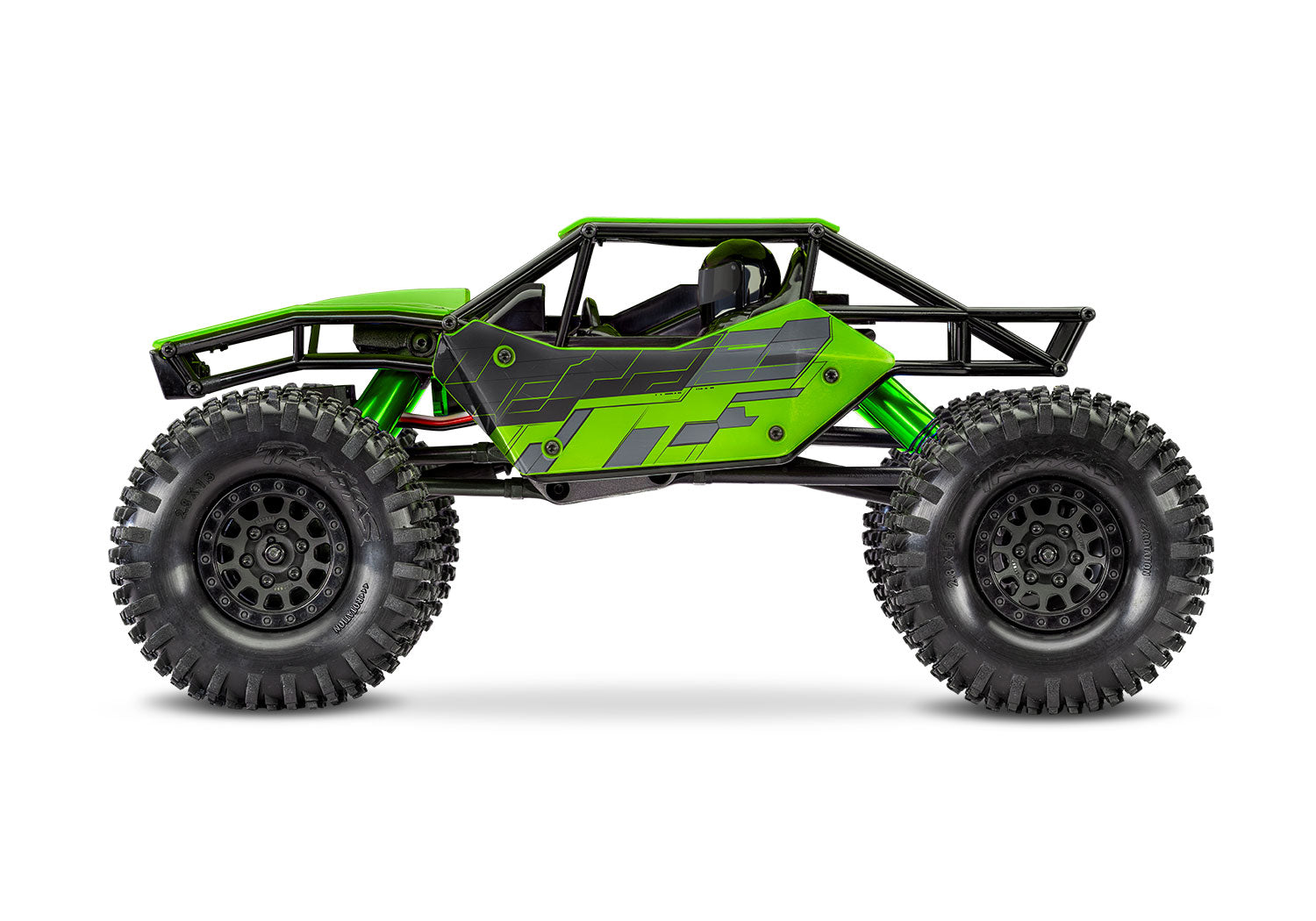

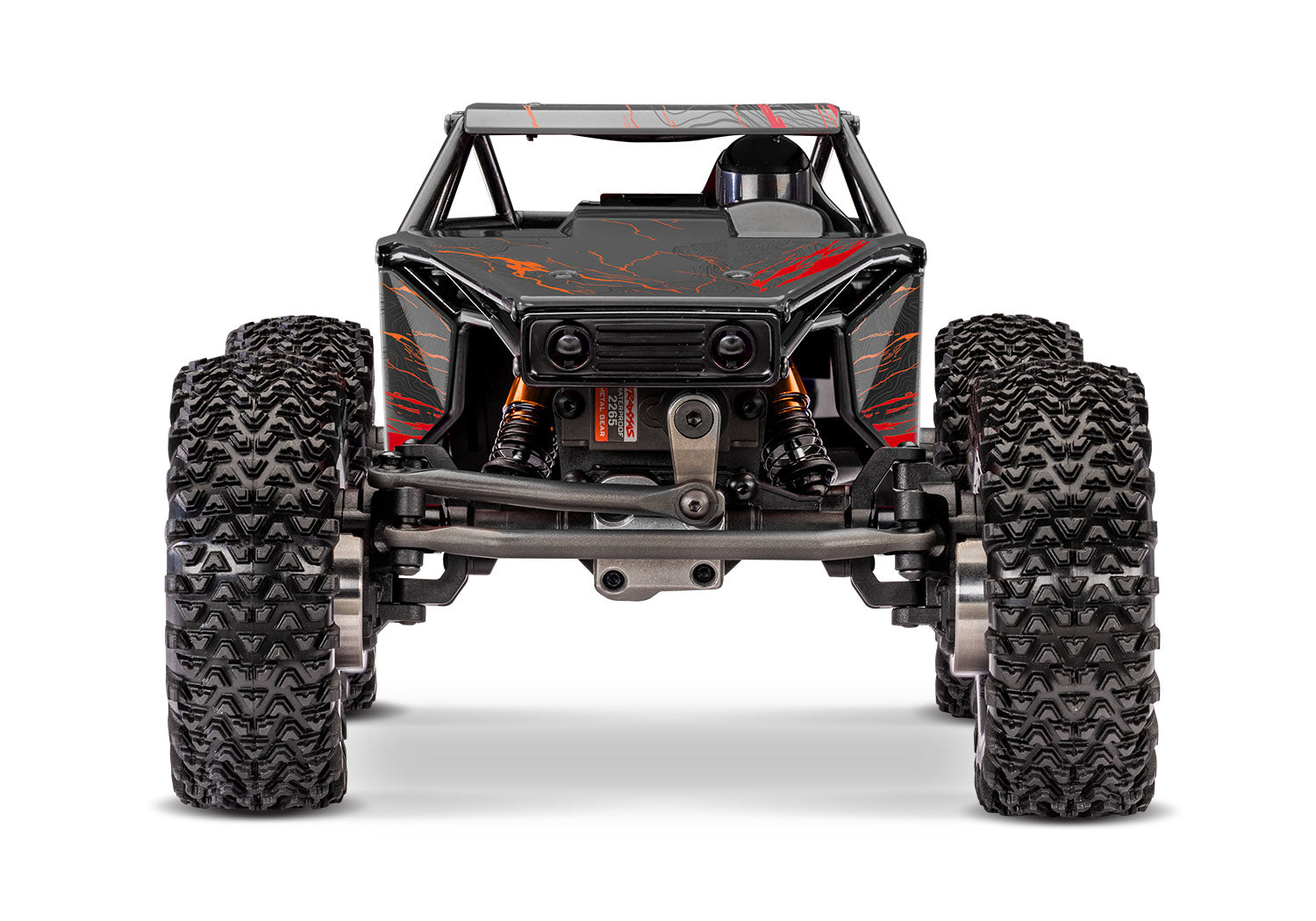

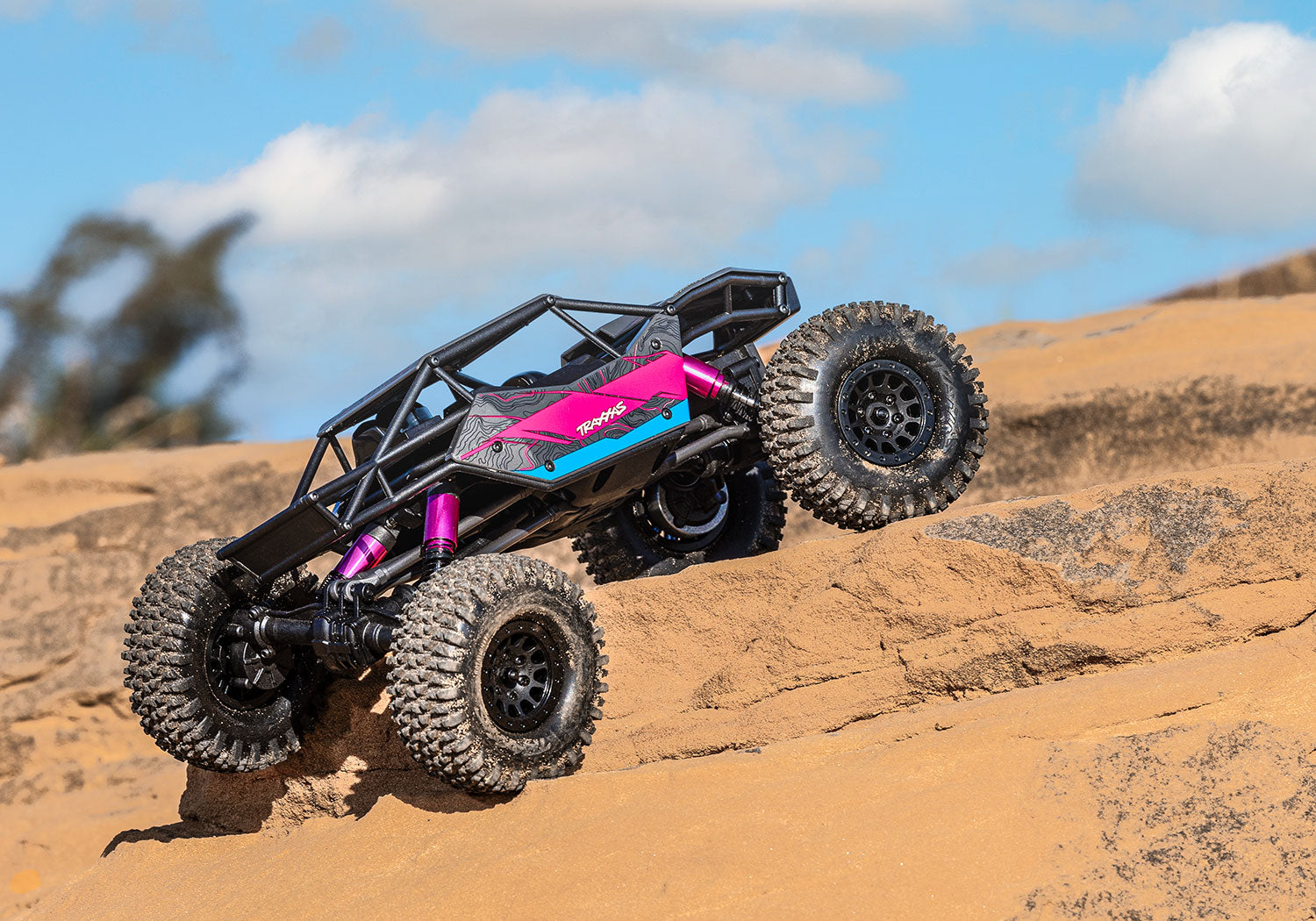

TXC-4M Extreme Crawler
https://youtu.be/HC_gCt62K9A?si=FirOaGZLL59FYfay
https://youtu.be/qle-dBTTDzM?si=BqAAoBvZGPmCI1XI

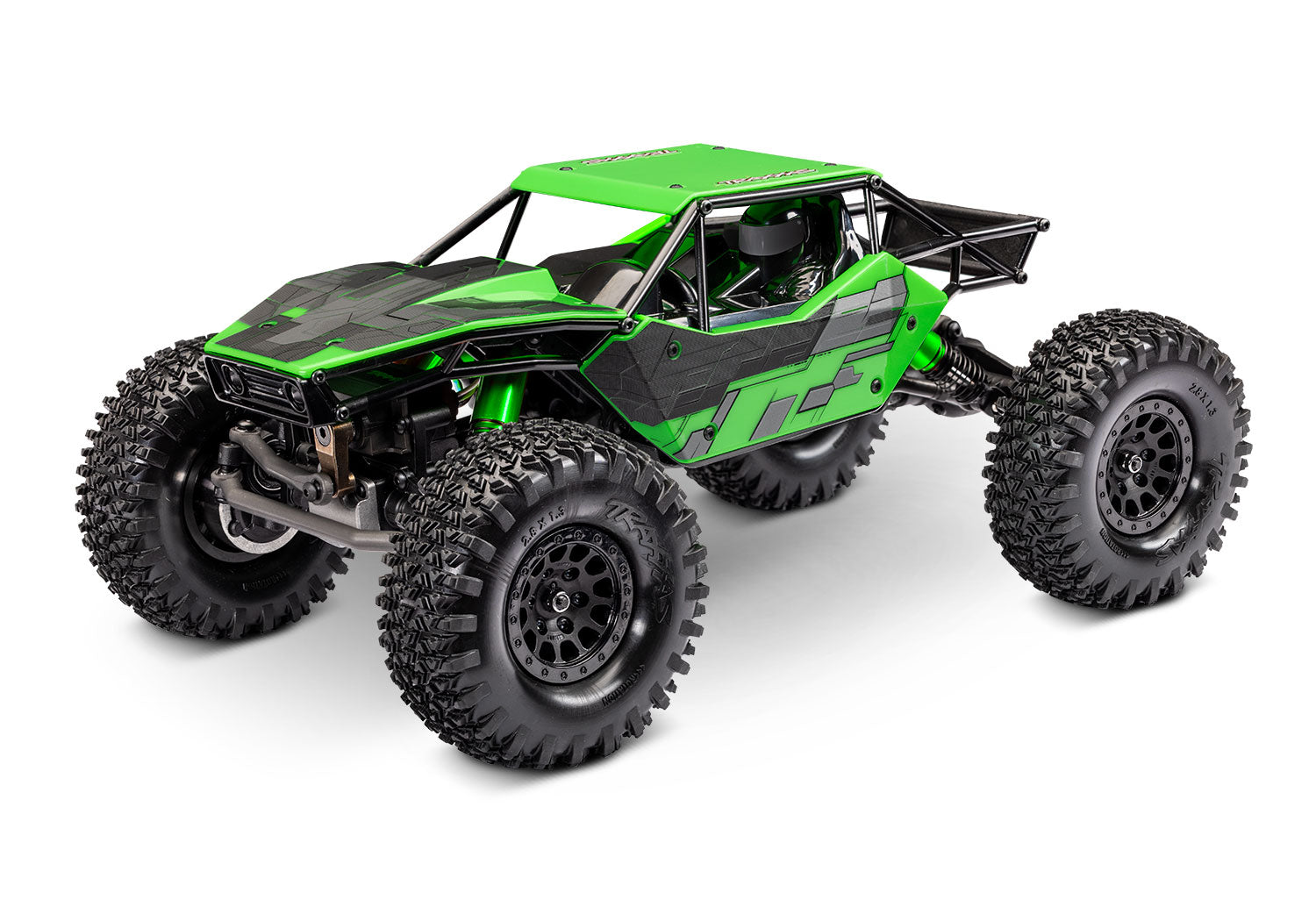

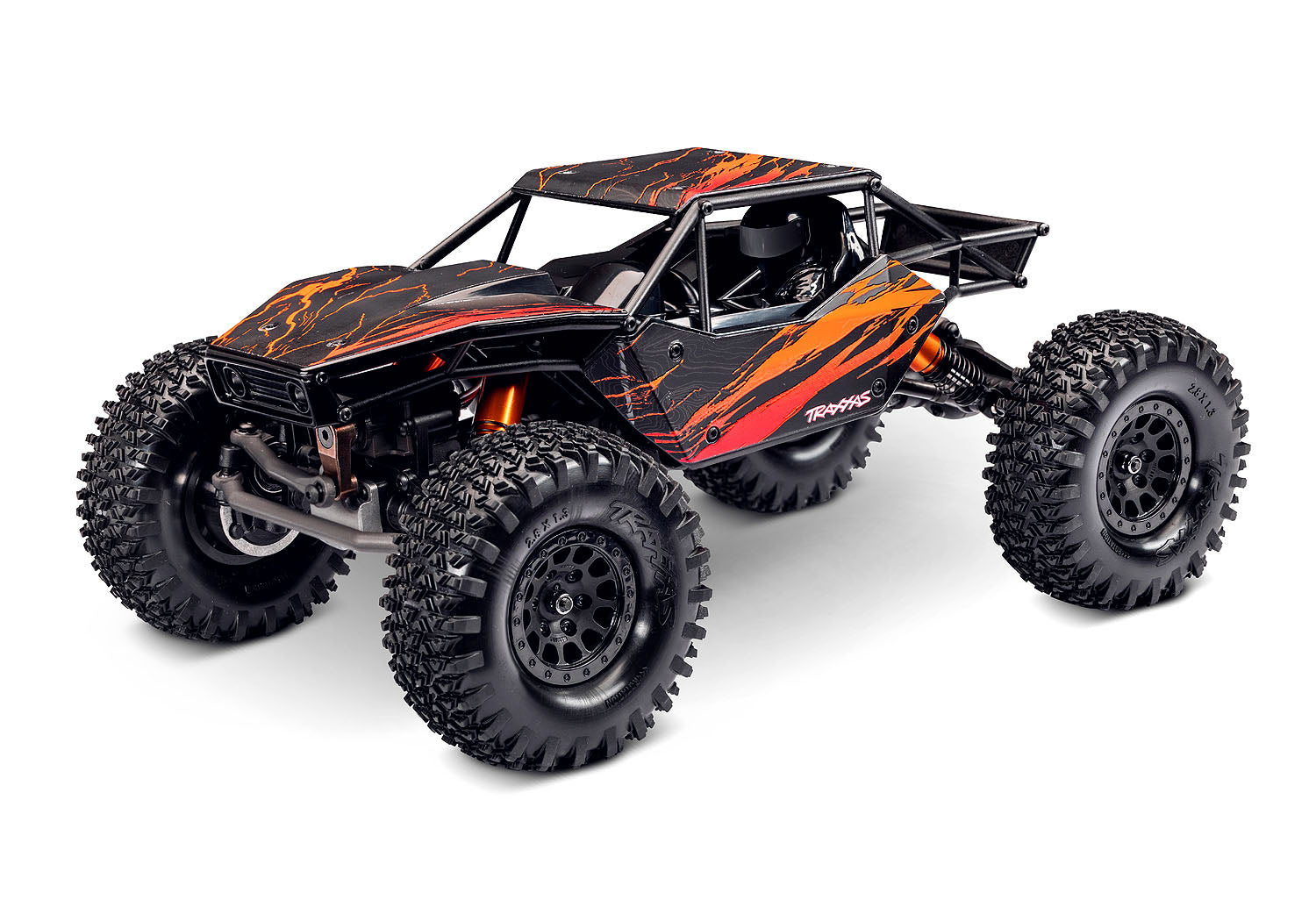

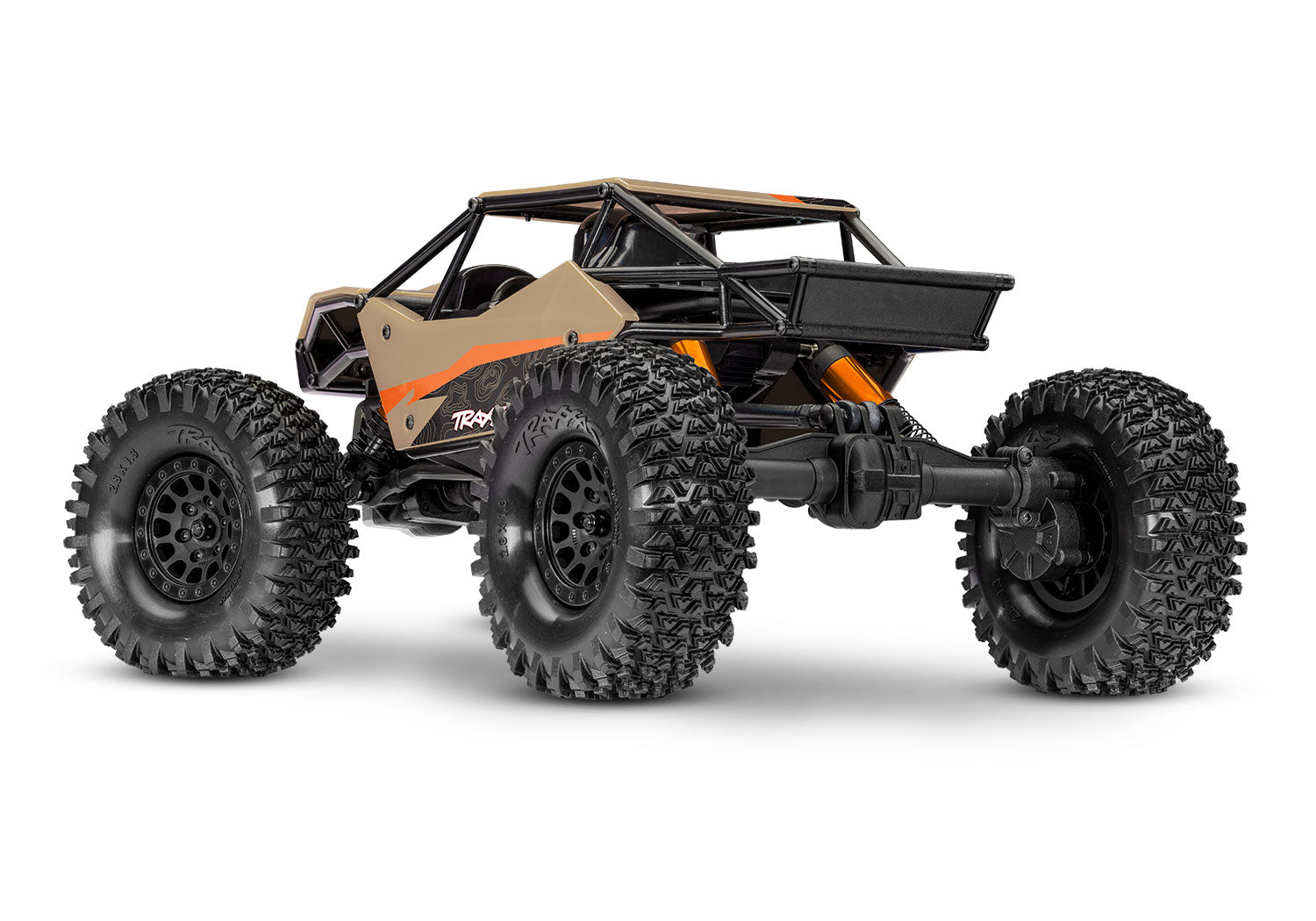

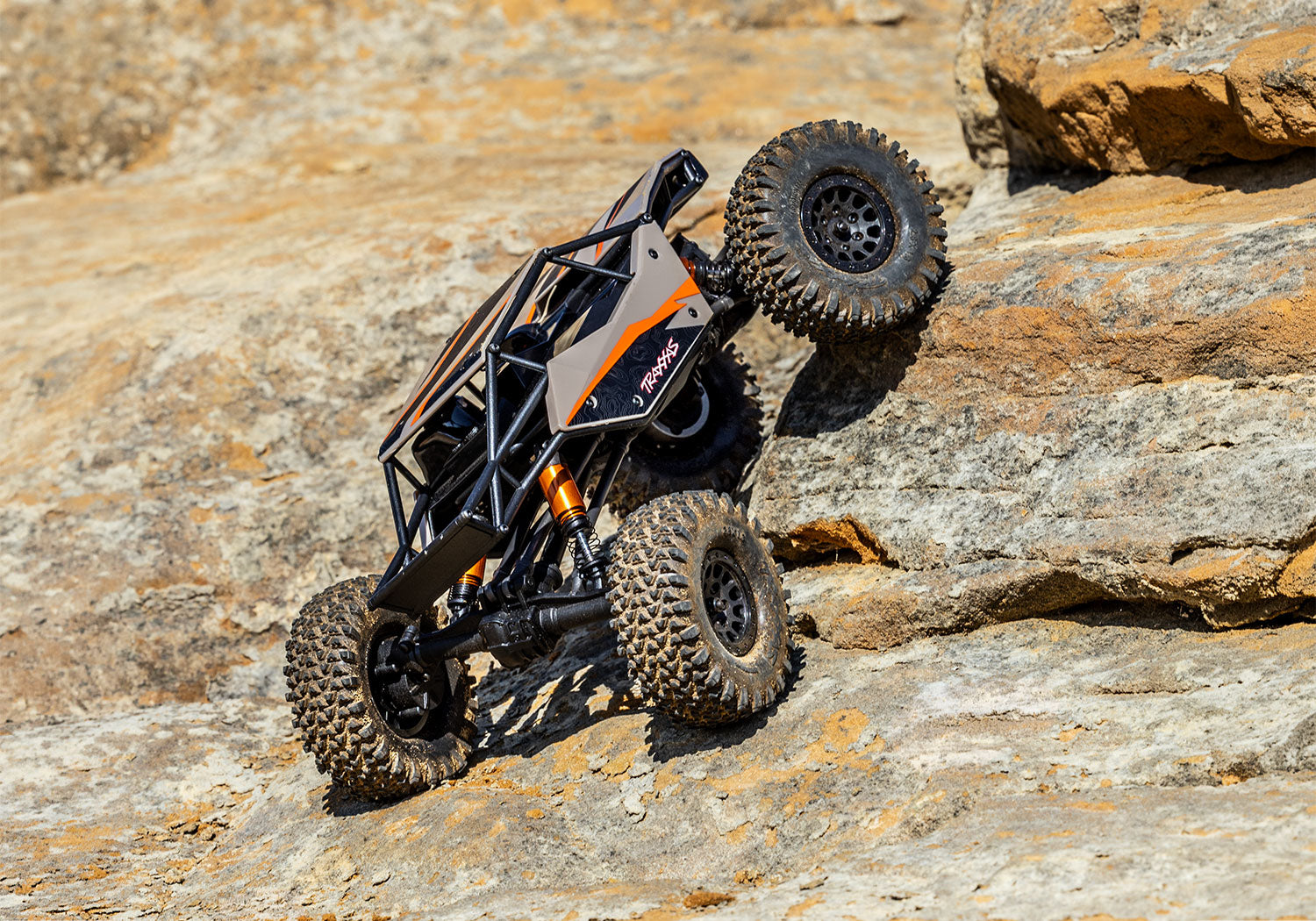

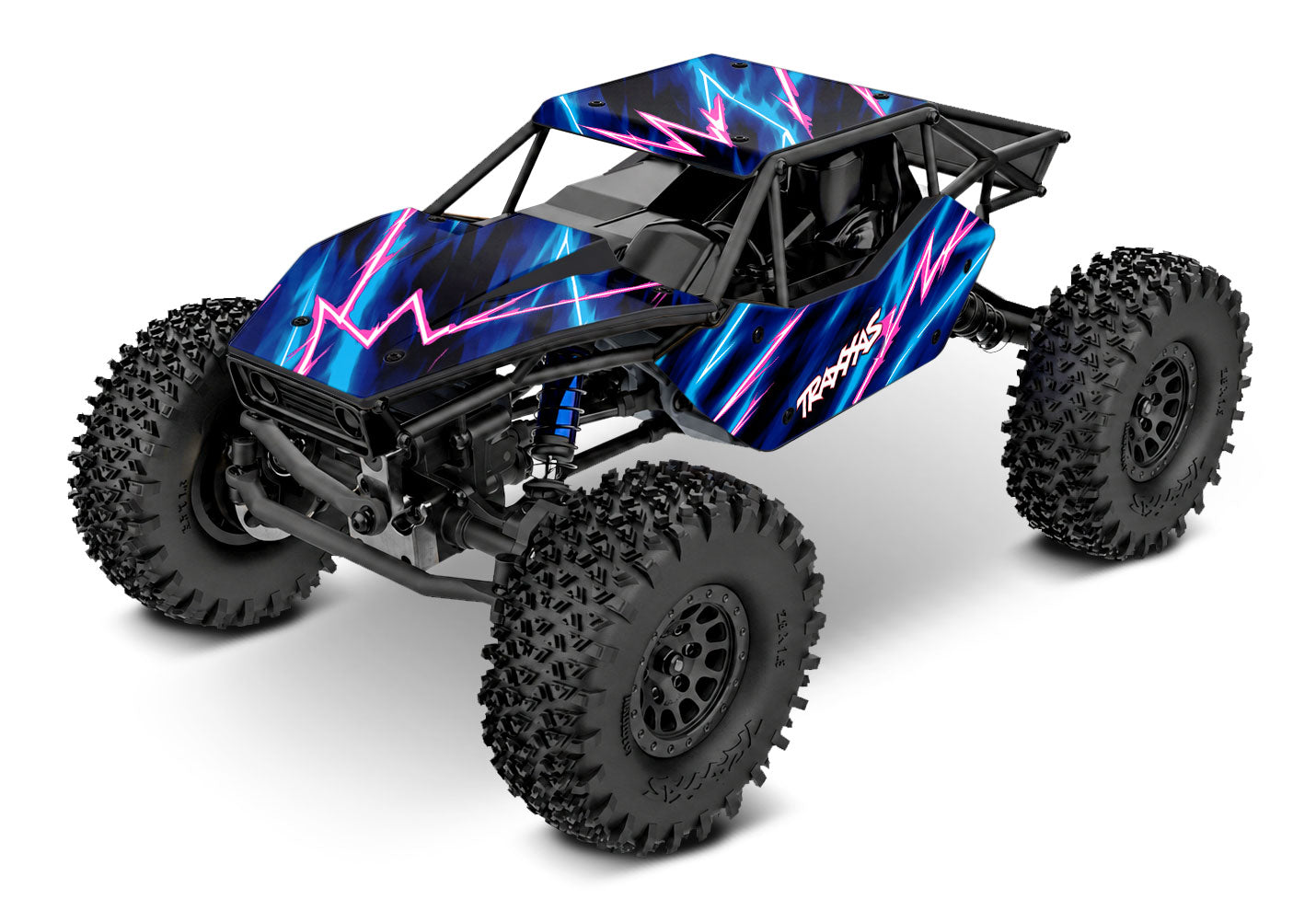

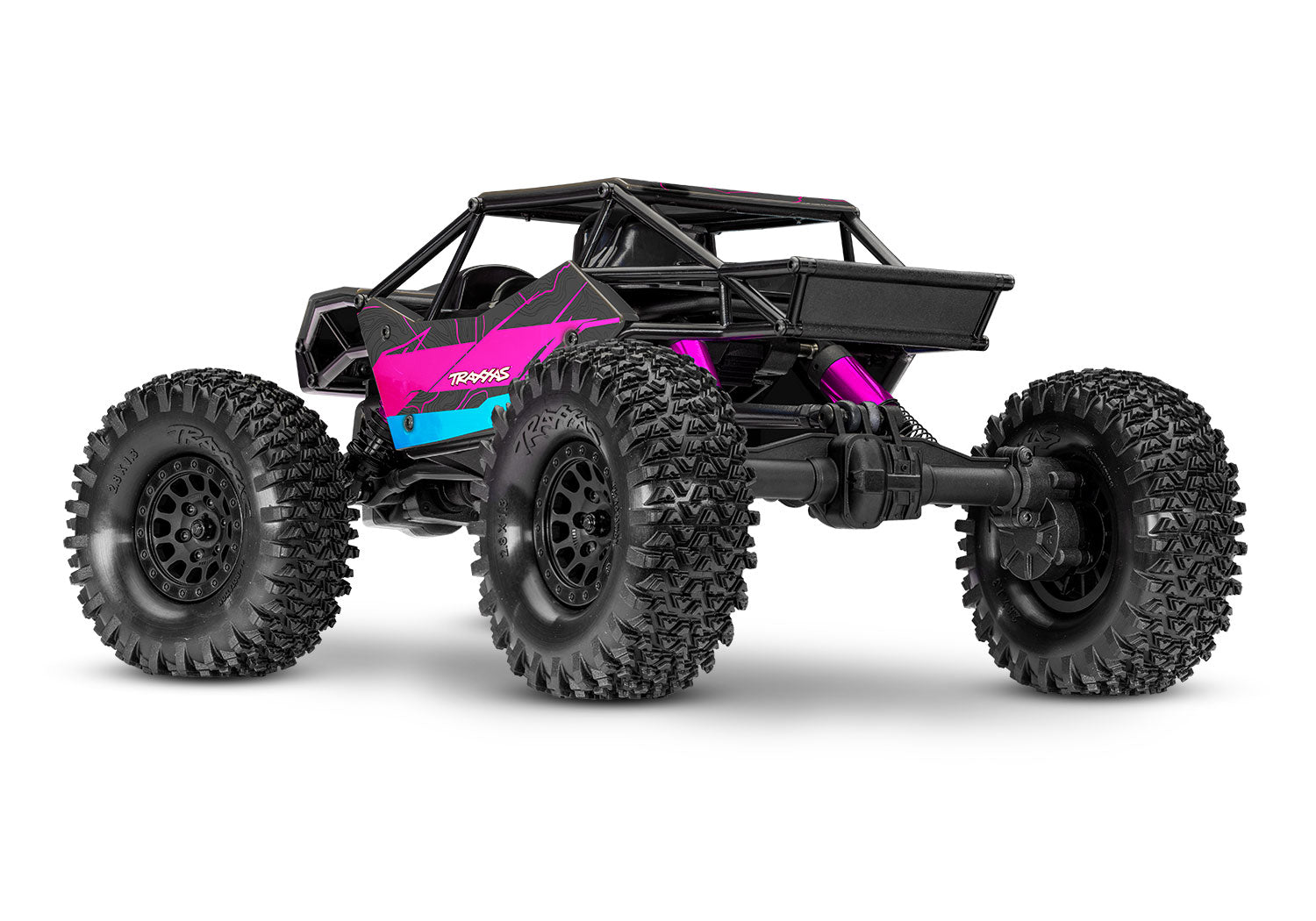

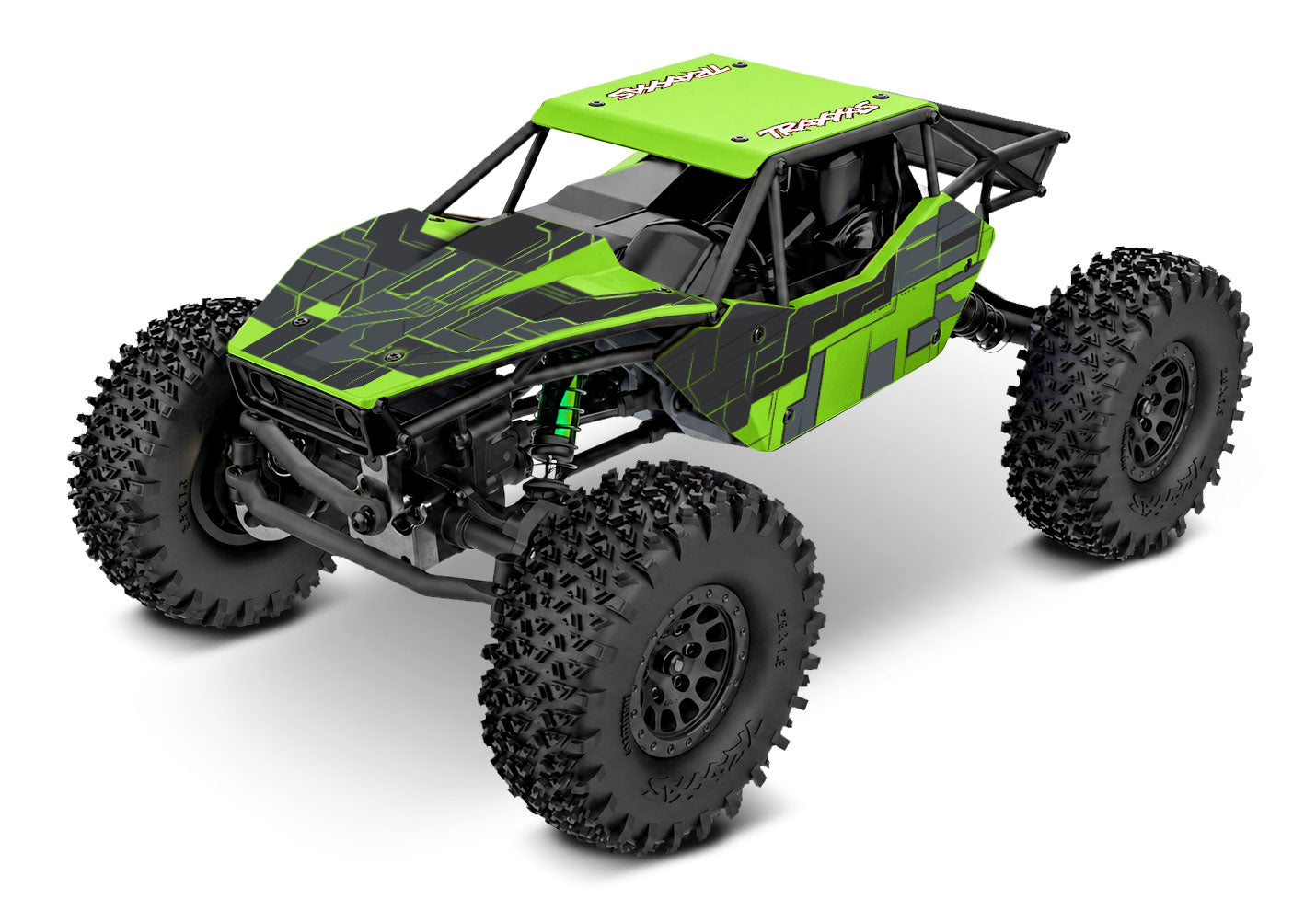

MODEL 120074-1: TXC-4M™ Extreme Crawler: 1/18 scale 3s brushless 4X4 crawler, fully-assembled, Ready-To-Drive®, with TQ™ Compact 2.4 GHz 2-channel transmitter, 3s brushless power system, and waterproof electronics.
What’s In The Box:
- TXC-4M Ready-To-Drive crawler
- Clipless tube-frame body
- 3s brushless power system
- TQ Compact 2.4 GHz transmitter
- 11.1 volt 250 mAh 3-cell LiPo battery
- USB quick charger with iD®
- High quality maintenance tools
-

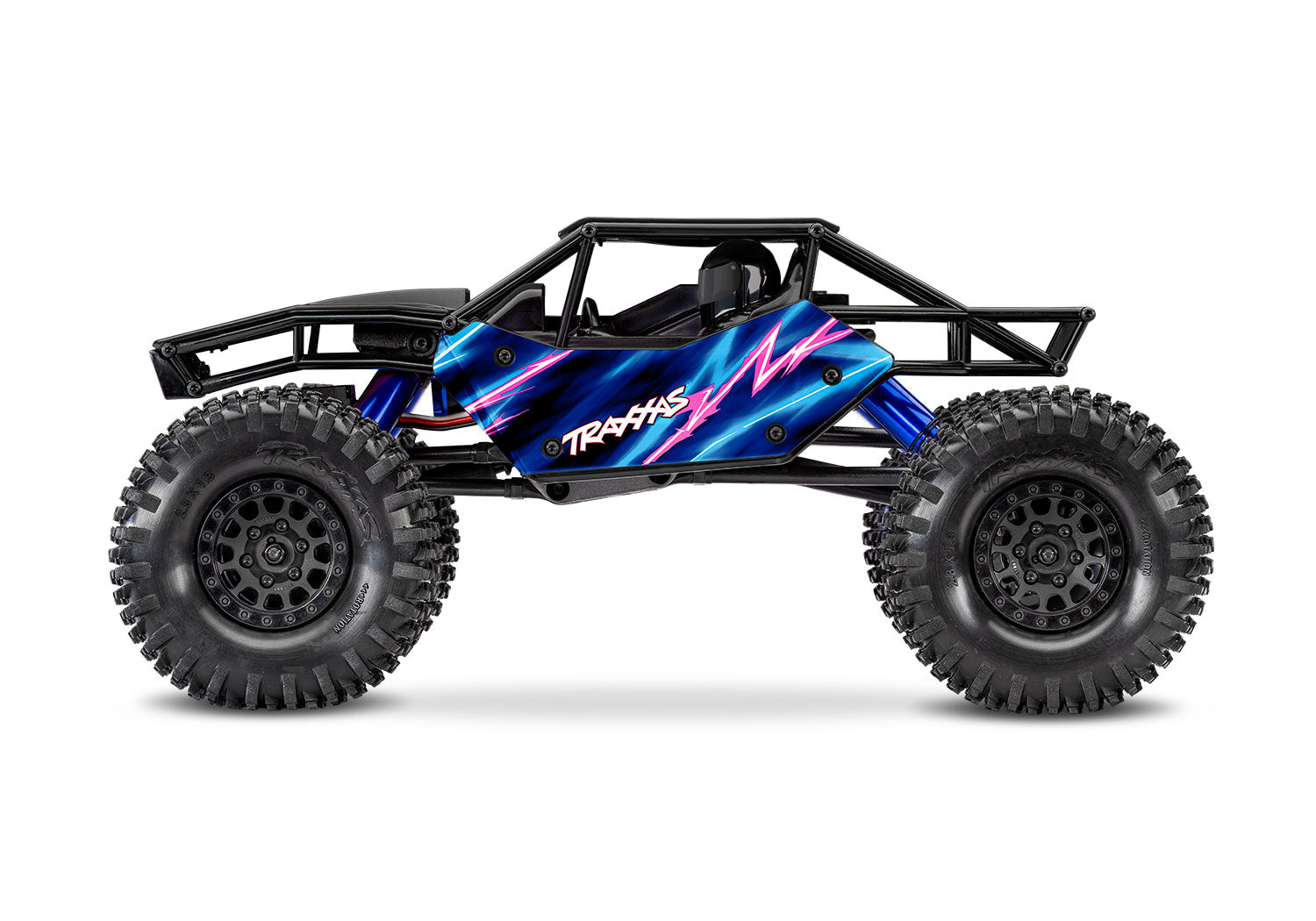

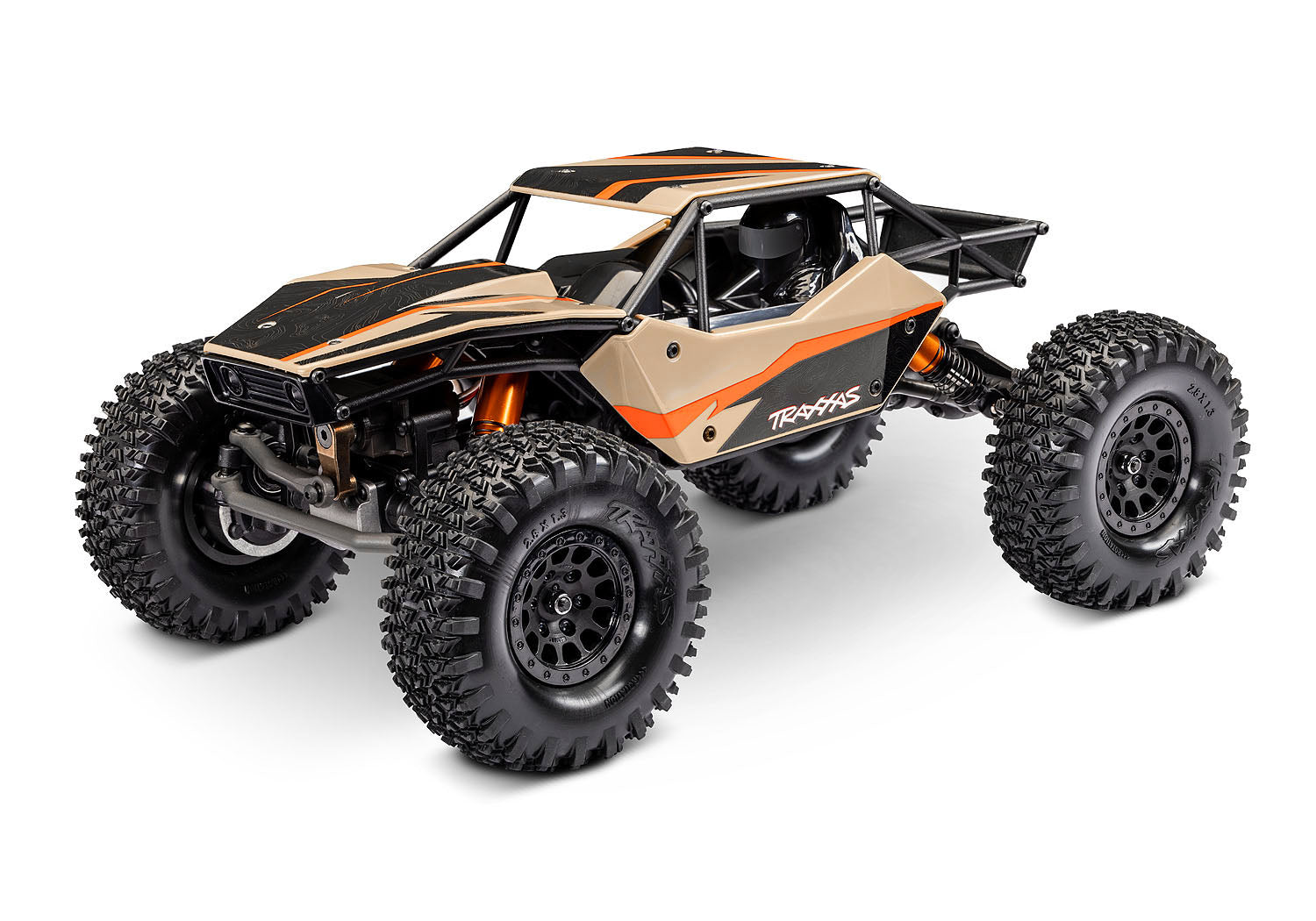

Clipless Tube-Frame Body
- Lightweight tube frame
- Accessory panels available (sold separately)
- Interior with driver figure
- Hidden clipless latch in the rear
- Bosses for accessory light kits (sold separately)
-

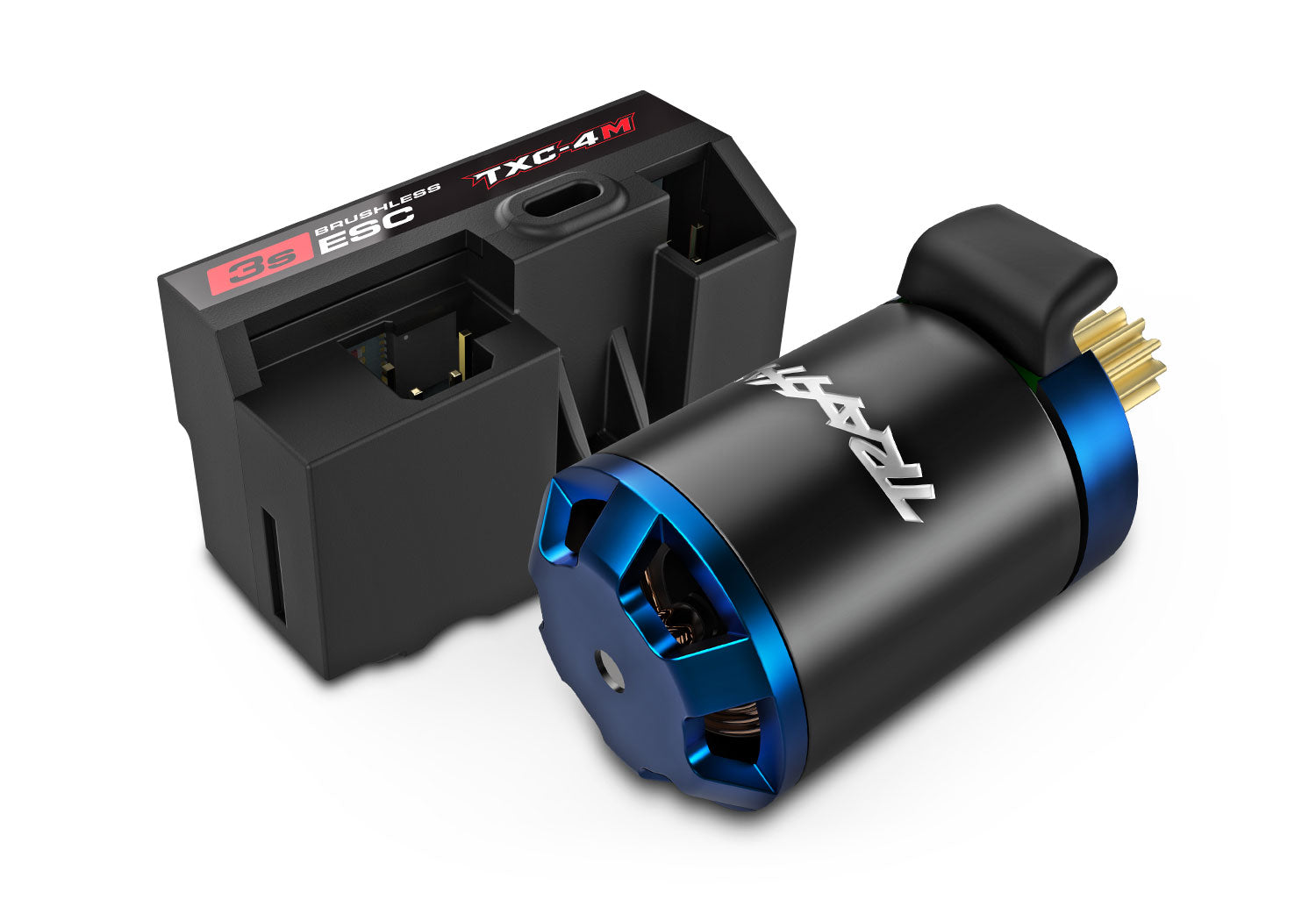

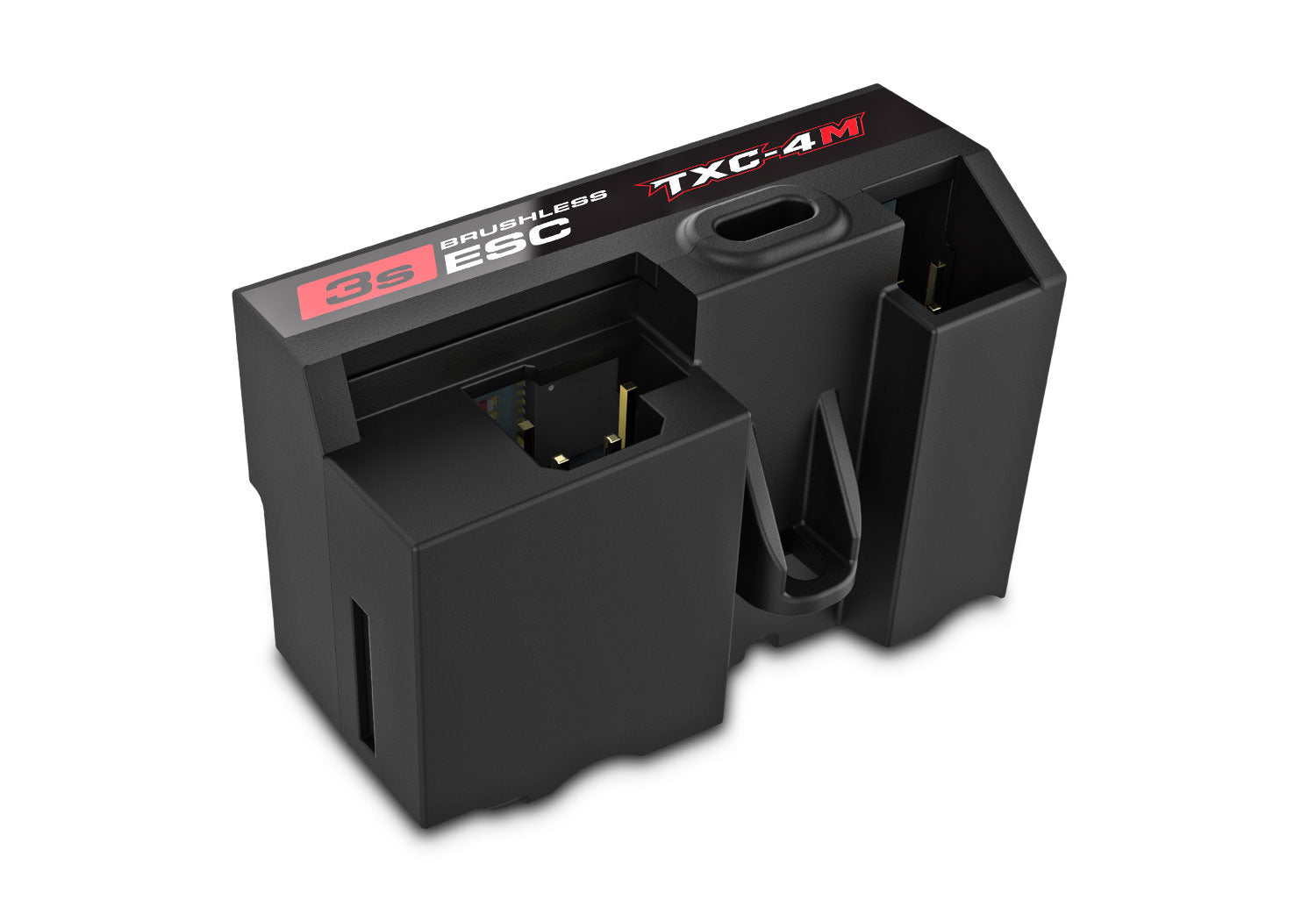

3s Brushless Electronic Speed Control
- Field Oriented Control (FOC)
- Delivers precise throttle control
- LiPo overvoltage protection
- Two-stage low-voltage detection
- Fully waterproof for all-weather fun
- Three drive profiles
- Sport Mode — forward / brake / reverse
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- 6-volt BEC
- Field Oriented Control (FOC)
-

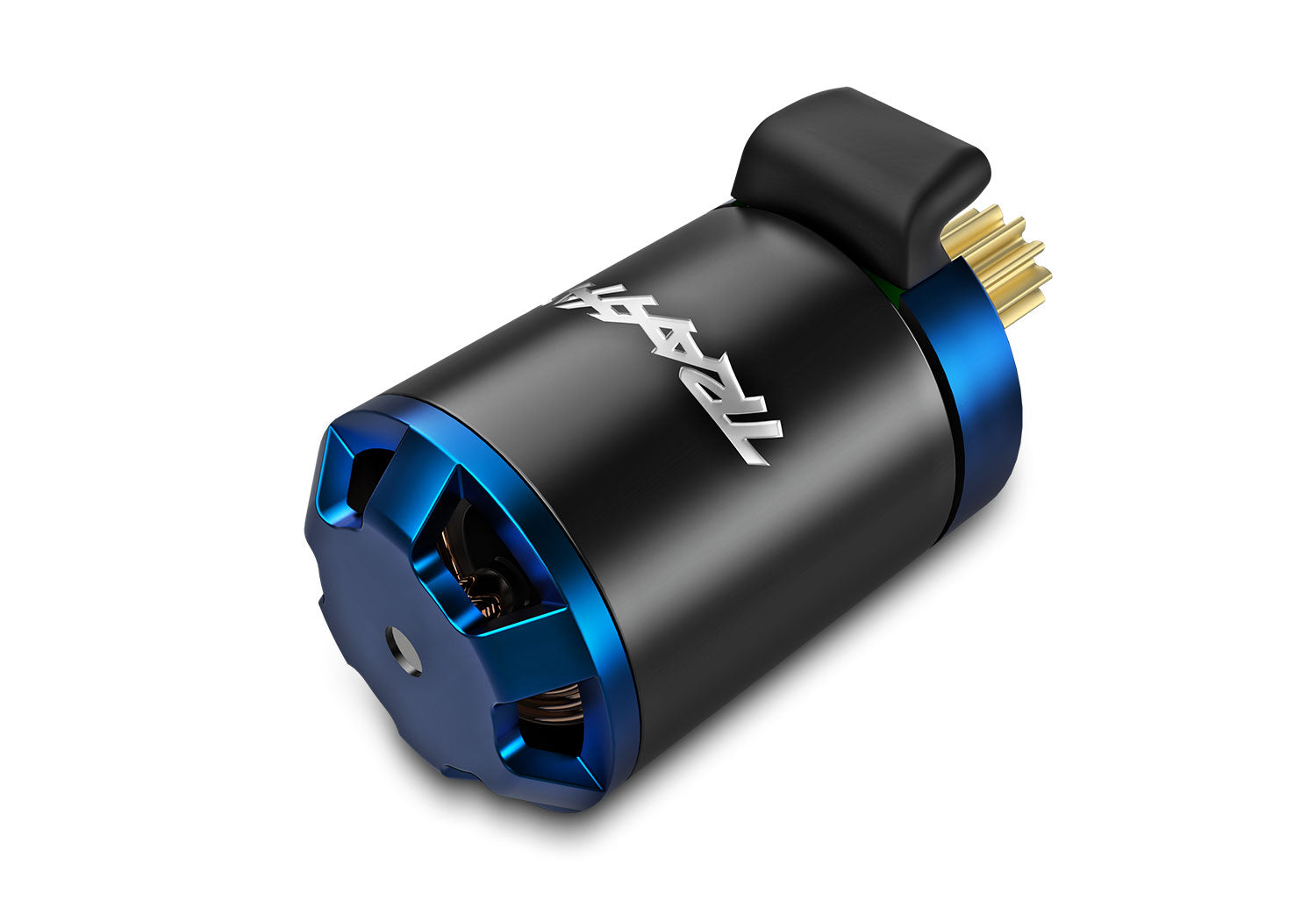

3s Brushless Outrunner Motor
- More torque and low speed control than conventional designs
- 3350 Kv
- Laser-etched motor can
-

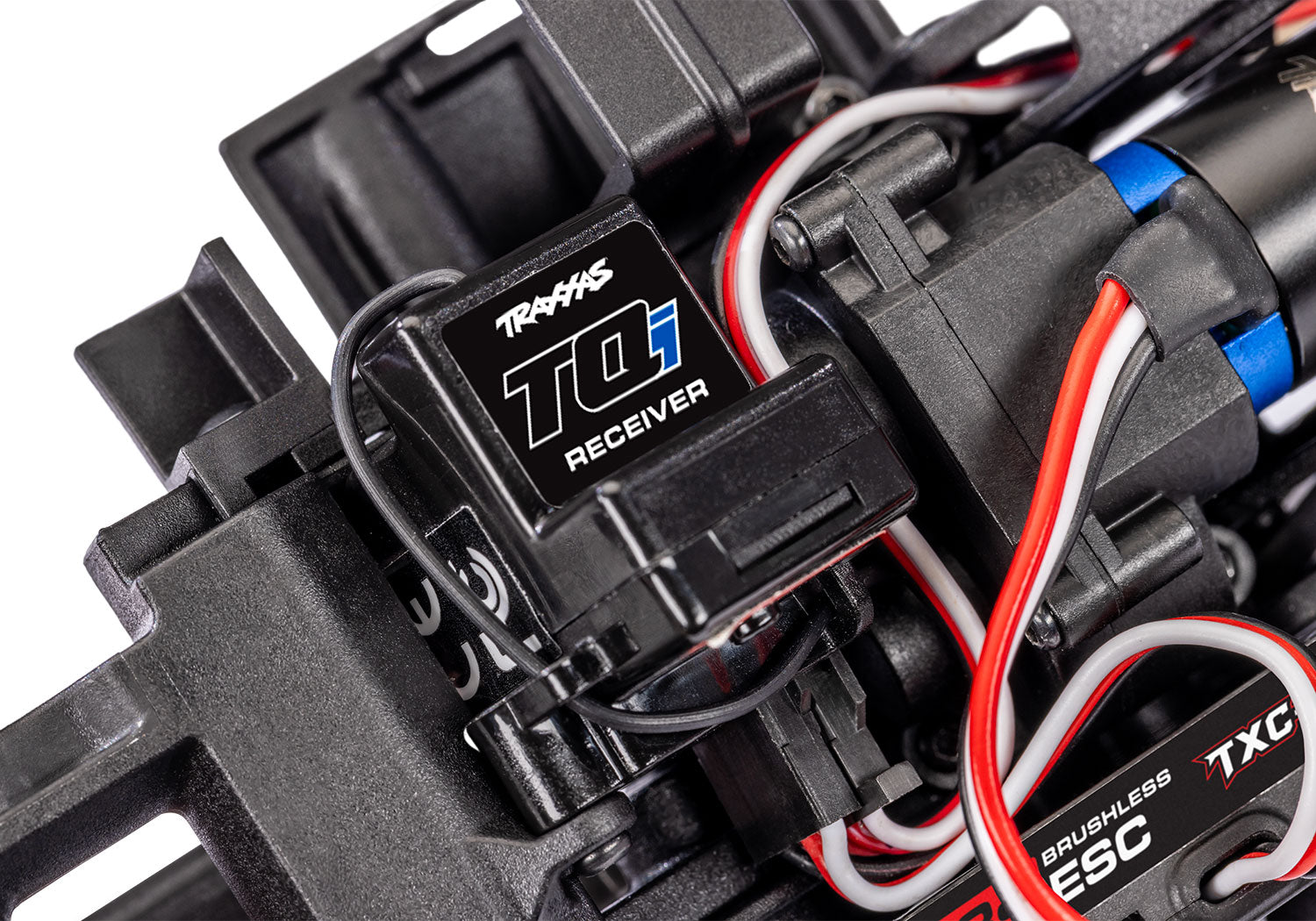

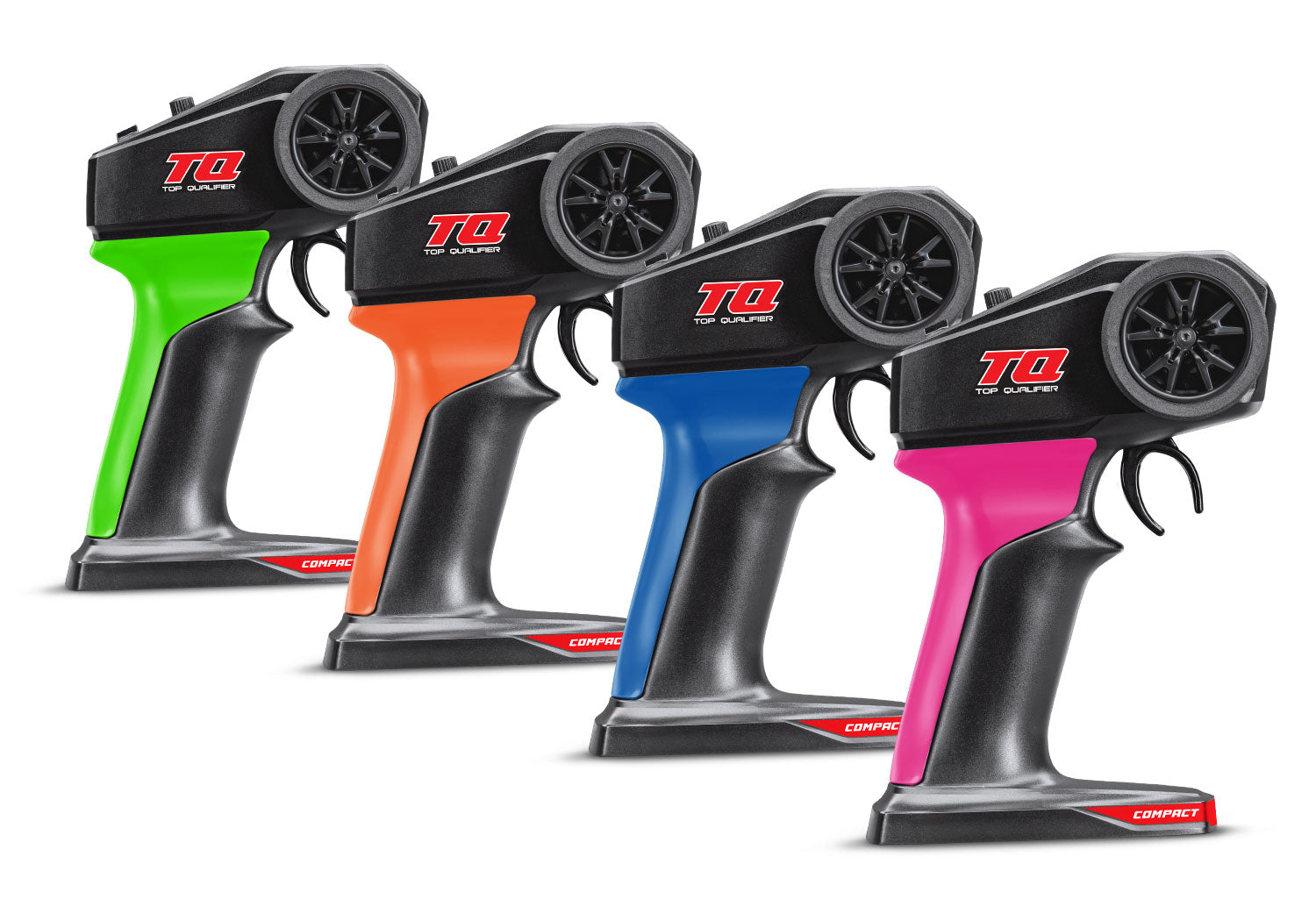

2.4 GHz Radio System
- TQ Compact 2-channel transmitter
- Removable color-matched grip adapter
- High-output signal delivers outstanding range

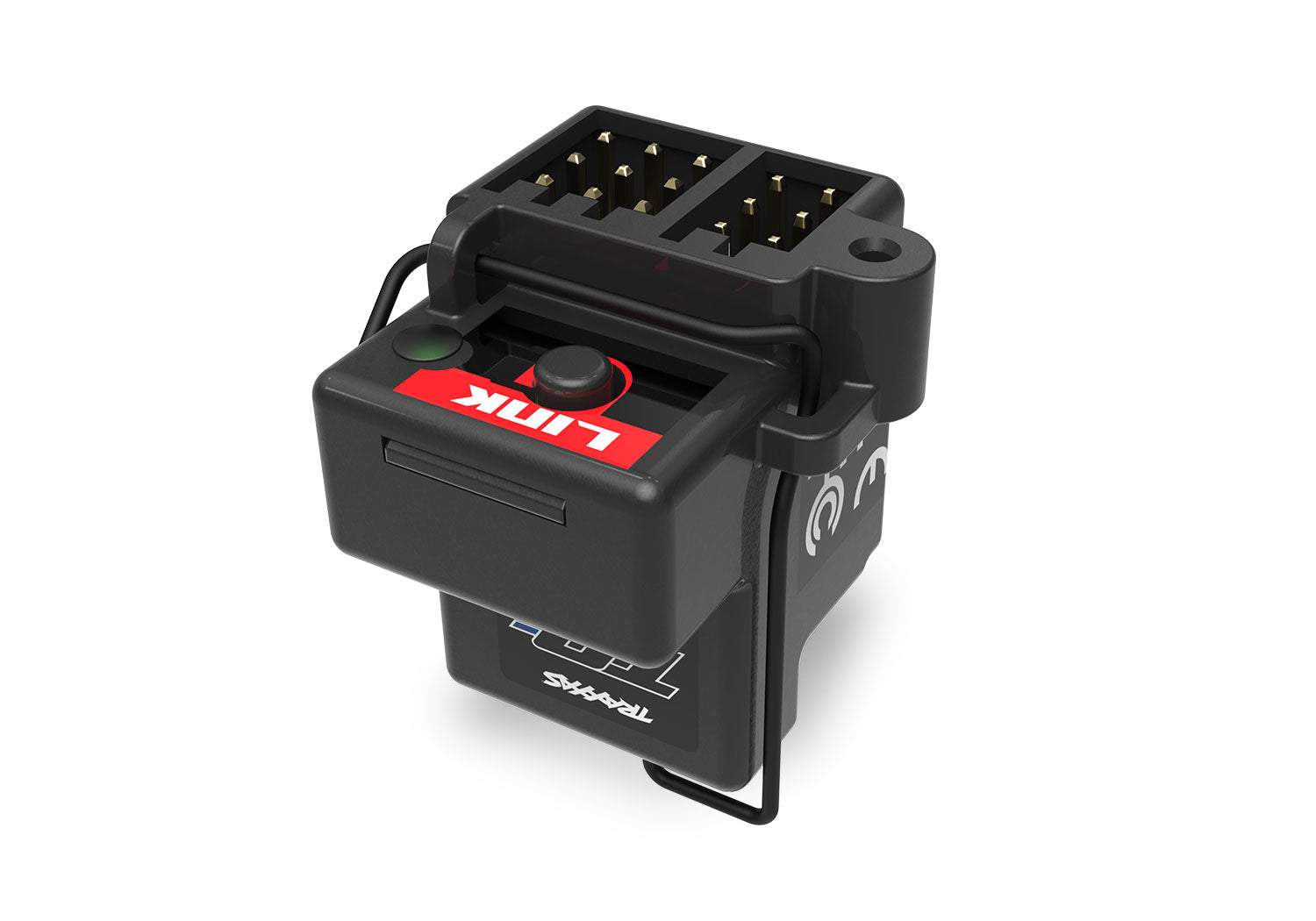

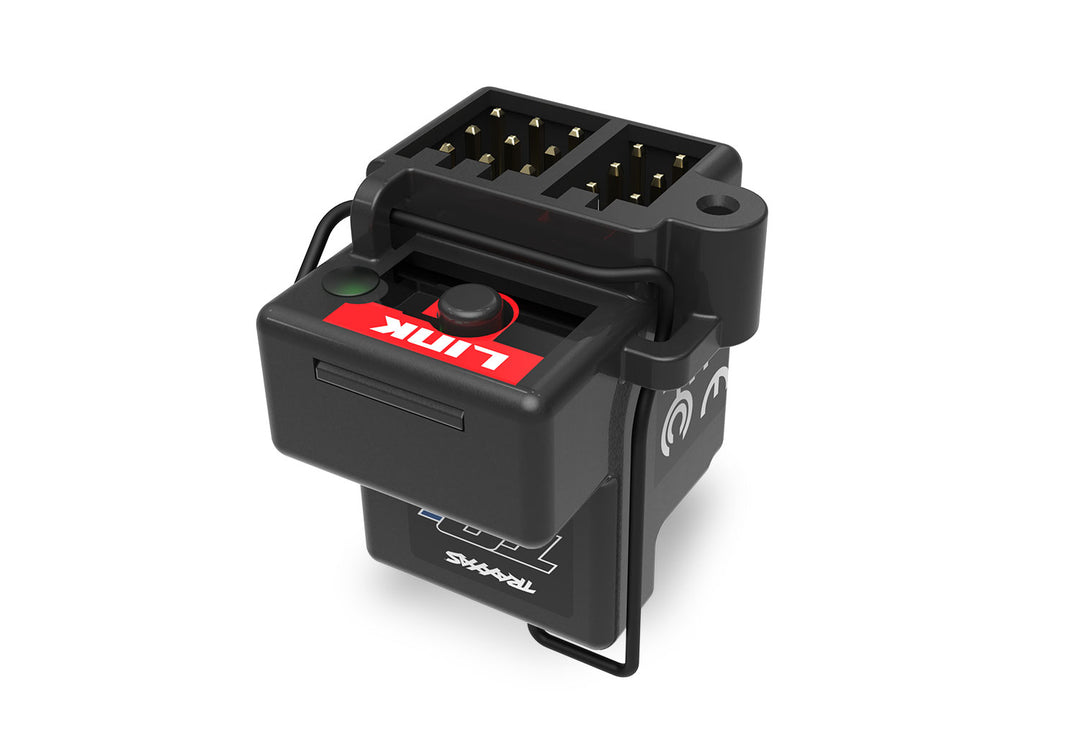

- Compact receiver with servo and LED channels
- TQ Compact 2-channel transmitter
-

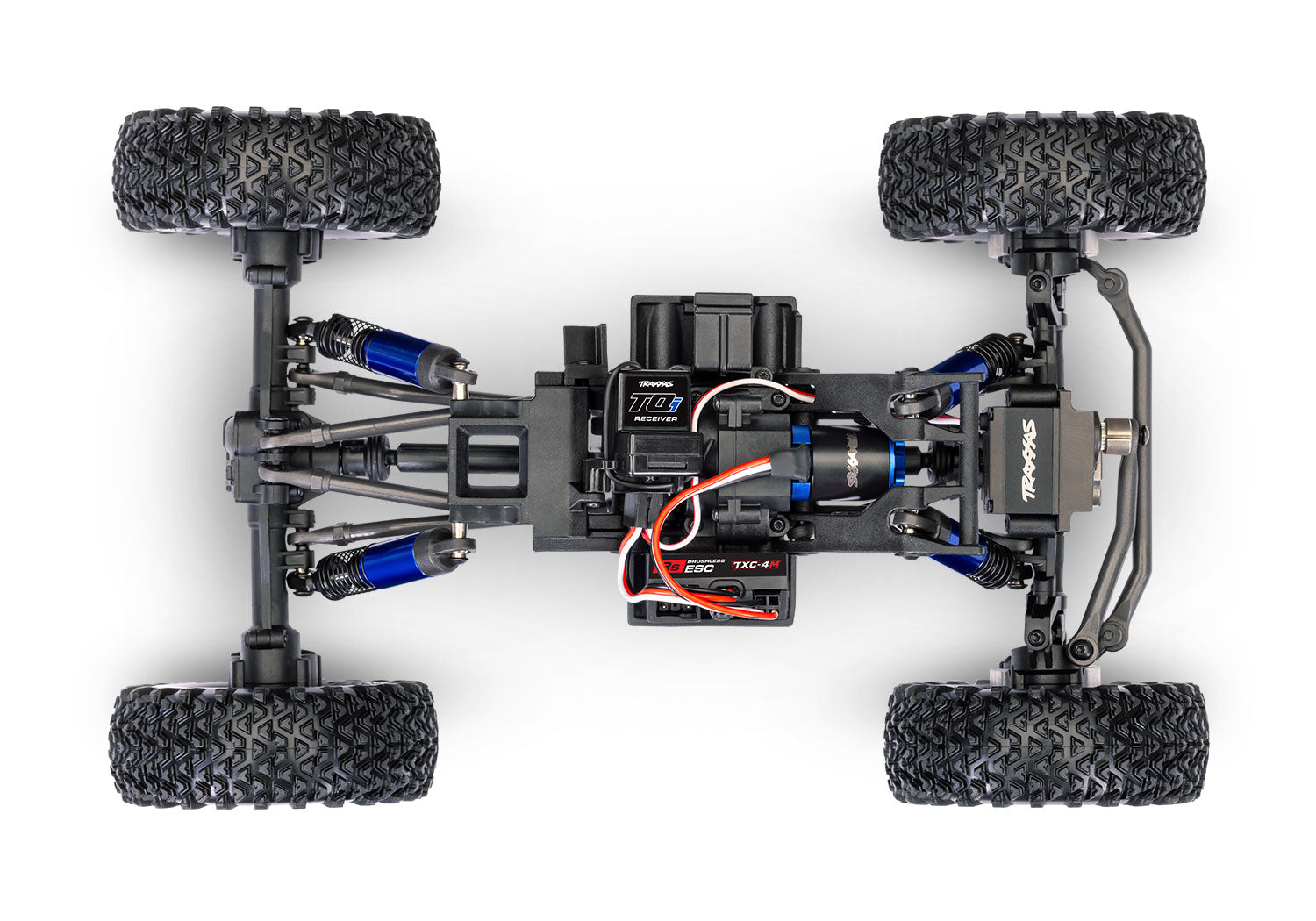

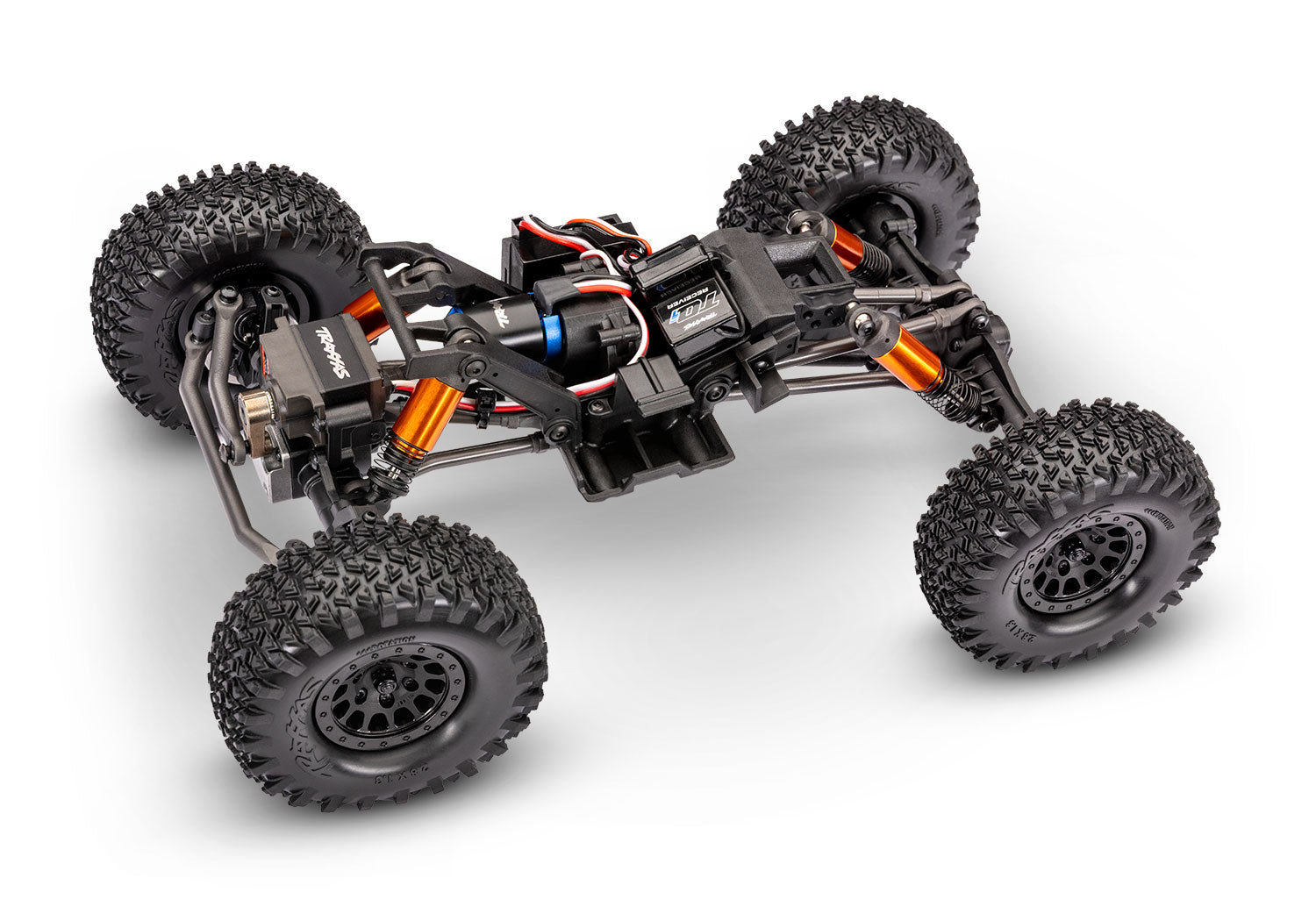

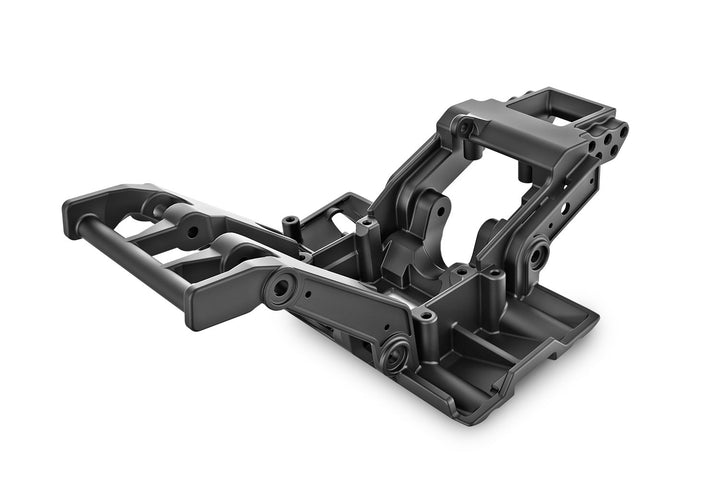

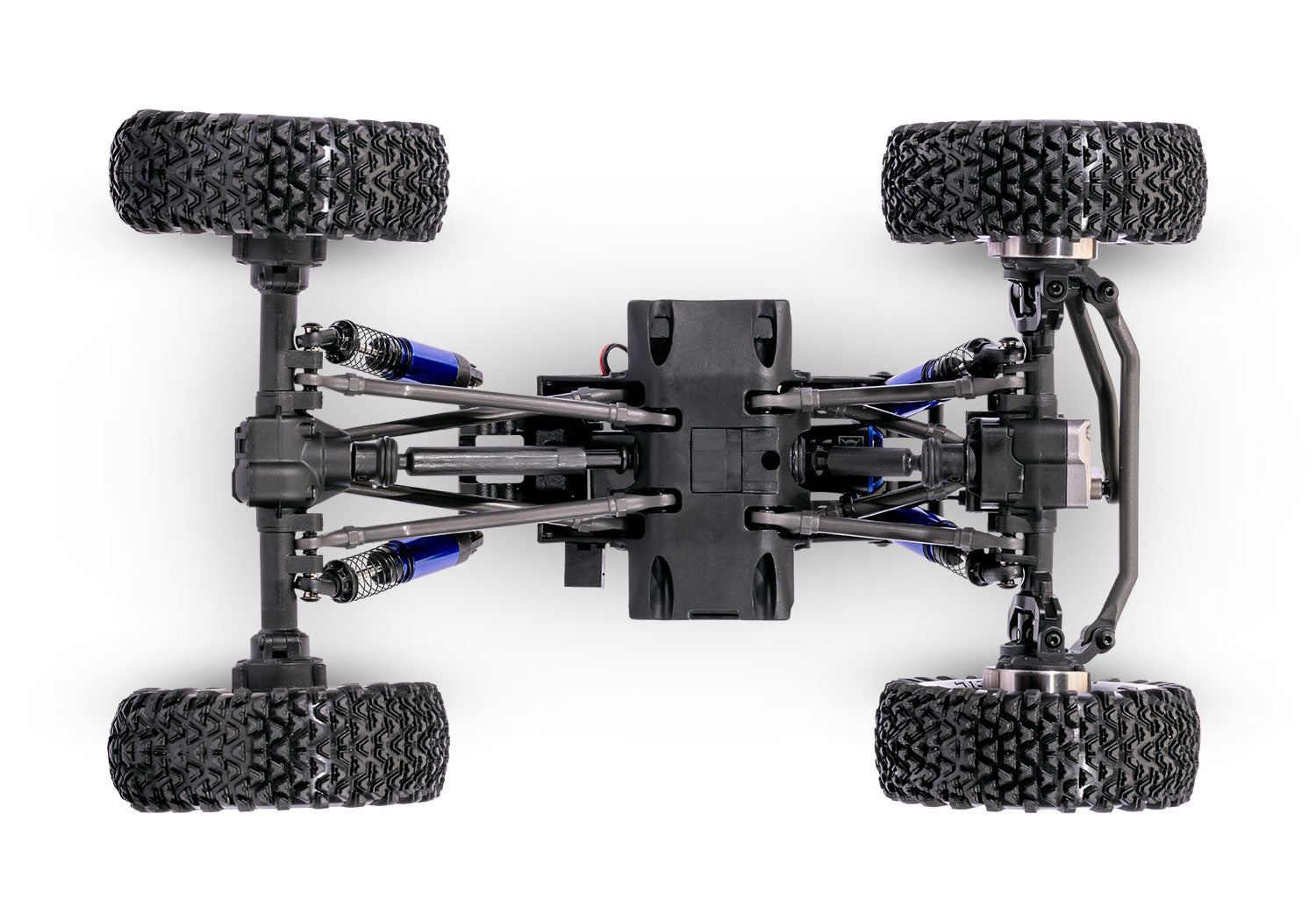

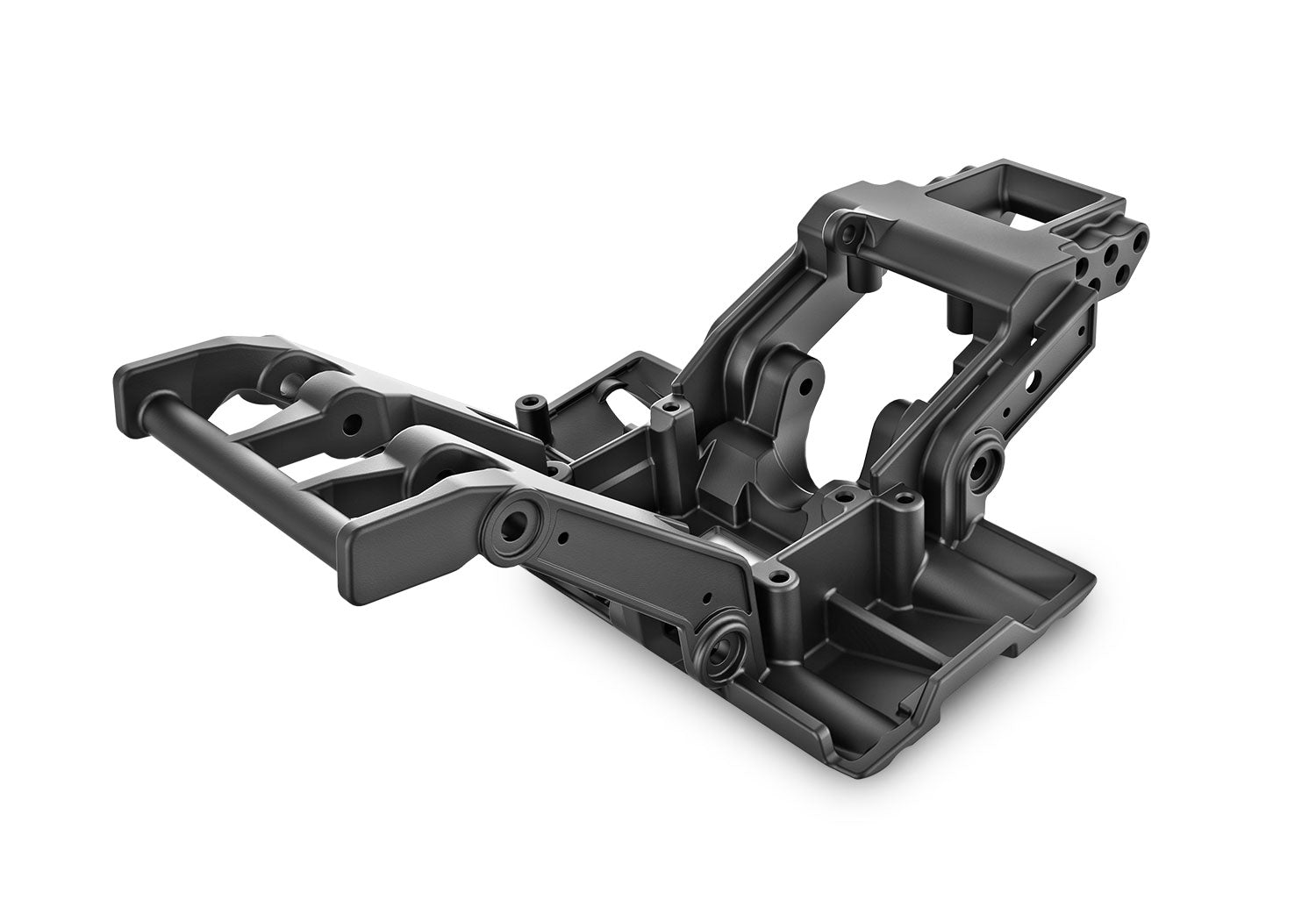

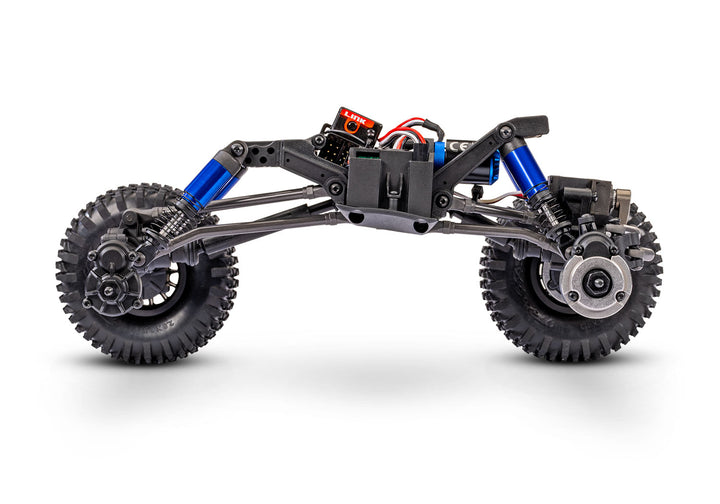

Molded Monocoque Chassis
- Single piece composite design
- More torsional rigidity than conventional ladder frames
- Reduces weight

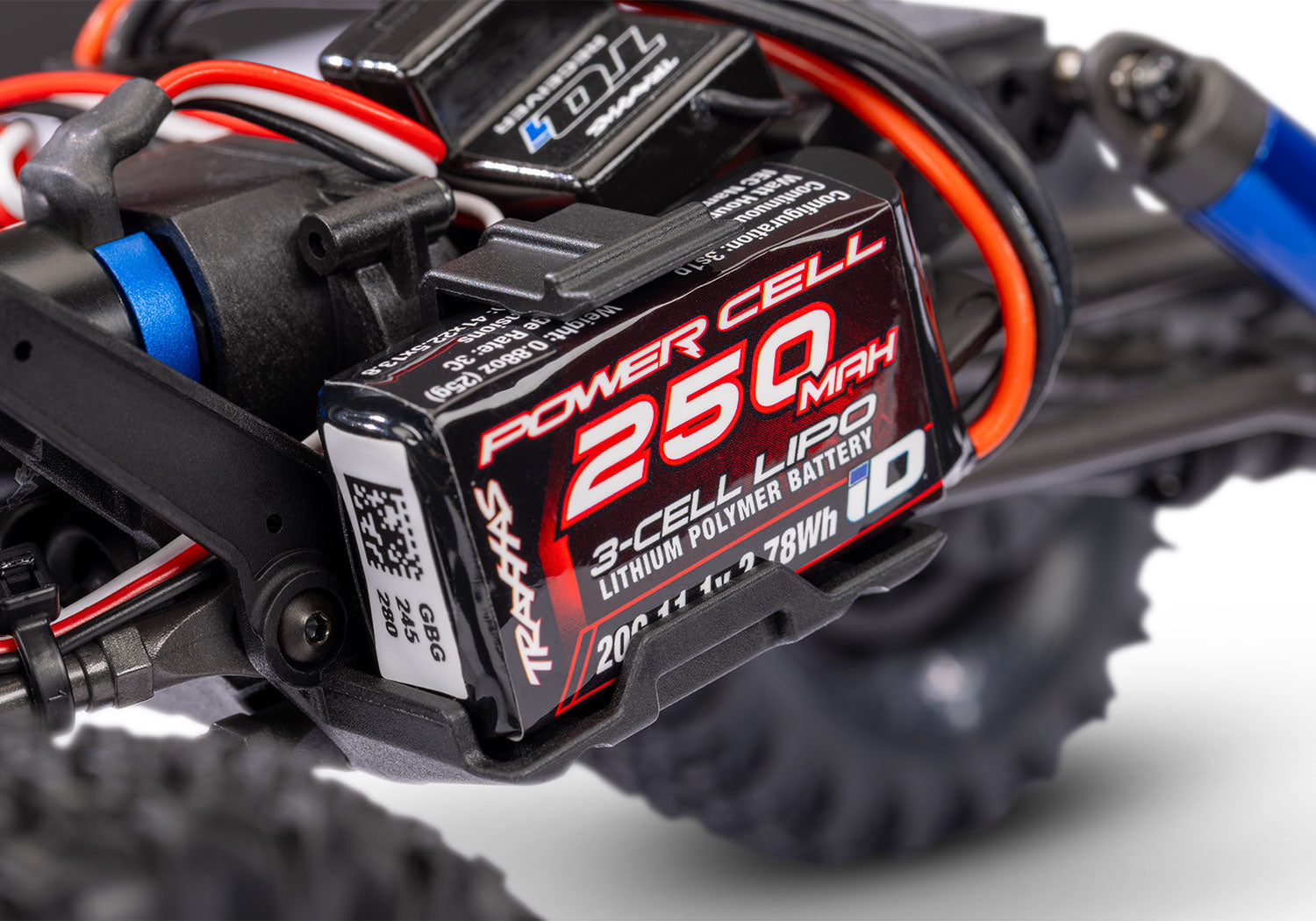

- Battery and ESC held low in the chassis
- Mounted on opposite sides for better weight distribution
- Integrated rock light mounding and wire routing
- Single piece composite design
-

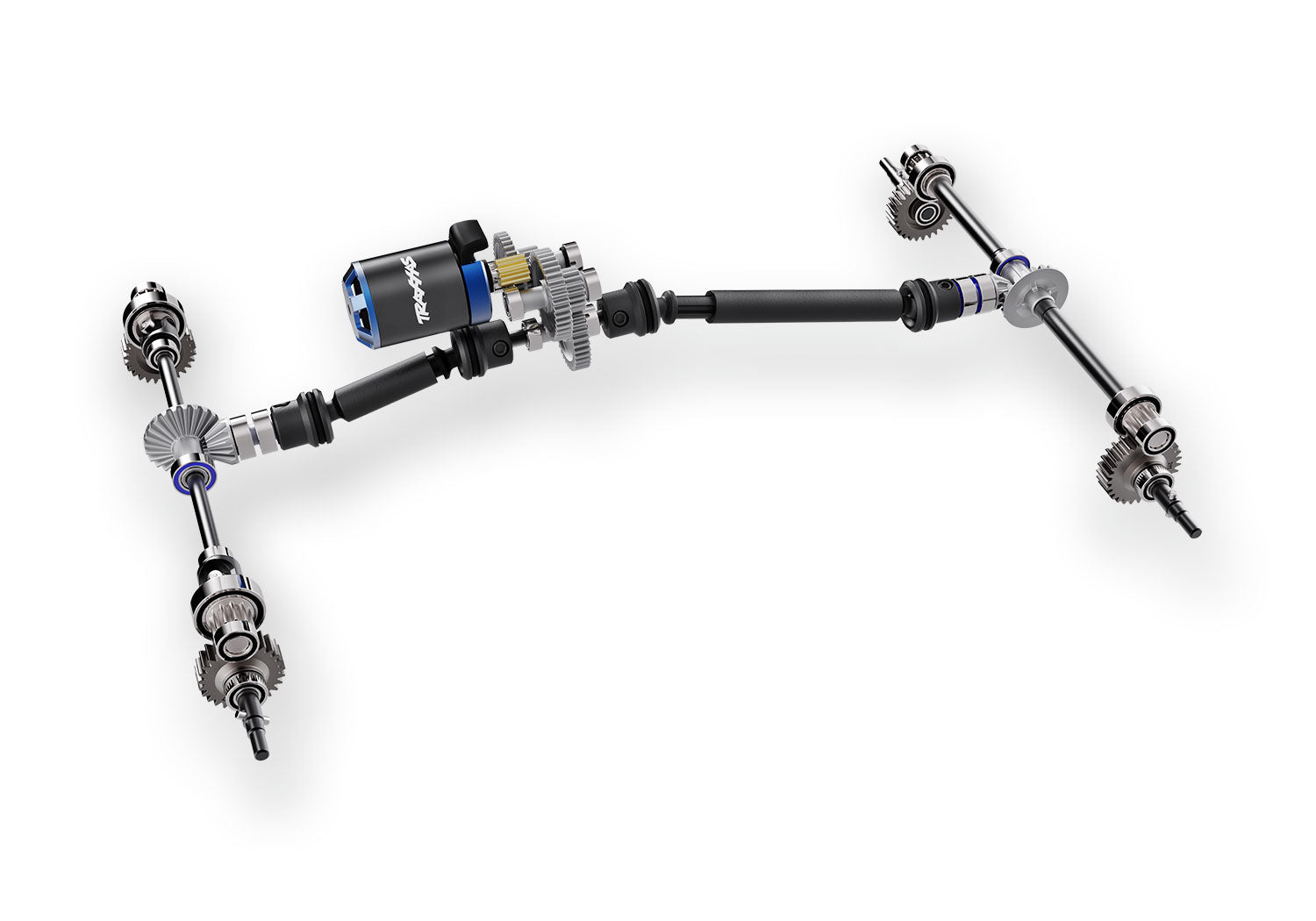

Driveline
- Full-time shaft-driven 4-wheel drive
- Locked axles with steel-spool gears
- Steel axle shafts and U-joints
- 25% overdrive front axle
- Heavy-duty CV center driveshafts

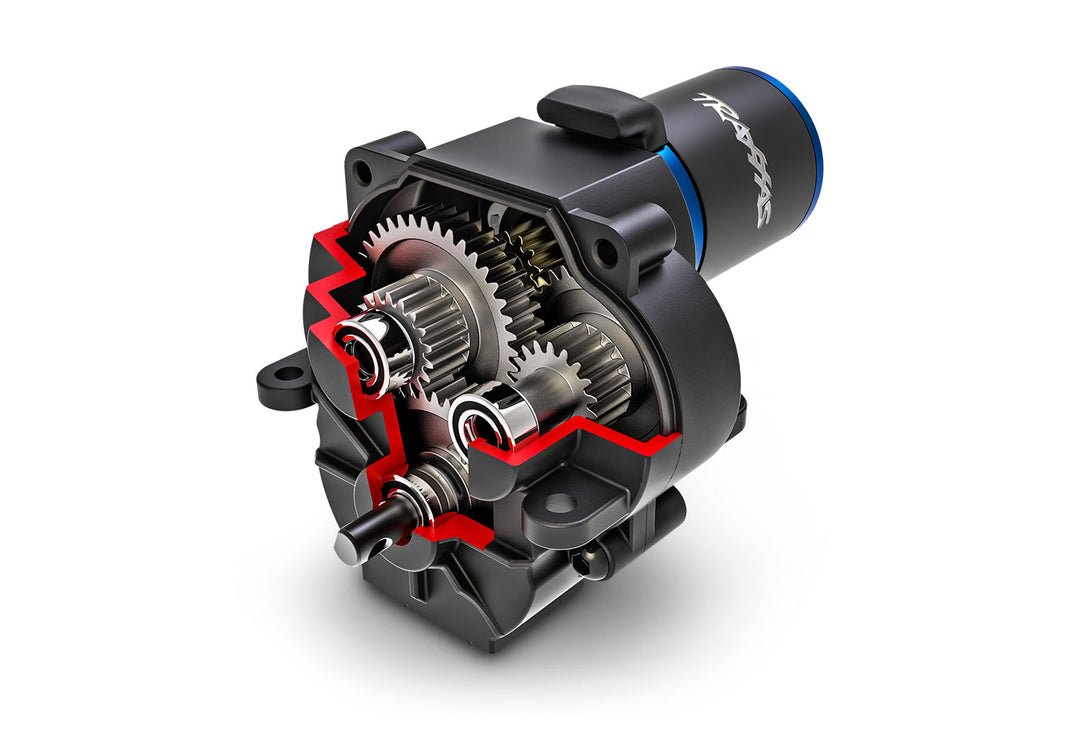

- Single speed transmission
- All metal gears
- Full ball bearings
-

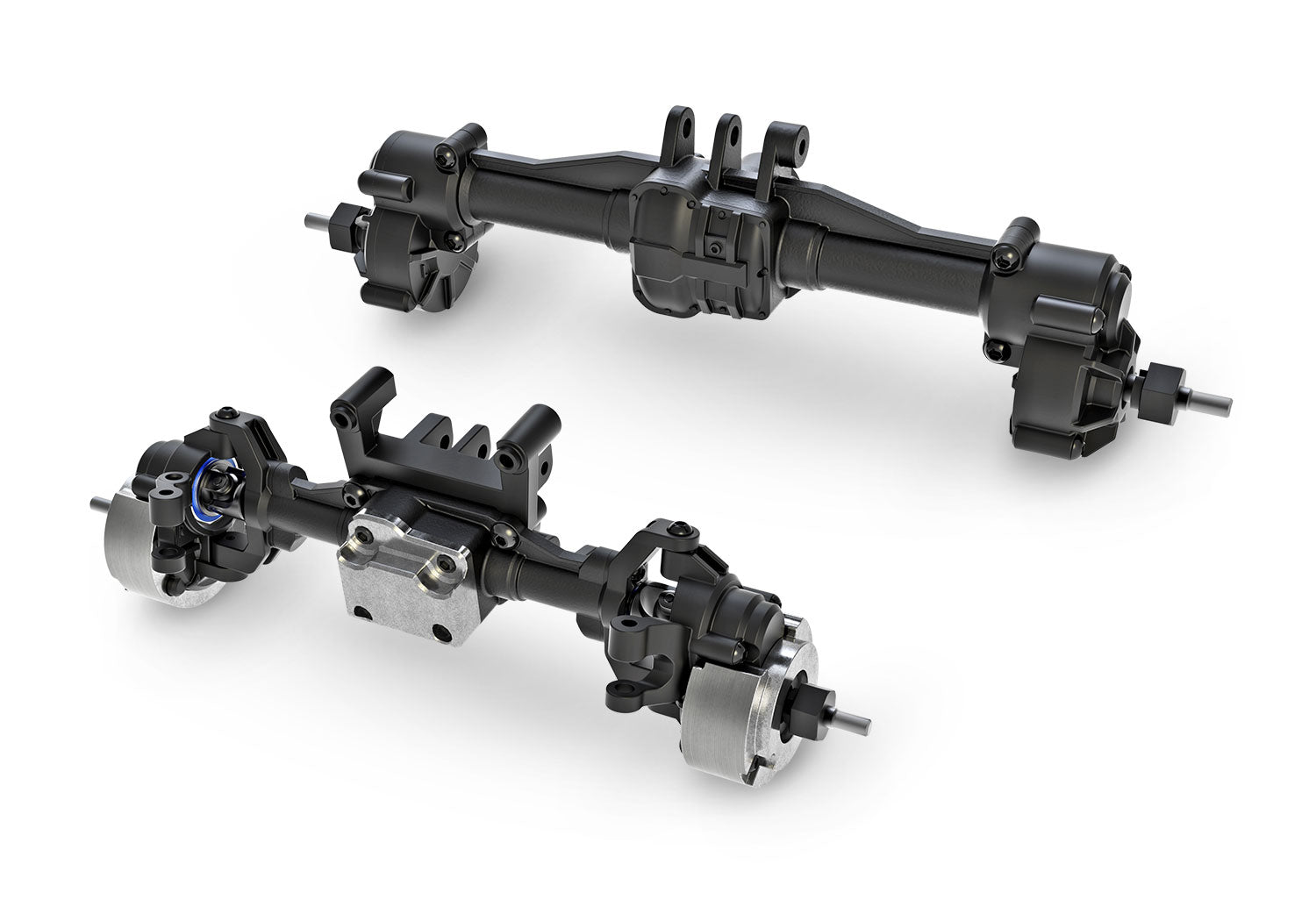

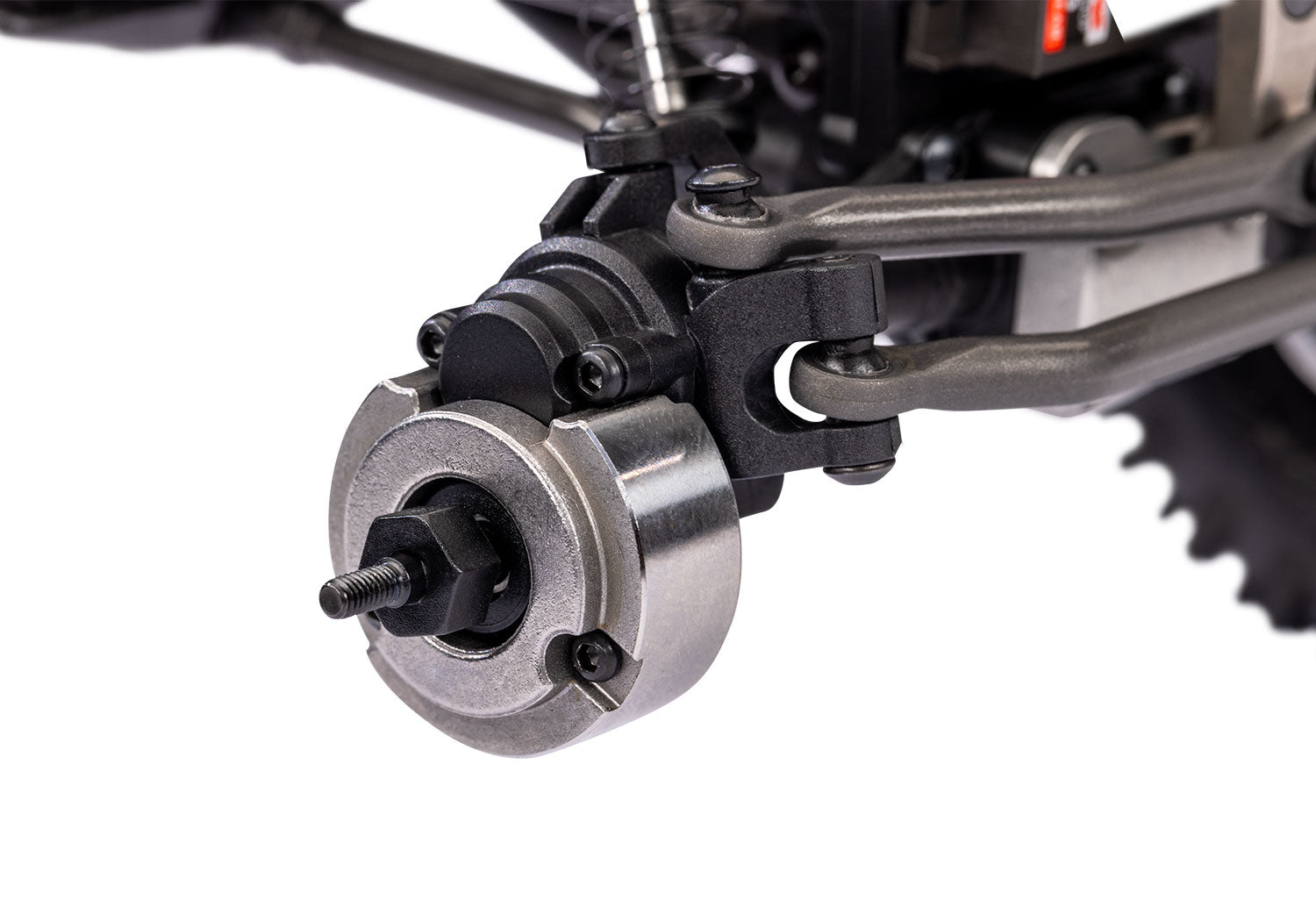

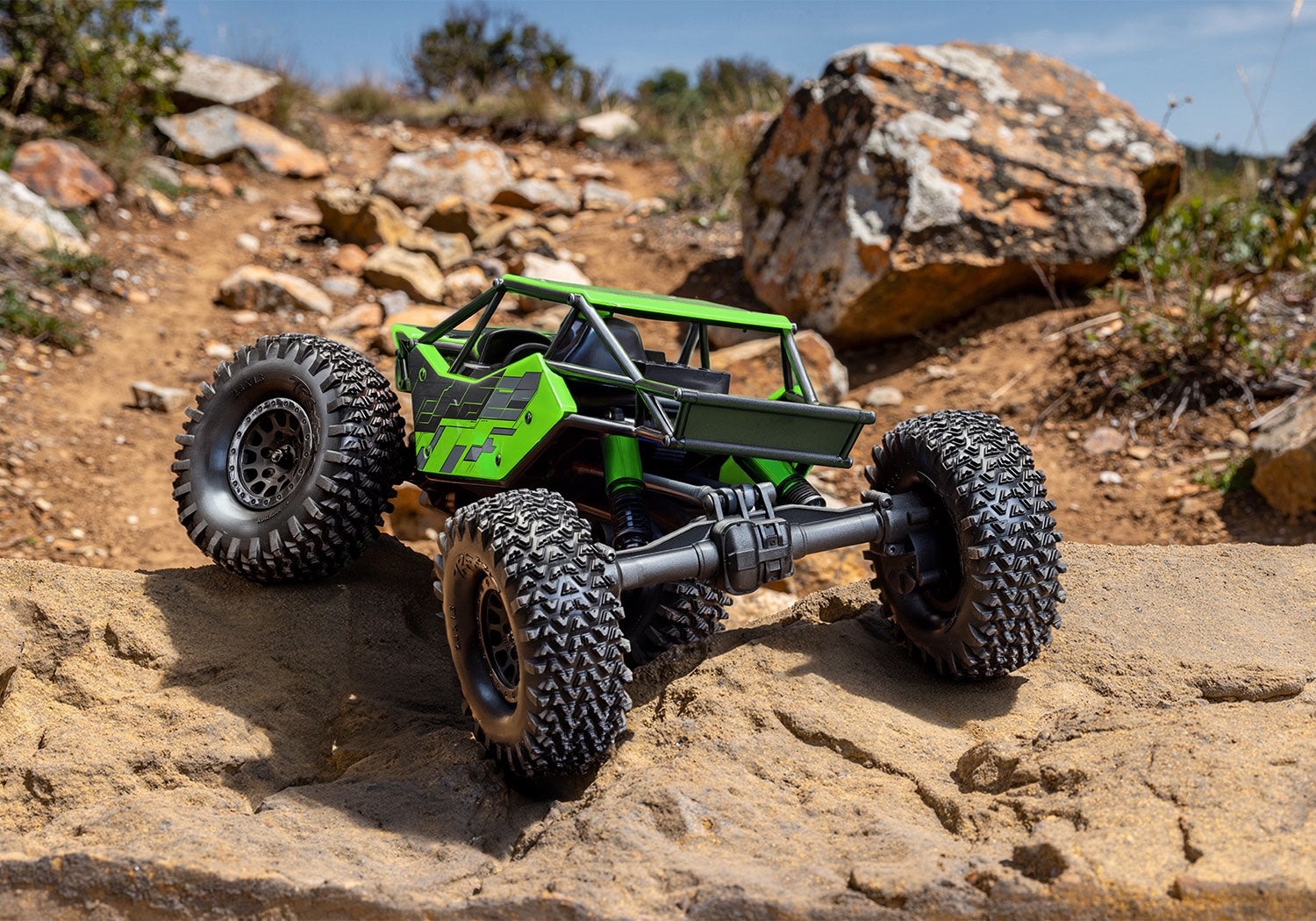

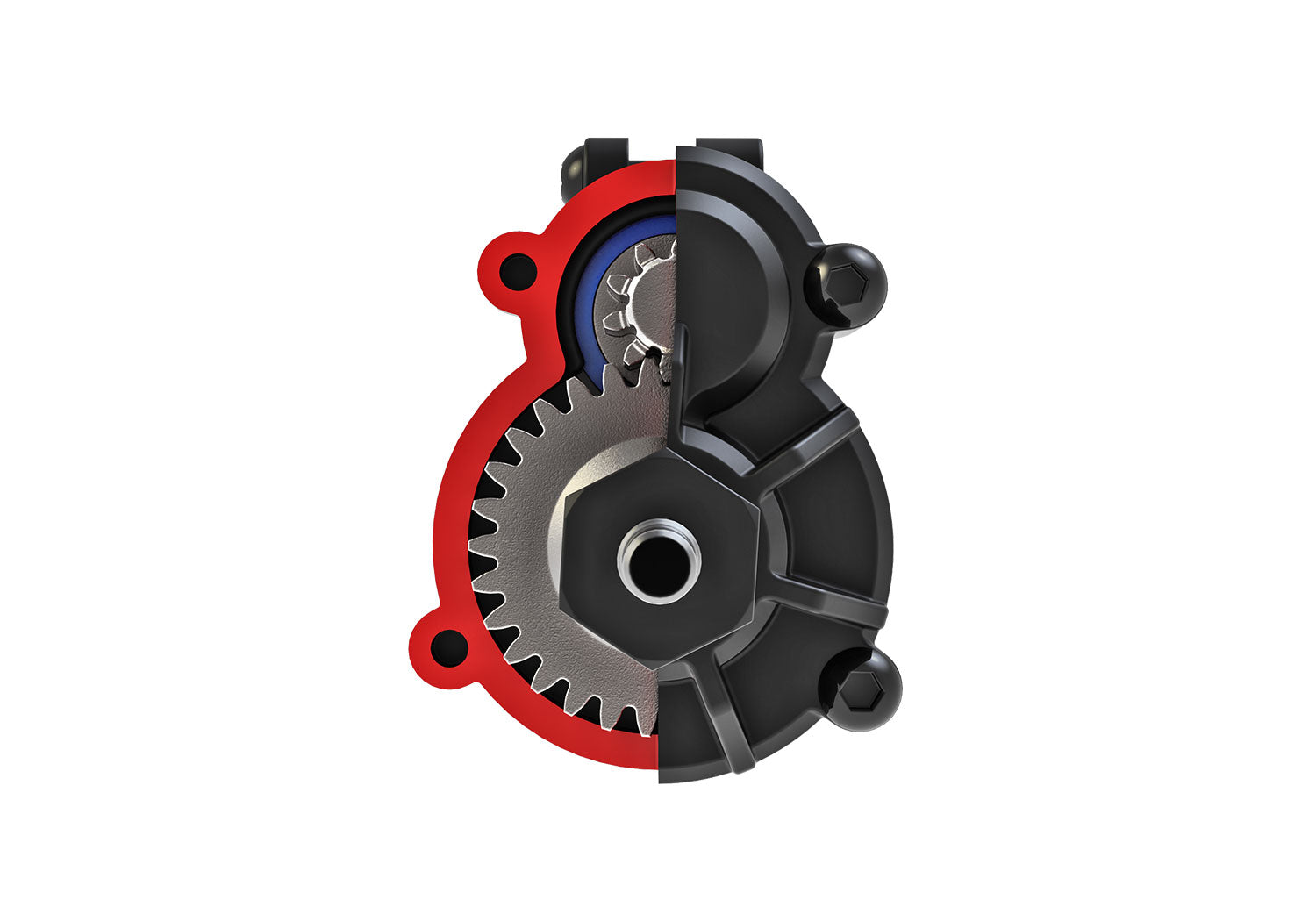

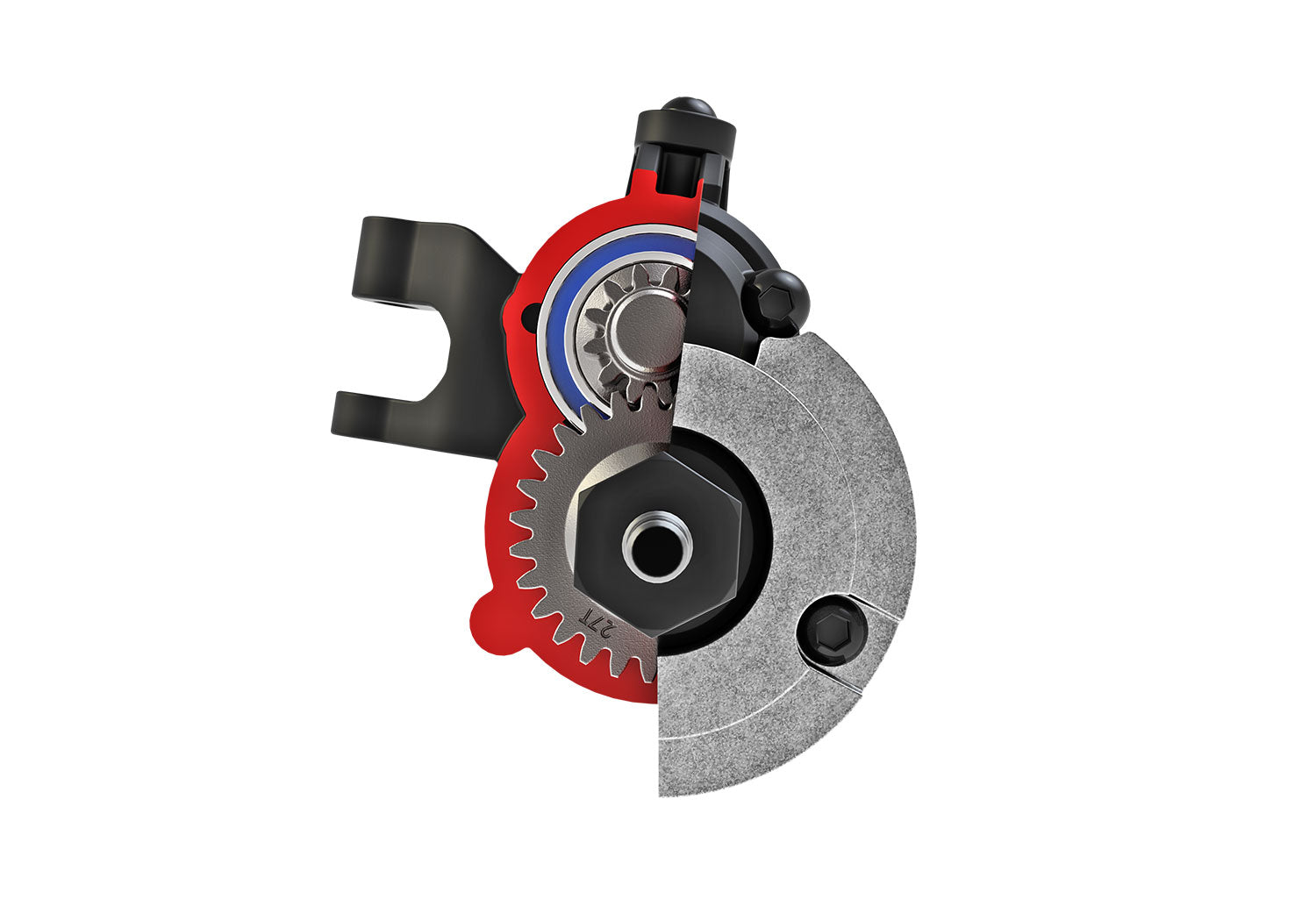

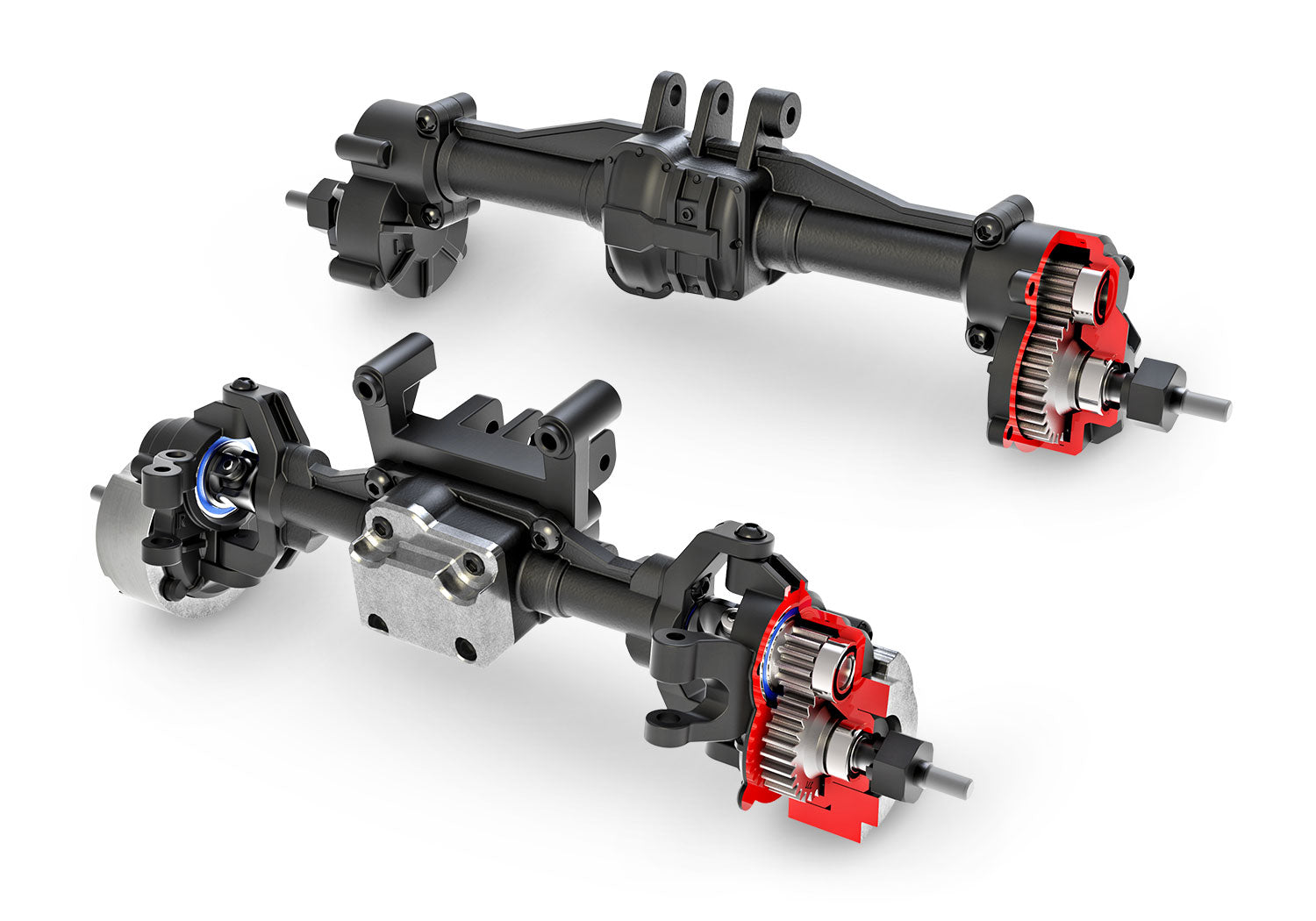

Portal Axles
- Increases center ground clearance
- Reduces torque twist
- All metal gears
- Full ball bearings
-

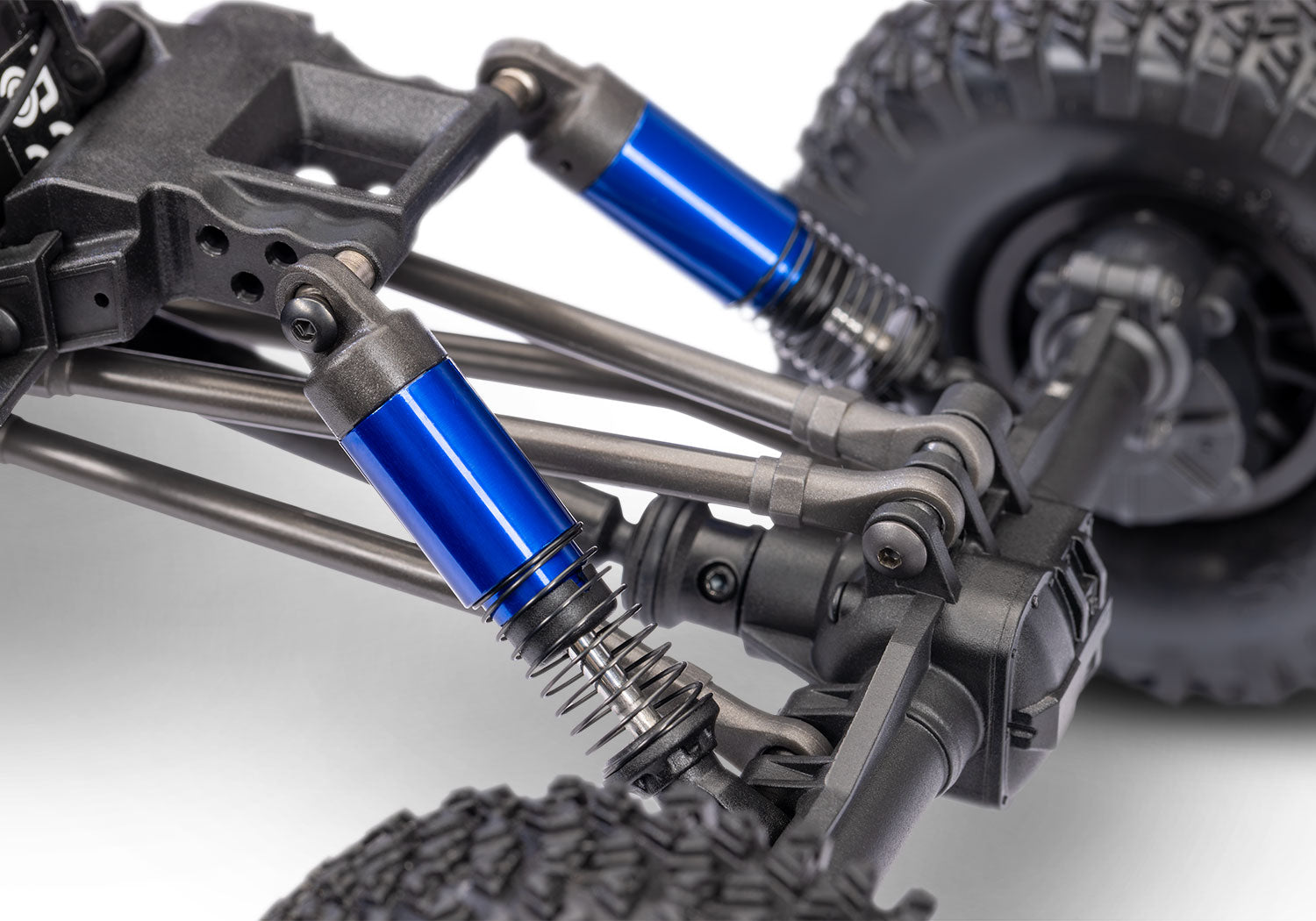

Suspension
- Lay-down shock design
- Triangulated 4 link front and rear
- High-clearance lower links
-

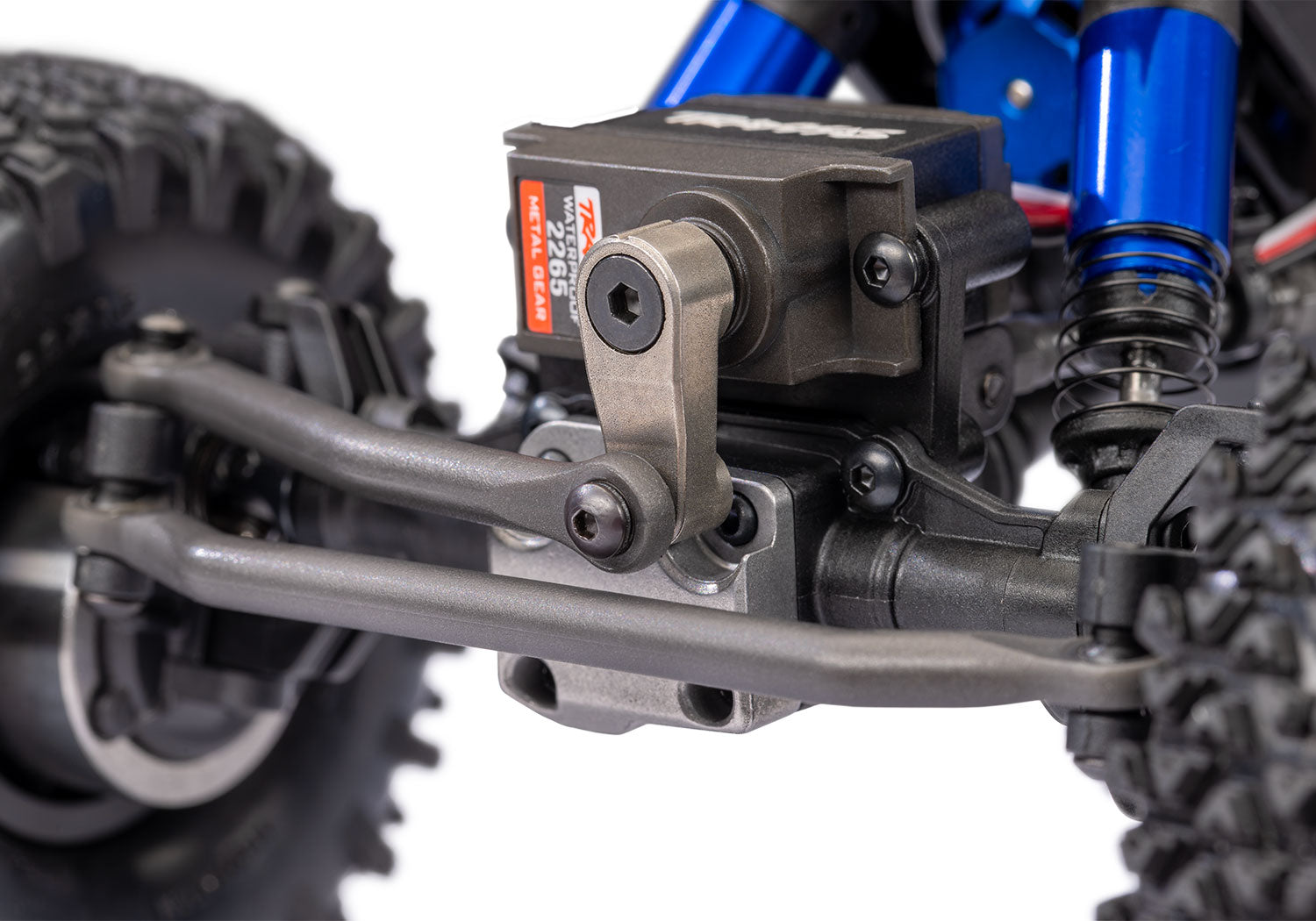

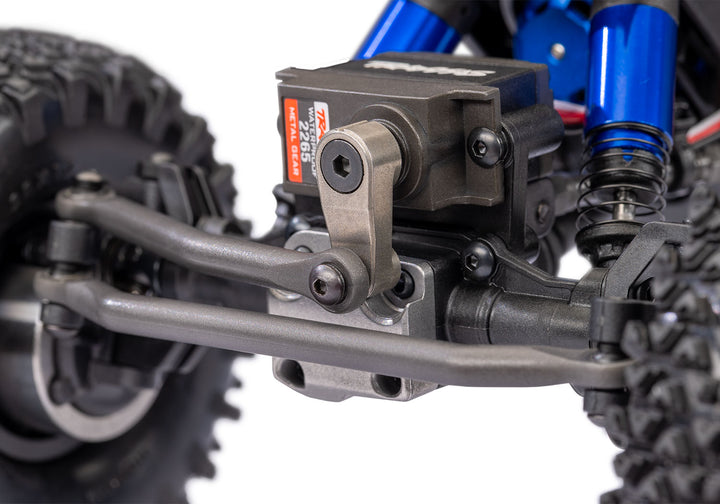

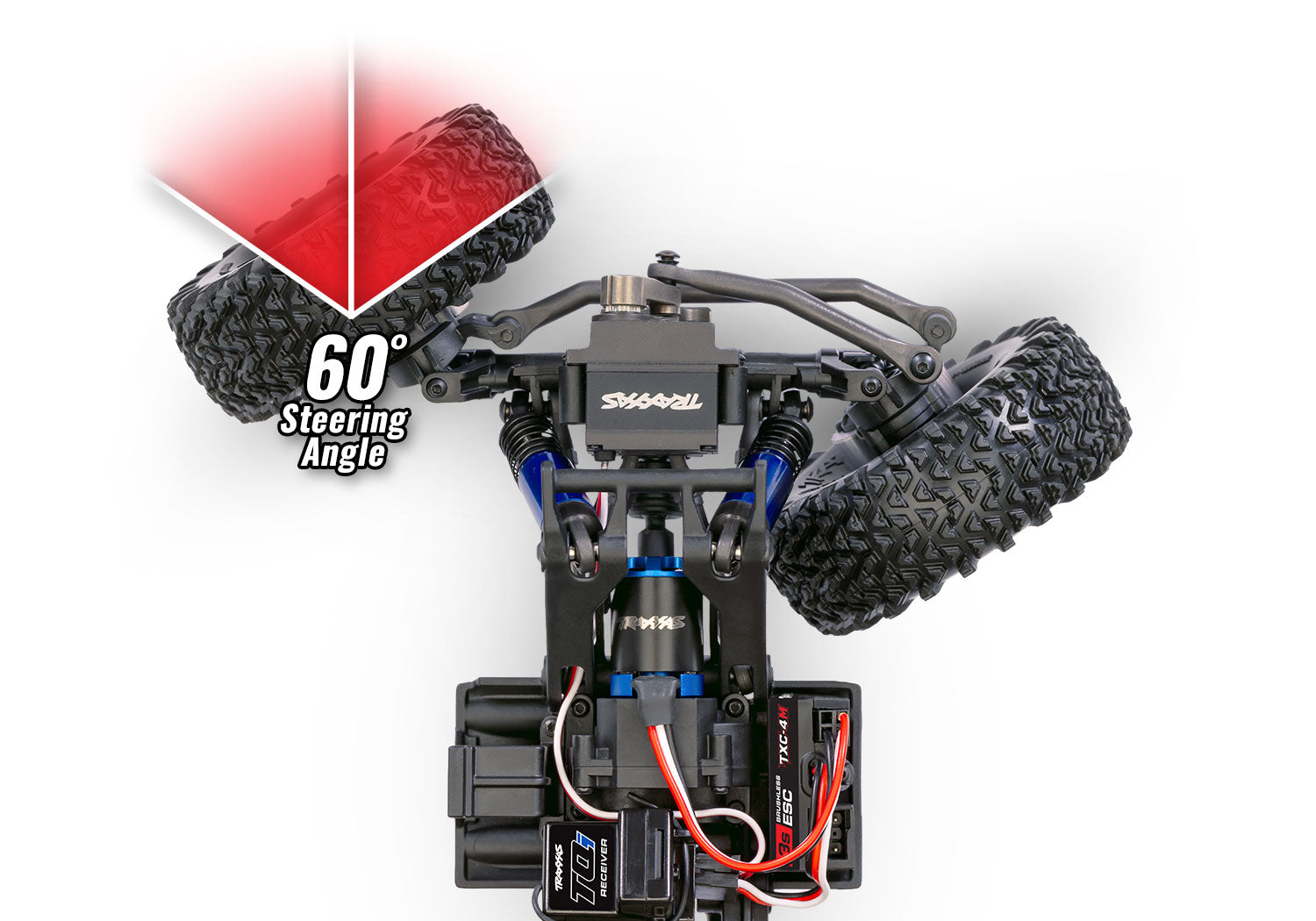

Steering
- Superior 60° steering angle

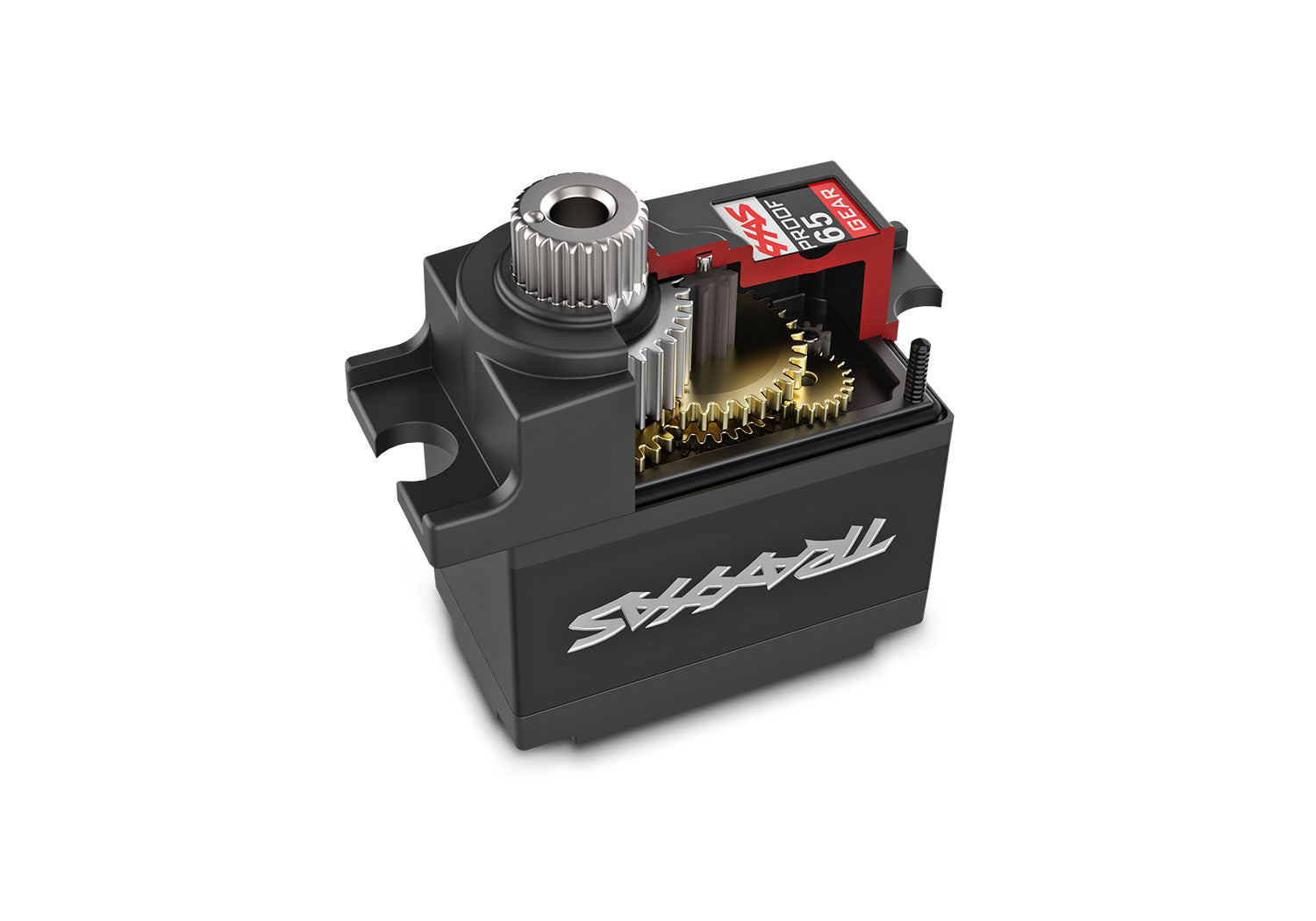

- Waterproof high-torque 2265 servo
- Full metal gears
- 75 oz-in torque
- Aluminum center section
- Horizonal servo mounting
- High-throw metal servo horn
- High-clearance drag link
- Direct steering (no servo saver)
-

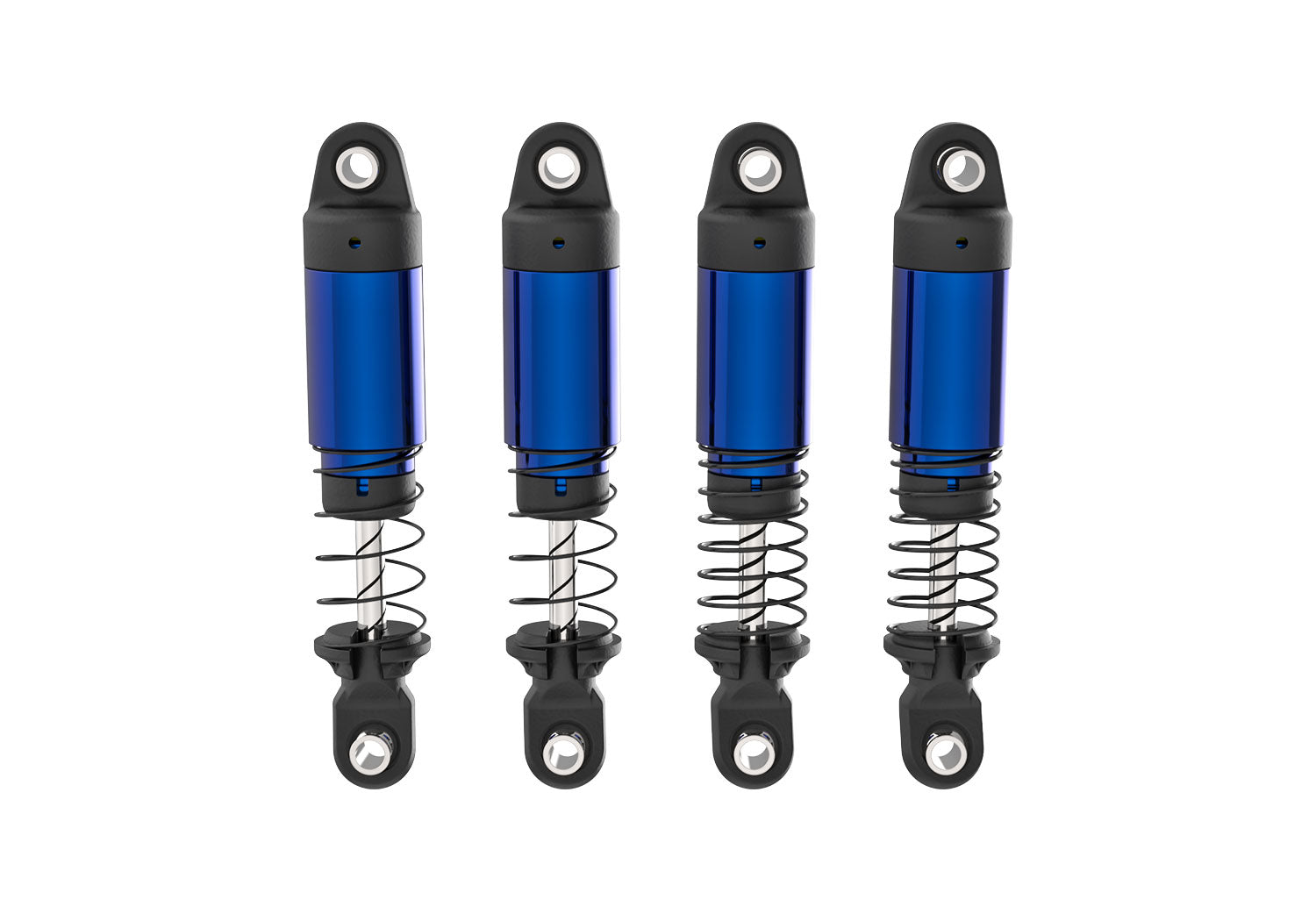

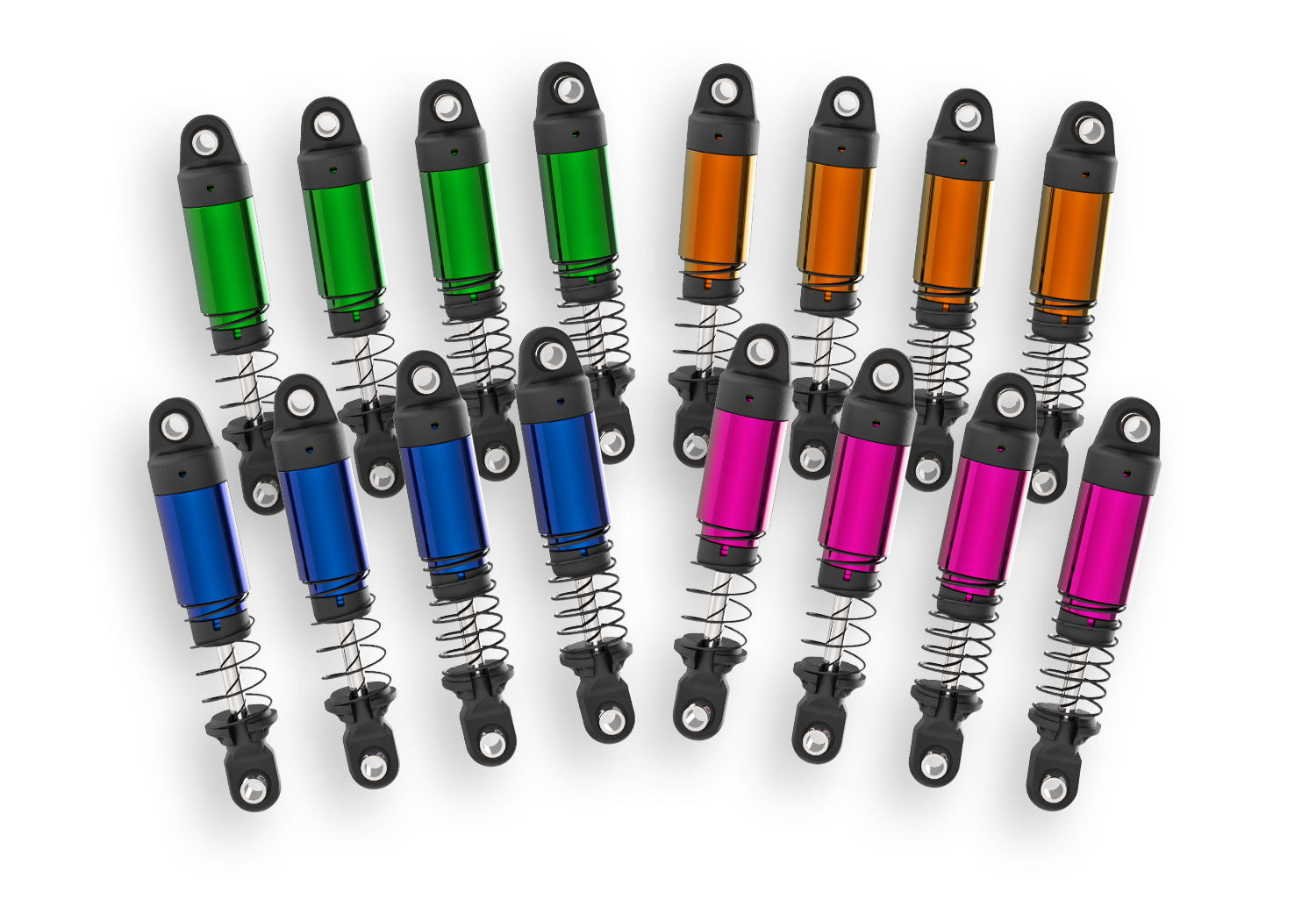

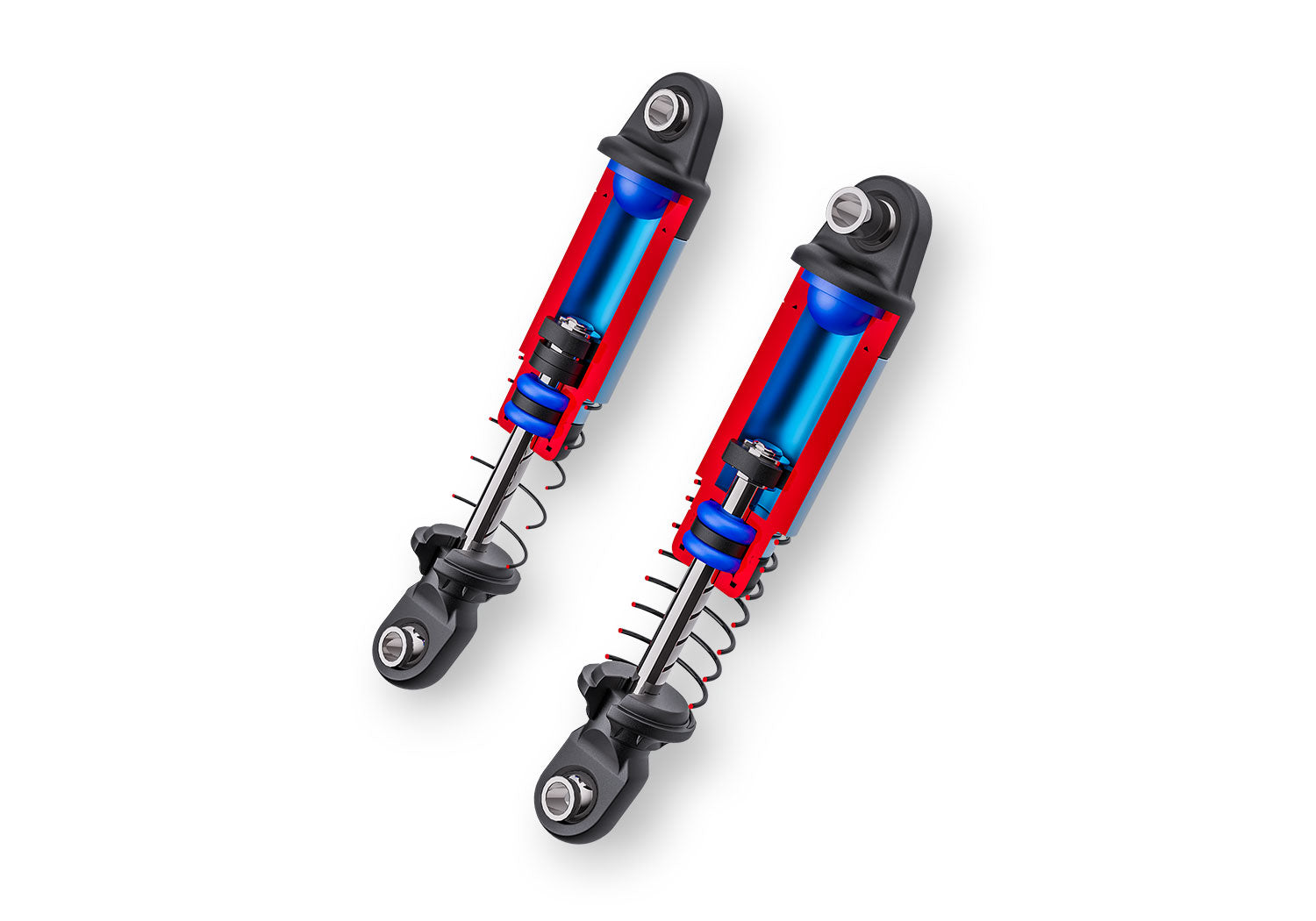

Oil-Filled Aluminum GTM Pro Shocks
- Aluminum bodies in bright anodized colors
- Realistic body-over-shock appearance
- O-ring sealed with smooth controlled damping
- Easily refreshed with available rebuild kits
-
Wheels and Tires
- 1.3” Licensed Method Race Wheels®
- 3-piece Beadlock design
- 7 mm wheel hex
- 1.3” x 2.8” Stone Claw™ tires
- High-grip rubber compound
- Aggressive stepped block tread design
- Wide directional sipes
- 1.3” Licensed Method Race Wheels®
-

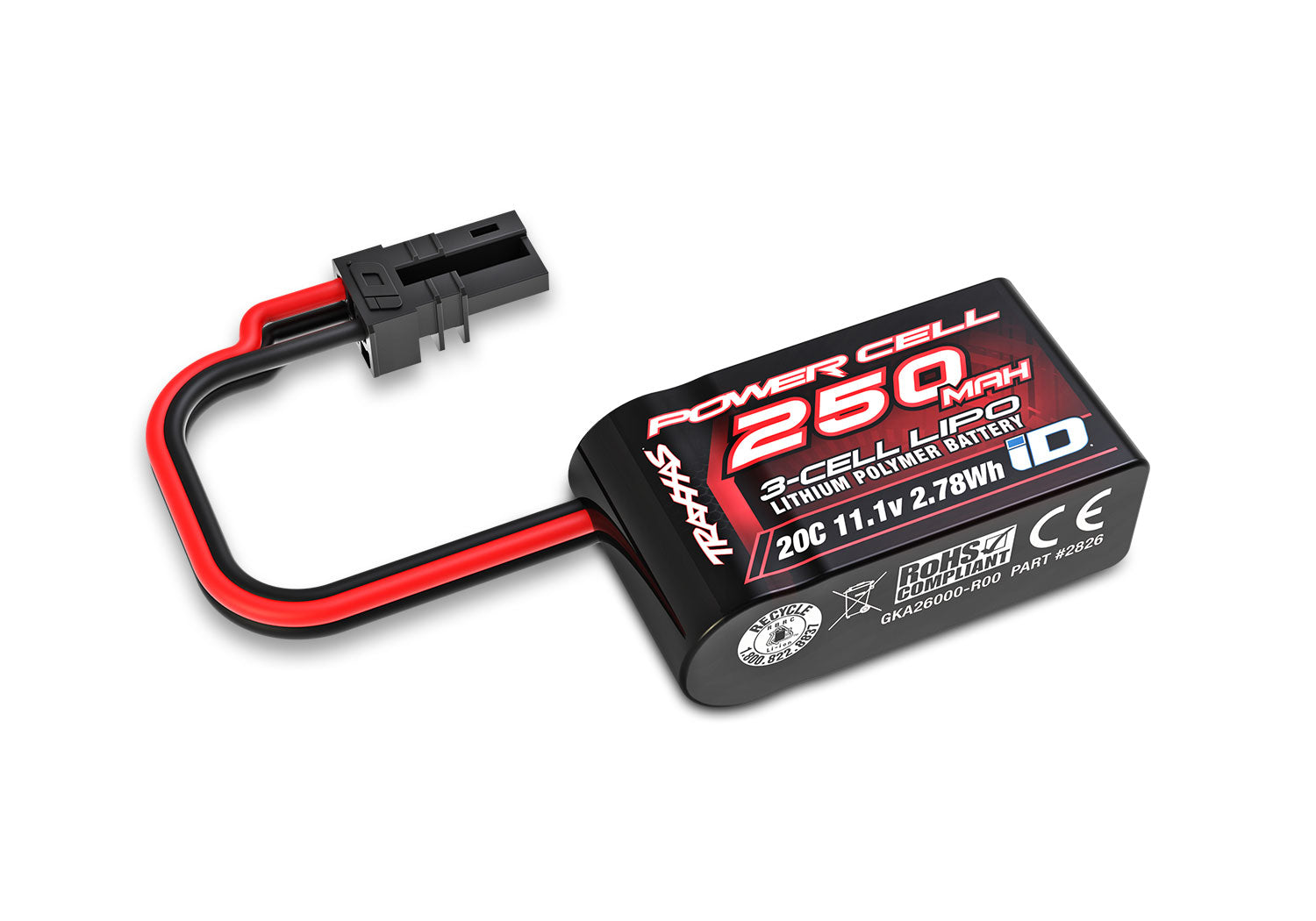

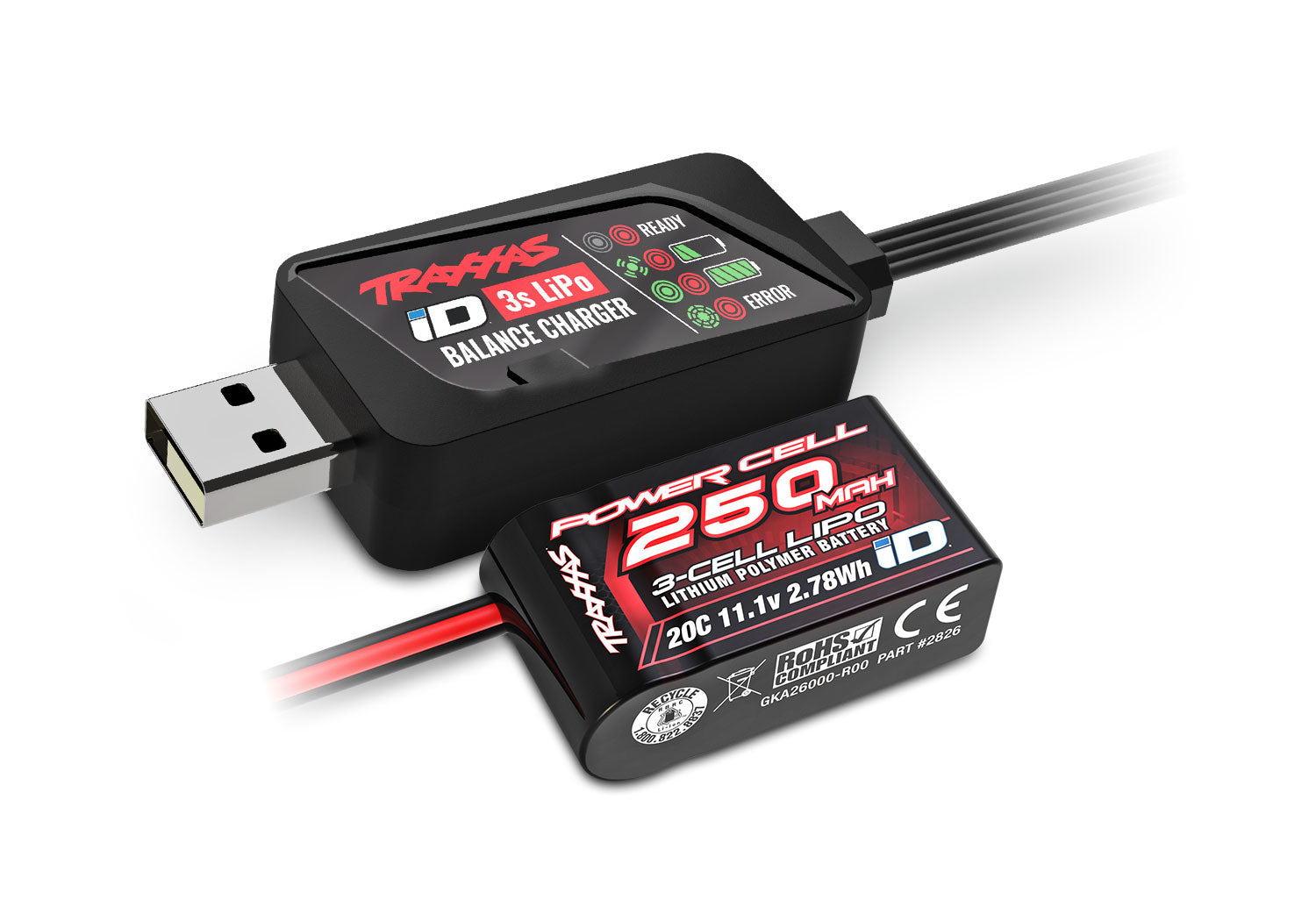

Battery and Charger Included
- 3 -cell LiPo battery with iD®
- 11.1 volts
- 250 mAh capacity

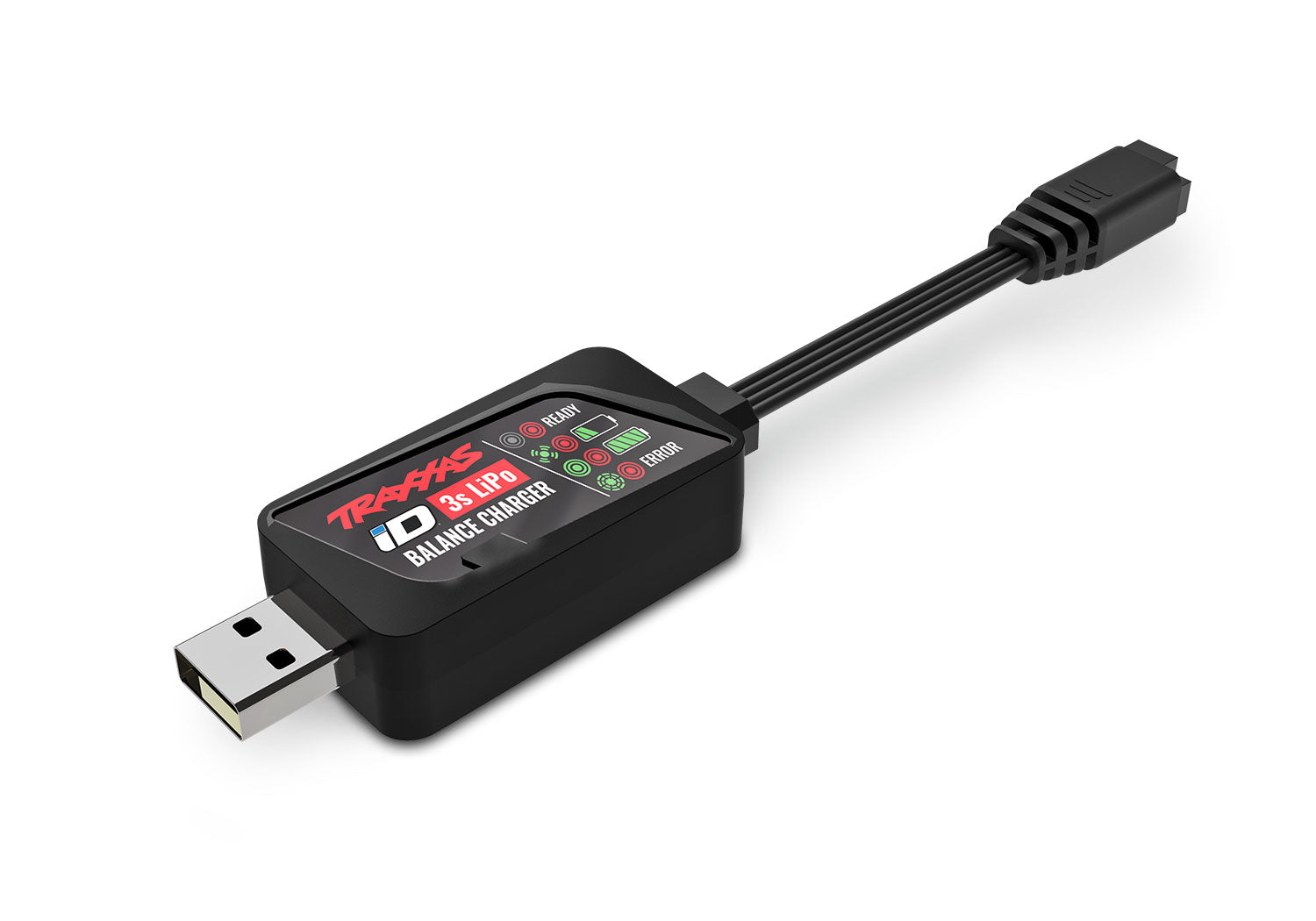

- USB-powered charger
- iD technology for faster, safer charging
- 3 -cell LiPo battery with iD®
- Sealed Ball Bearings
- Durable Hex Hardware

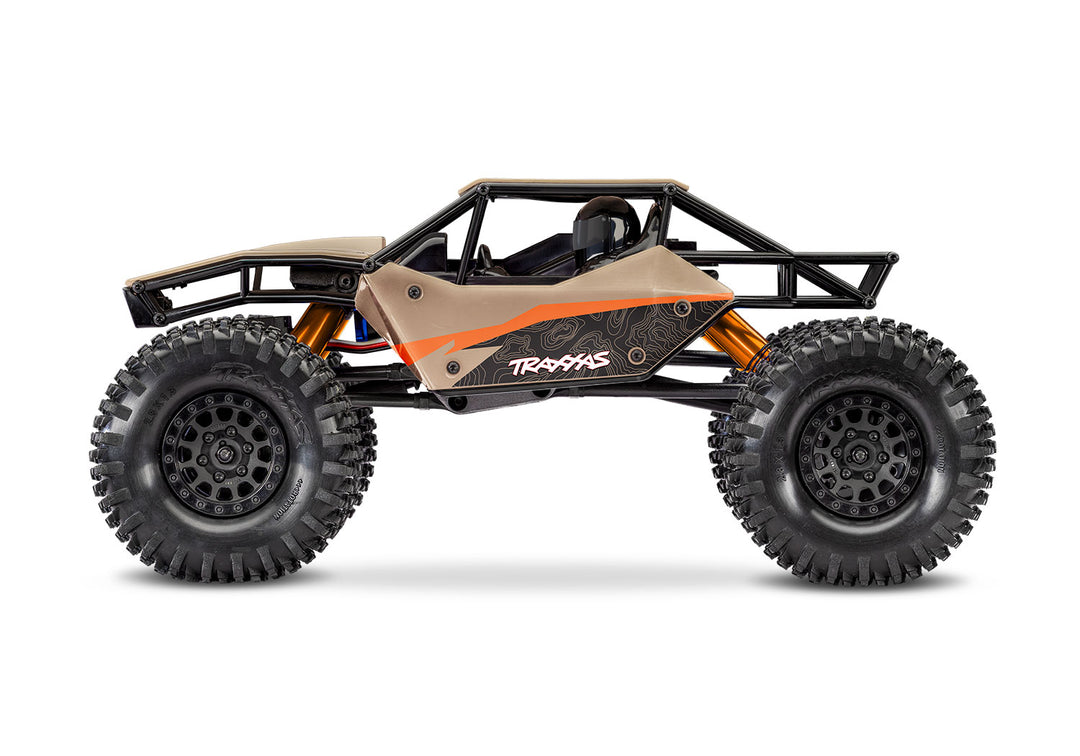

MODEL SPECS
| Name: | TXC-4M Extreme Crawler |
|---|---|
| Type: | Trail / Crawler |
| Skill Level: | 1 |
| Scale: | 1/18 |
| Weight: | 1.03 pounds (467 g) |
| Length: | 9.22 inches (234 mm) |
| Width: | 5.86 inches (149 mm) |
| Track: | 5.86 inches (149 mm) |
| Height: | 4.2 inches (107 mm) |
MOTOR SPECS
| Type: | 3s sensorless brushless |
|---|---|
| Kv rating: | 3350 |
| Weight: | 0.63 ounces (18 g) |
| Length: | 0.94 inches (24 mm) |
| Diameter: | 0.63 inches (16 mm) |
ESC SPECS
| Type: | 3s Brushless |
|---|---|
| Case Size: | 1.33 inches ( 34 mm) x 0.98 inches (25 mm) x 0.55 inches (14 mm) |
| Weight: | .92 ounces ( 26 g) |
| BEC: | 6 volts |
